Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

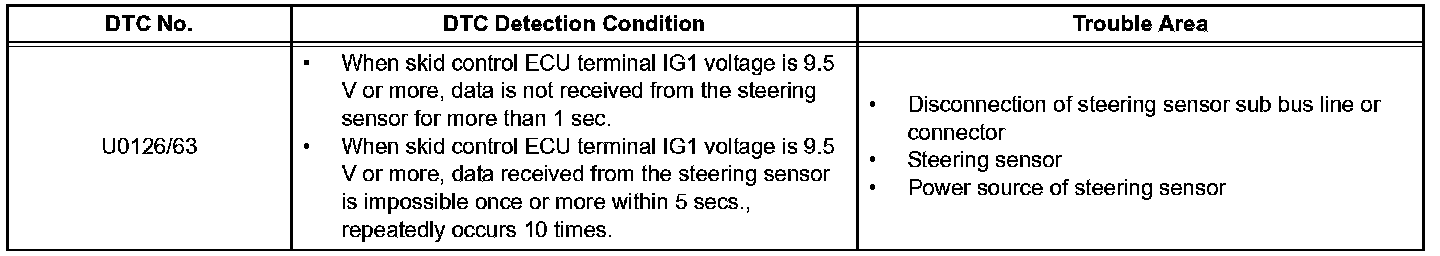

DTC Detection Condition:




DESCRIPTION

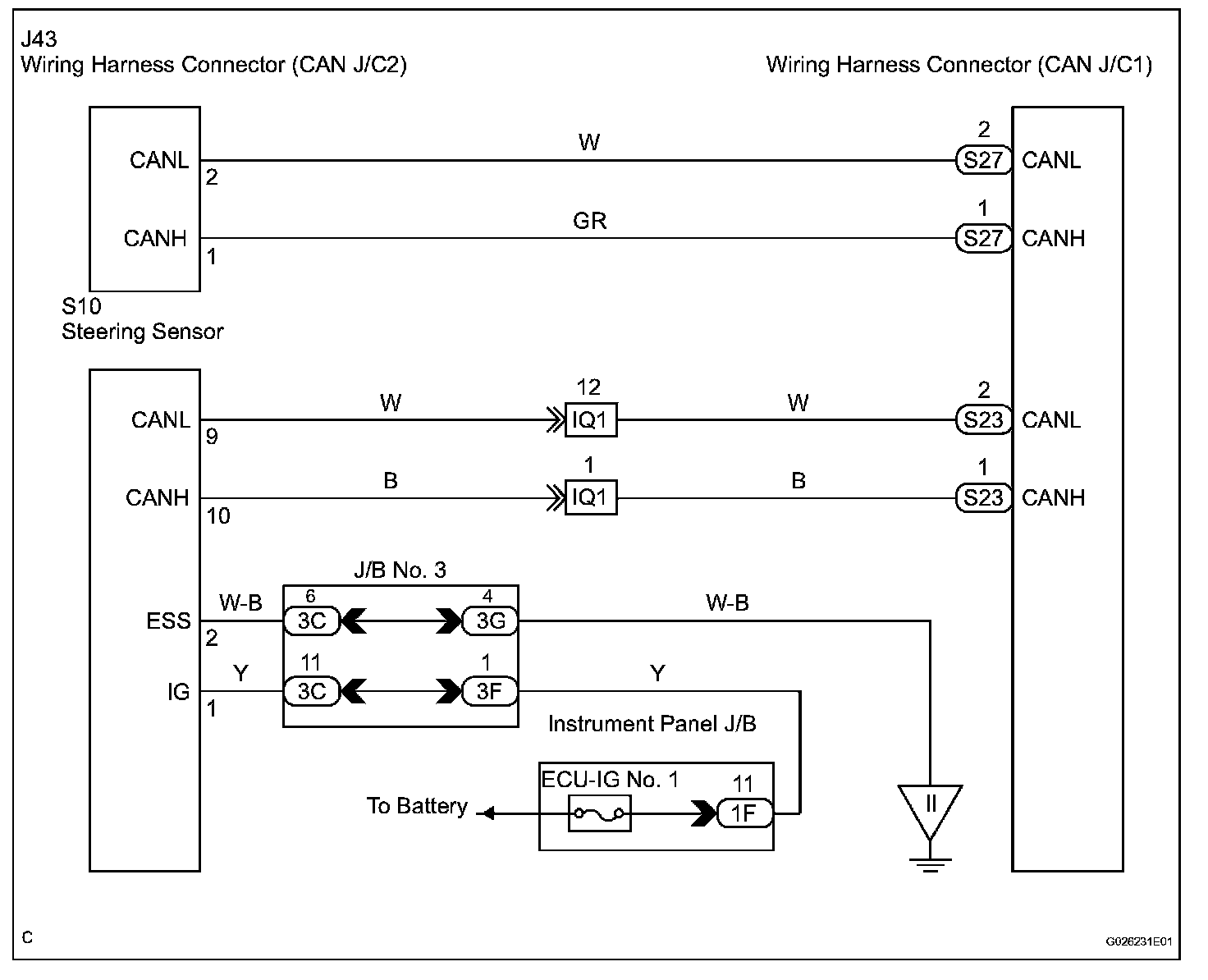

Wiring Diagram:

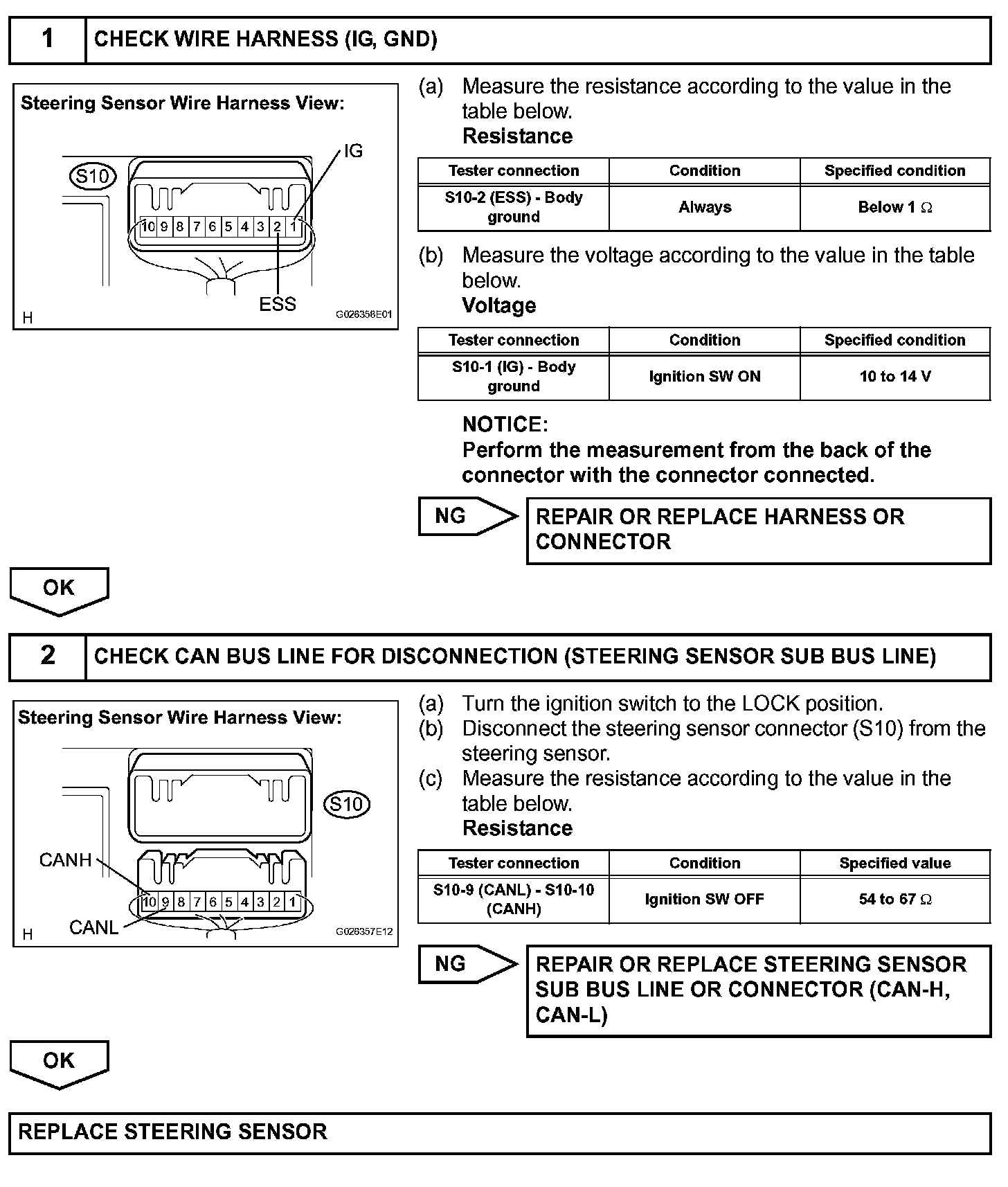

Step 1-2:




INSPECTION PROCEDURE
