Circuit Opening Relay


CIRCUIT OPENING RELAY

INSPECTION

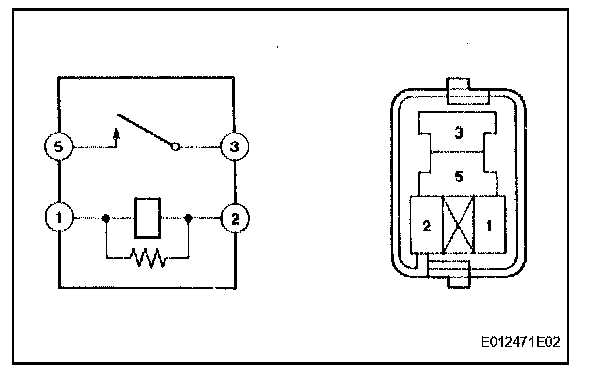

1. INSPECT CIRCUIT OPENING RELAY





a. Continuity inspection.

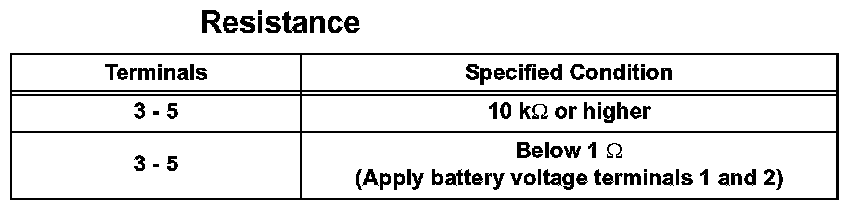

1. Using an ohmmeter, check for resistance between the terminals.
