Wiper Control Module: Testing and Inspection

ON-VEHICLE INSPECTION




1. INSPECT WIPER ECU

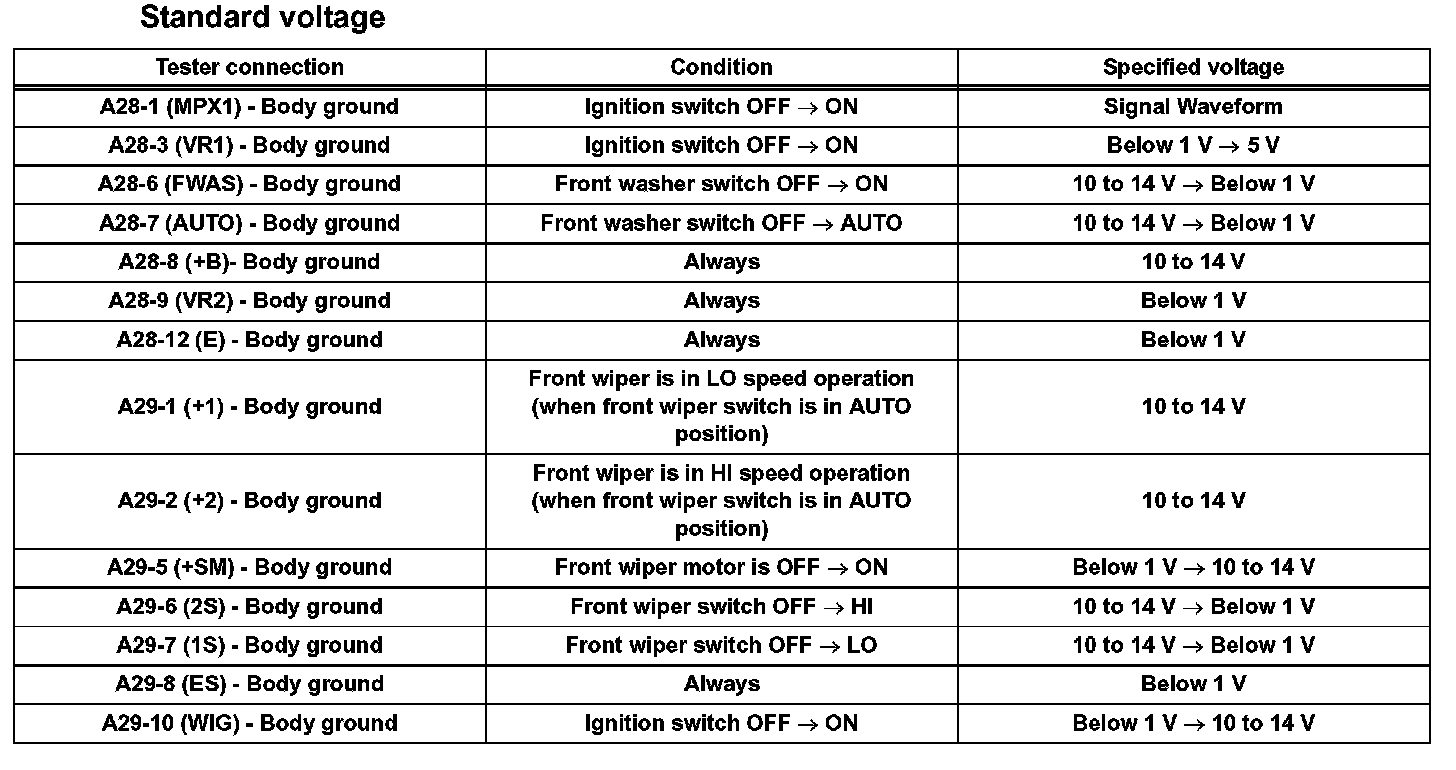

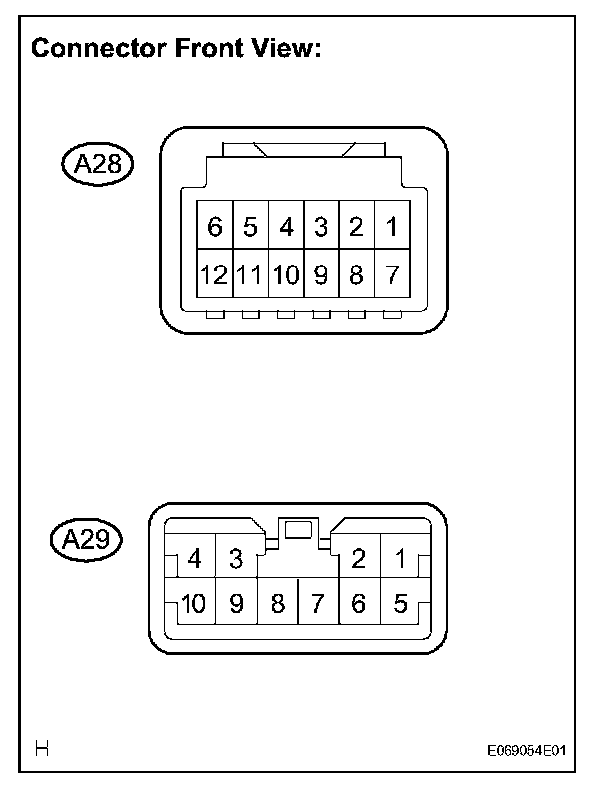

a. Measure the voltage according to the value(s) in the table.
