Cruise Control Main Switch: Installation

  1. INSTALL CRUISE CONTROL MAIN SWITCH
    1. Install the cruise control main switch with the 2 screws.

      Torque: 2.4 N*m (25 kgf*cm, 21 in.*lbf)

    2. Connect the connector.
  2. INSTALL HORN BUTTON ASSEMBLY (See  INSTALLATION  )
  3. INSTALL STEERING WHEEL NO. 3 COVER LOWER (See  DISPOSAL  )
  4. INSTALL STEERING WHEEL NO. 2 COVER LOWER (See  DISPOSAL  )
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. INSPECT SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )

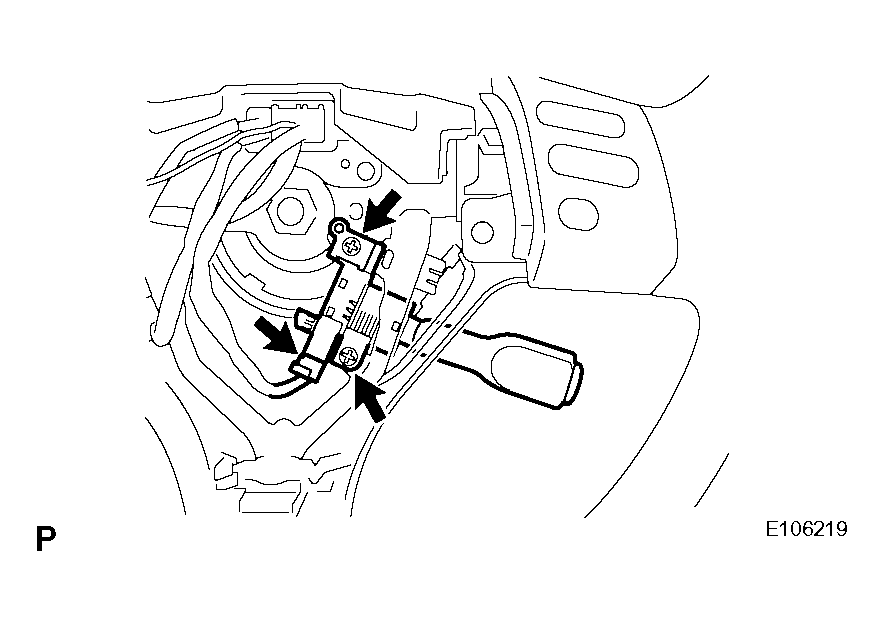

Fig 1: Installing Cruise Control Main Switch With Screws
G04092038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
