Laser Sensor: Components

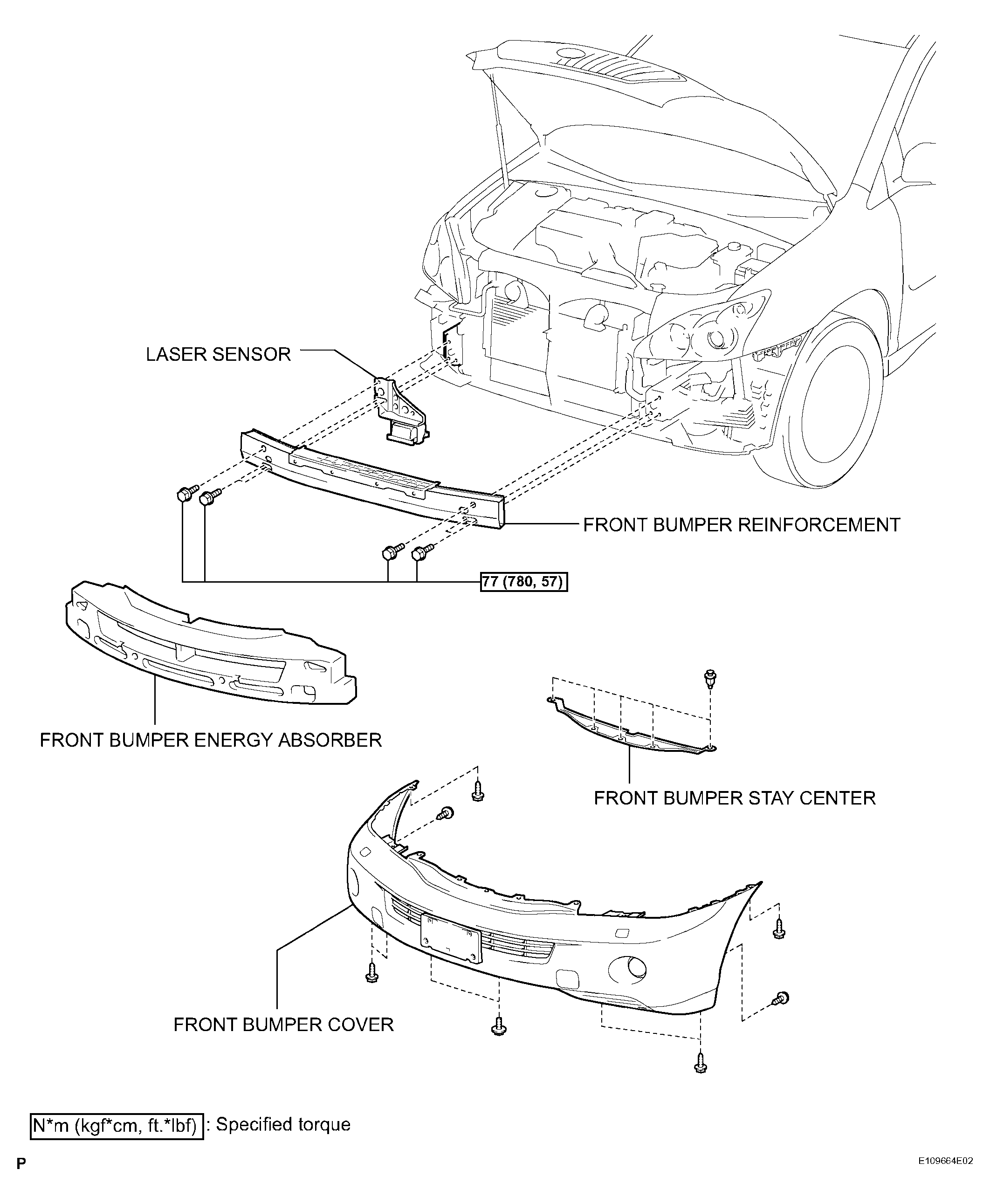

Fig 1: Laser Sensor Replacement Components With Torque Specifications
G04092041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
