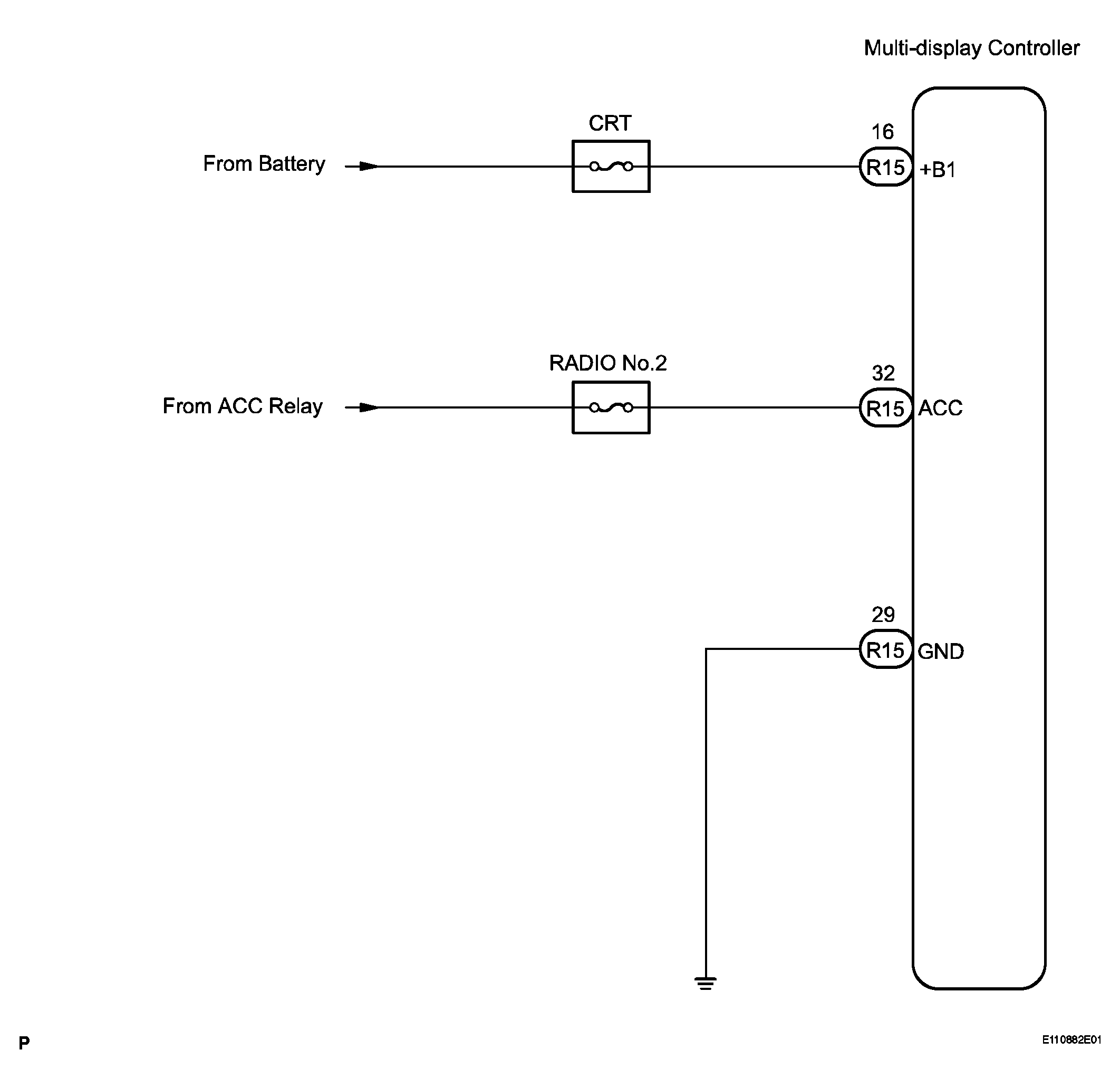

Multi-display Controller Power Source Circuit: Wiring Diagram

1. Disconnect the multi-display controller R15 connector.
2. Measure the resistance according to the value in the table below.

   Standard resistance

   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   GND - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

Standard voltage

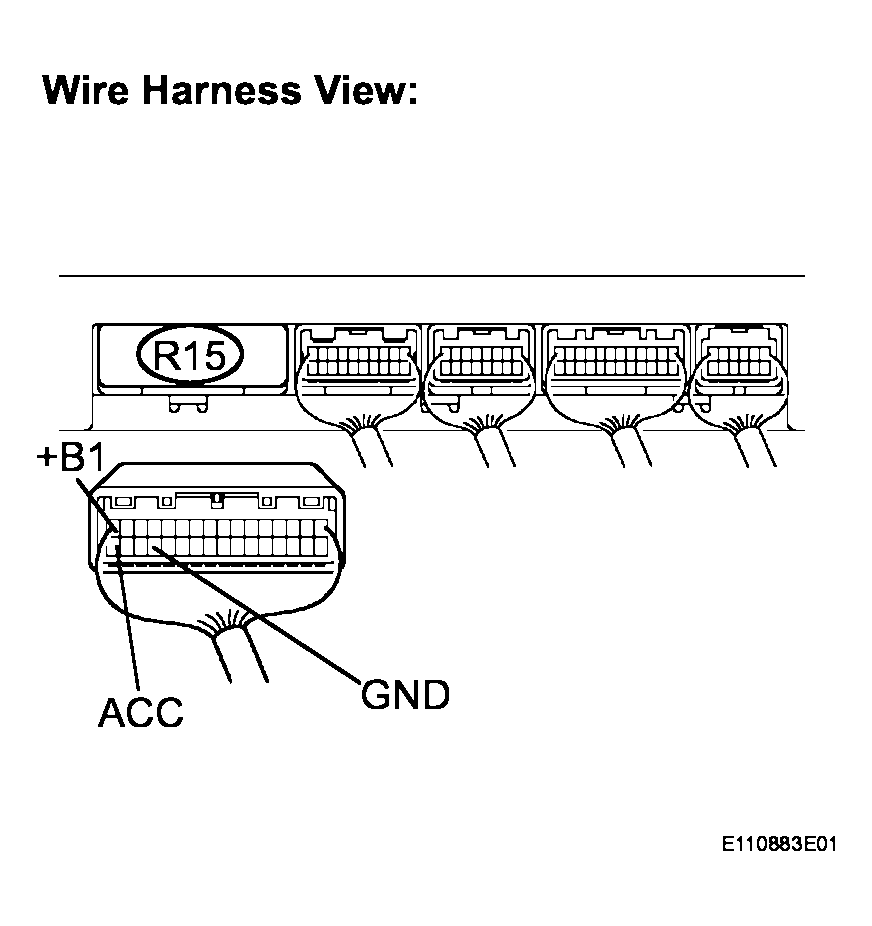

Fig 2: Disconnecting Multi-Display Controller R15 Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: RETURN TO THE ORIGINAL INSPECTION FLOW BECAUSE THE CHECK RESULT IS NORMAL
