Display Check Mode

HINT:

• This mode checks the color display on the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE (See  DTC CHECK/CLEAR   ).
2. DISPLAY CHECK
   1. Select "Display Check" from the "Diagnosis MENU" screen.

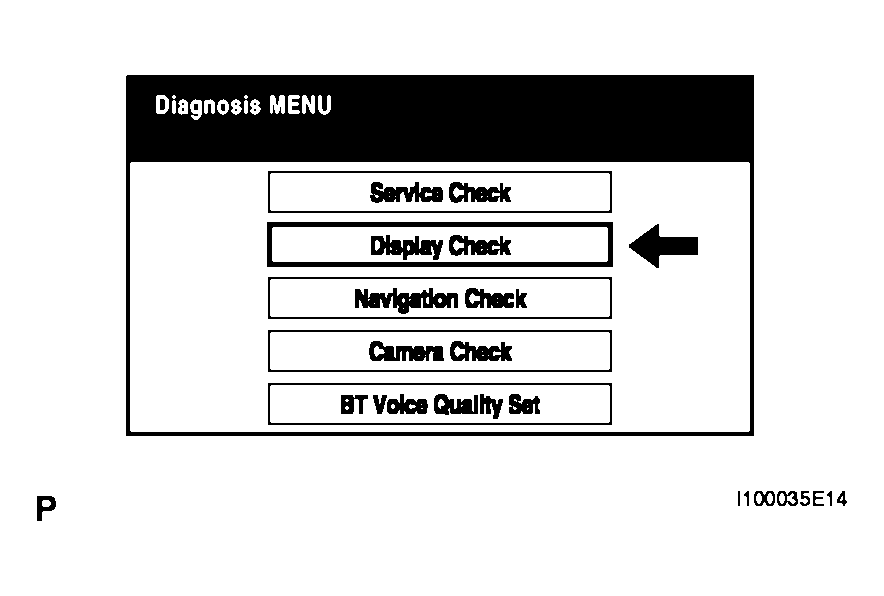

   Fig 1: Multi-Display Screen - Diagnosis MENU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. COLOR BAR CHECK
   1. Select "Color Bar Check" from the "Display Check" screen.

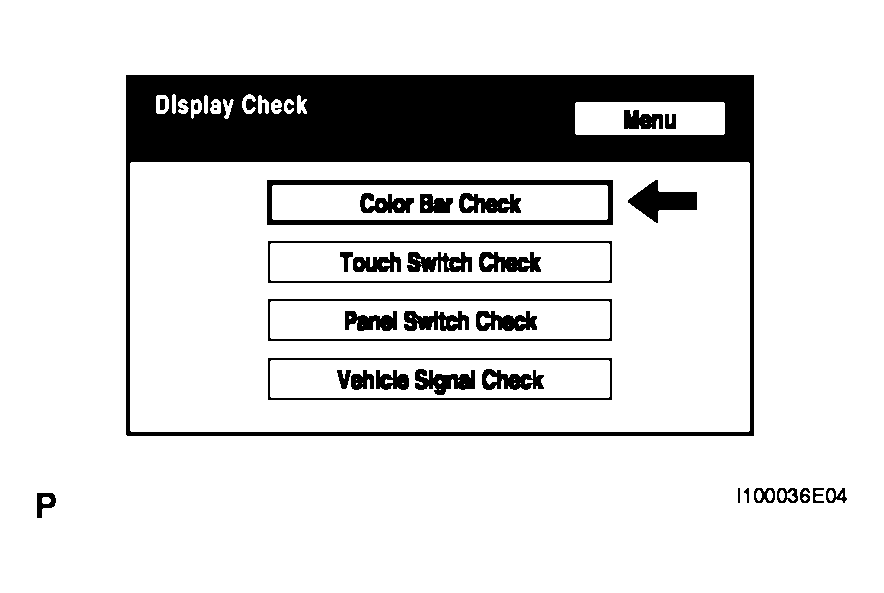

      Fig 2: Multi-Display Screen - Display Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a color bar from the "Color Bar Check Mode" screen.

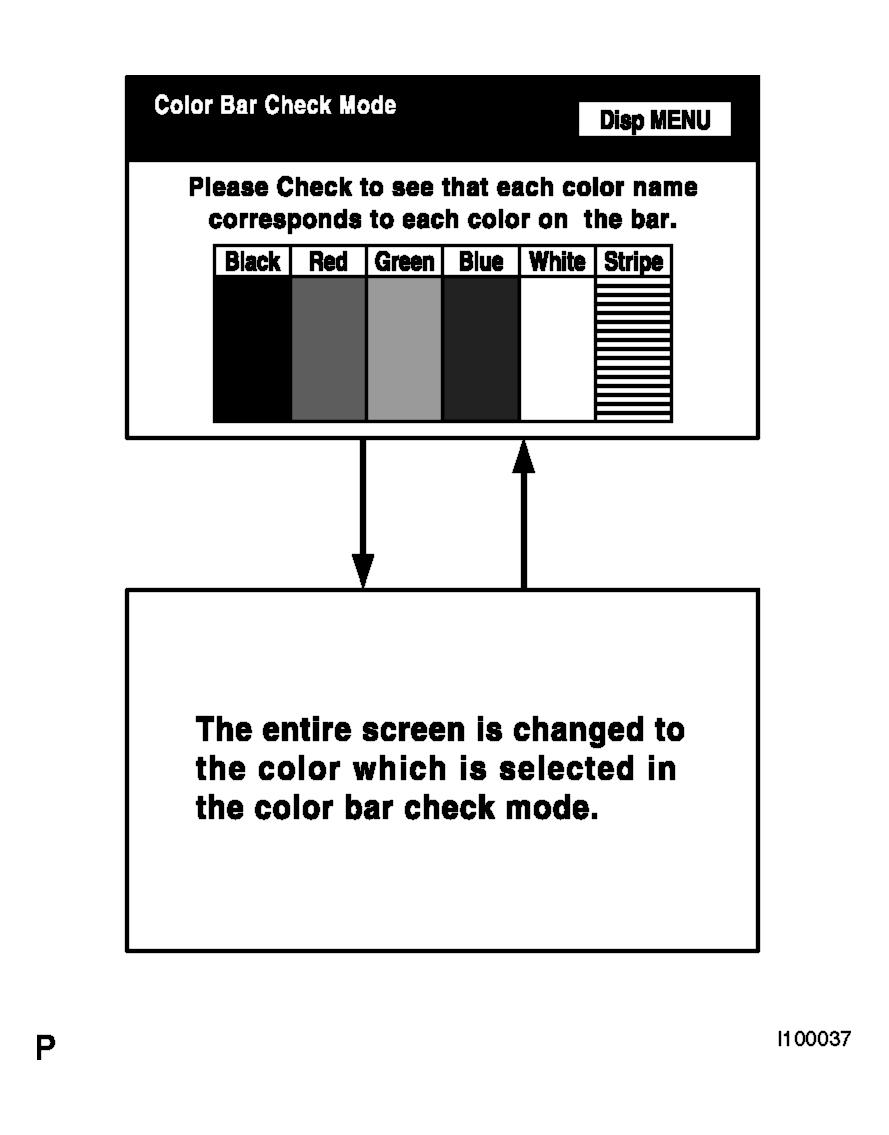

      Fig 3: Multi-Display Screen - Color Bar Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • The entire screen turns to the color or stripe selected.
      • Touching the display will return to the "Color Bar Check" screen.
4. TOUCH SWITCH CHECK
   1. Select "Touch Switch Check" from the "Display Check" screen.

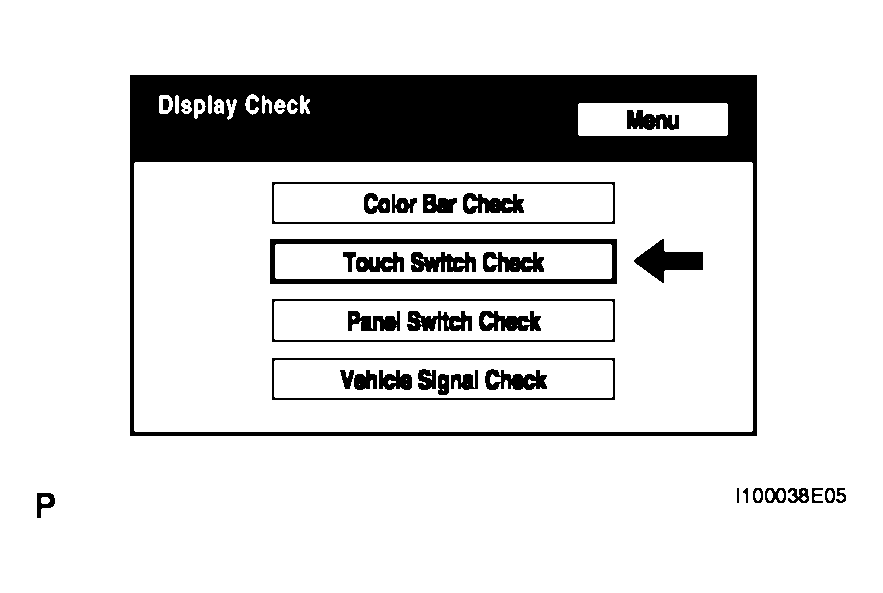

      Fig 4: Multi-Display Screen - Display Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

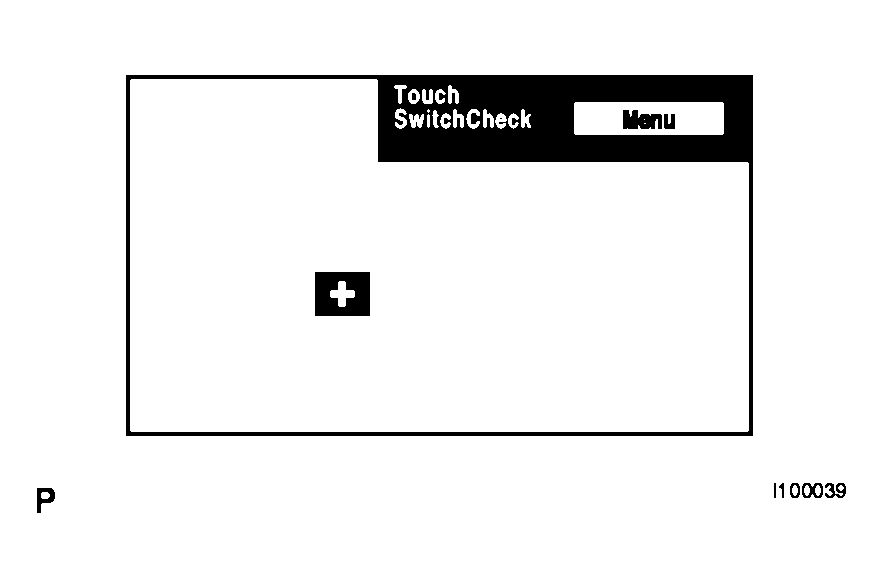

      Fig 5: Multi-Display Screen - Touch Switch Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • A "+" mark is displayed where the display is touched.
      • The "+" mark remains on the display even after the finger is removed.
5. PANEL SWITCH CHECK
   1. Select "Panel Switch Check" from the "Display Check" screen.

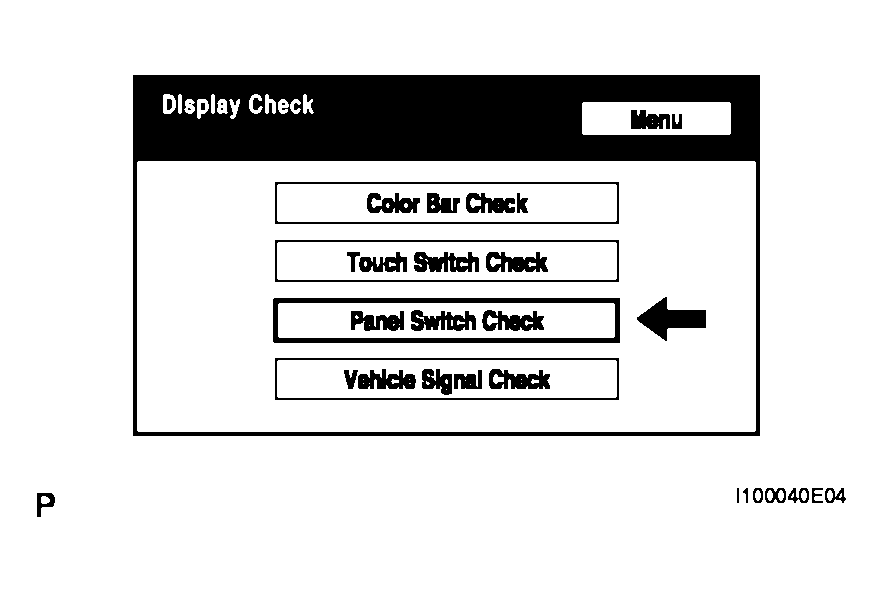

      Fig 6: Multi-Display Screen - Display Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Operate each switch and check that the switch name and condition are correctly displayed.

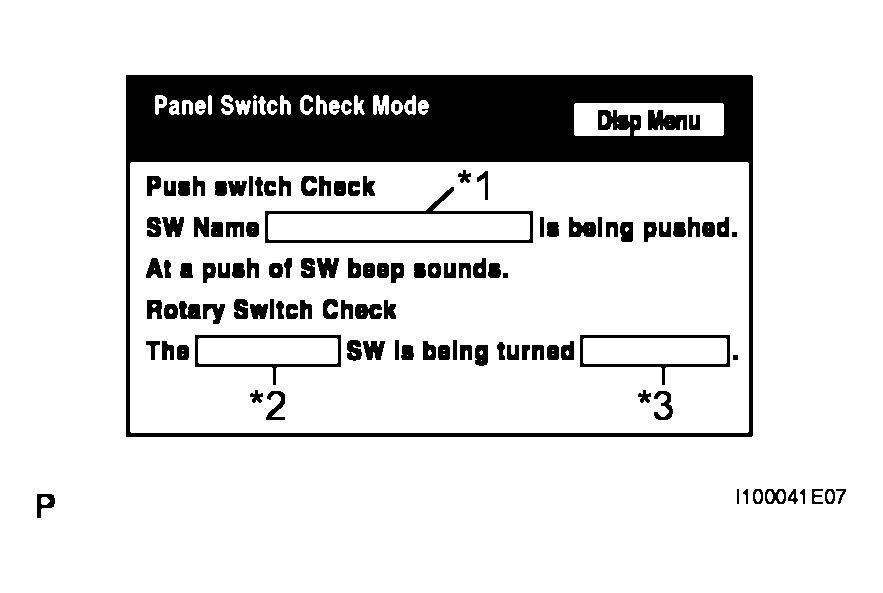

   Fig 7: Multi-Display Screen - Panel Switch Check Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   DISPLAY CONTENTS REFERENCE



   Display	Contents
   Push switch name/*1	Name of the pressed switch is displayed. If more than one switch is pressed, "MULTIPLE" is displayed.
   Rotary switch name/*2	Name of the rotary switch is displayed.
   Rotary switch direction/*3	Direction of the rotary switch is displayed.

6. VEHICLE SIGNAL CHECK
   1. Select "Vehicle Signal Check" from the "Display Check" screen.

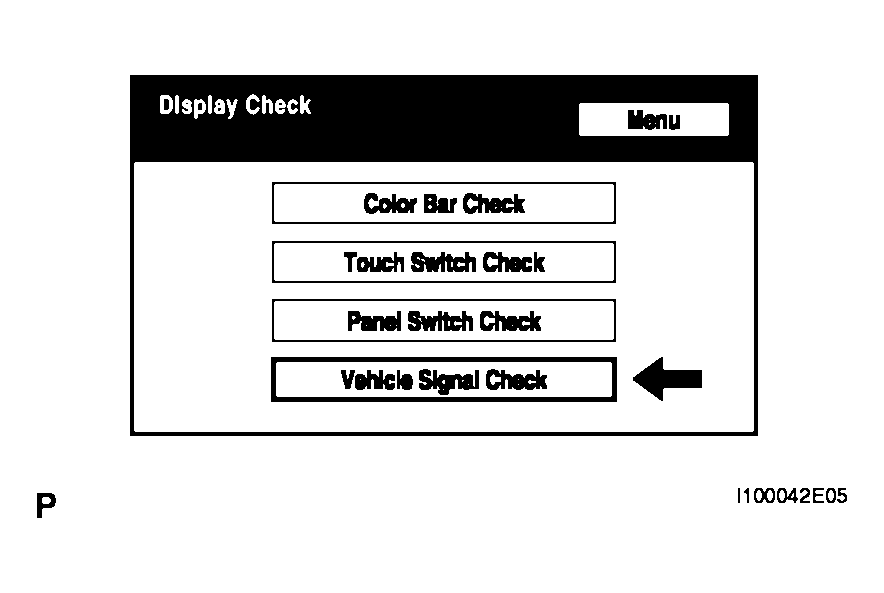

      Fig 8: Multi-Display Screen - Display Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

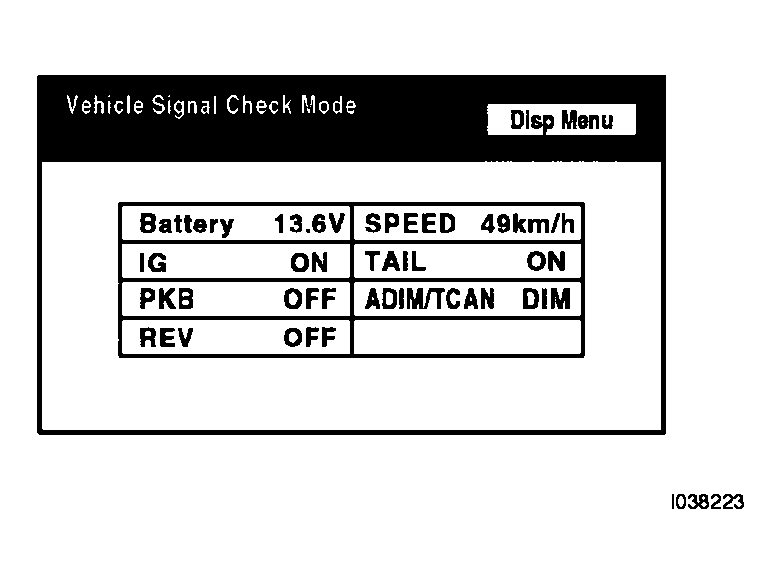

      Fig 9: Multi-Display Screen - Vehicle Signal Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Only conditions having inputs are displayed.
      • This screen is updated once per second when input signals to the vehicle are changed.
