Power Point Socket: Installation

INSTALL POWER POINT SOCKET COVER
1. Engage the 2 claws and install the power point socket cover.

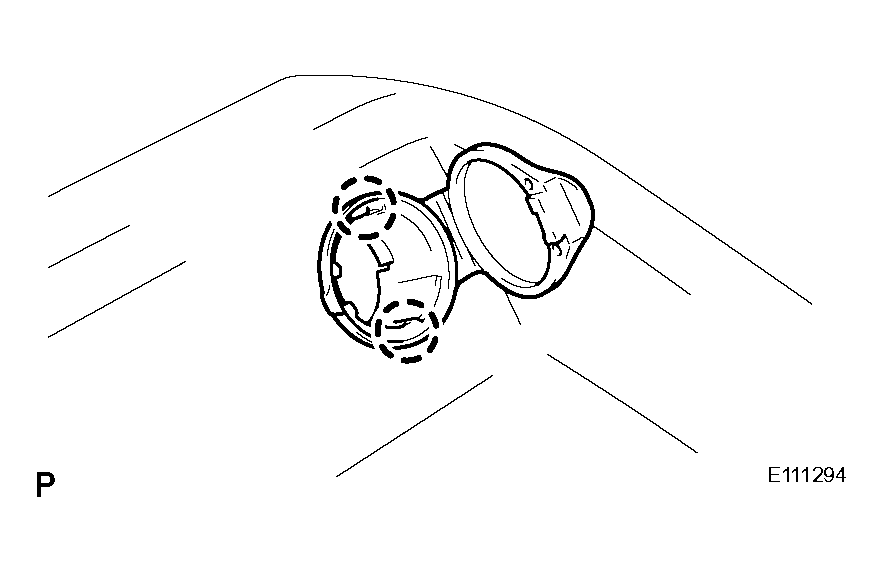

Fig 1: Installing Power Point Socket Cover Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER POINT SOCKET
1. Place the power point socket with the notch on the power point socket cover, and push in the power point socket as hard as possible to install it.

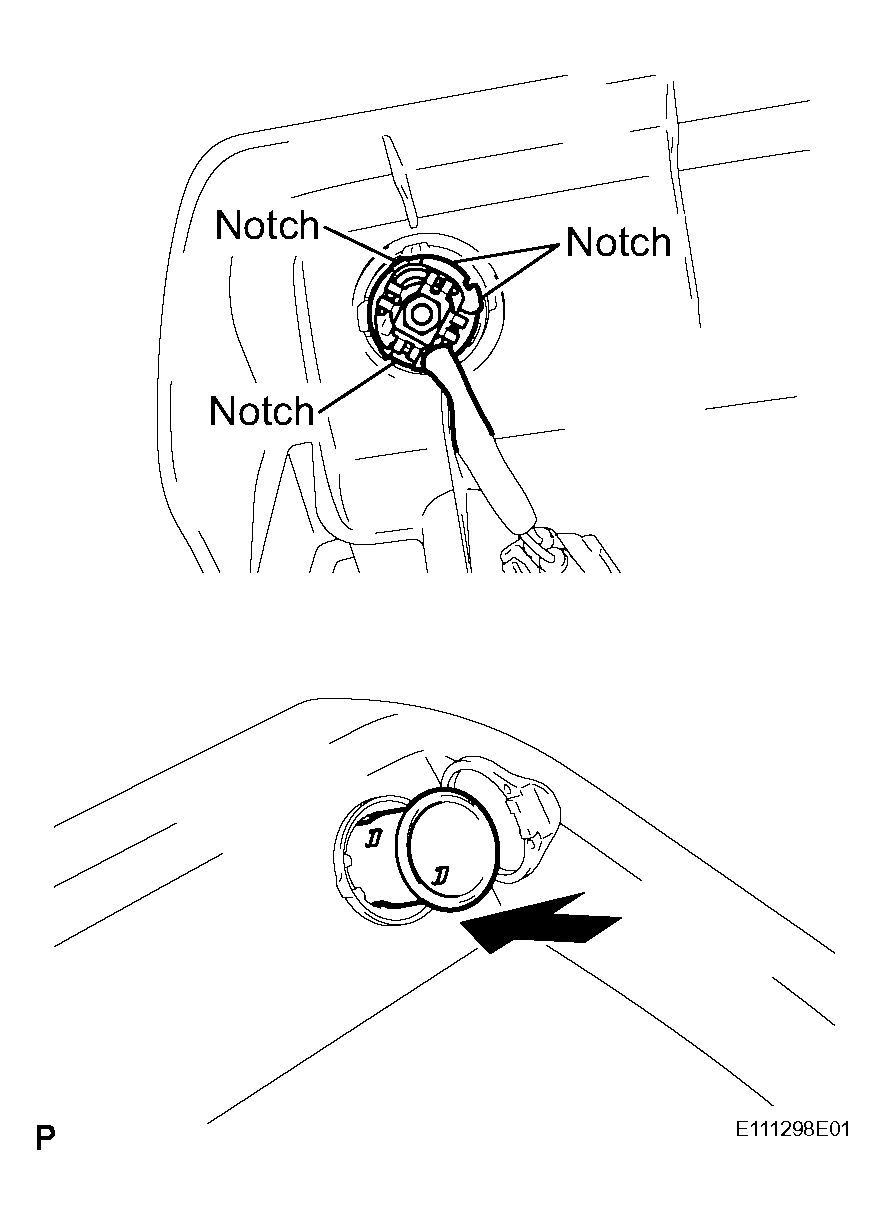

  Fig 2: Installing Power Point Socket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE COVER LOWER
INSTALL REAR CONSOLE BOX (See INSTALLATION )
INSTALL NO. 2 CONSOLE BOX HOLE COVER (See INSTALLATION )
INSTALL CONSOLE BOX HOLE COVER (See INSTALLATION )
