Rear Console Box: Installation

1. Connect each of the clamp and the connector.

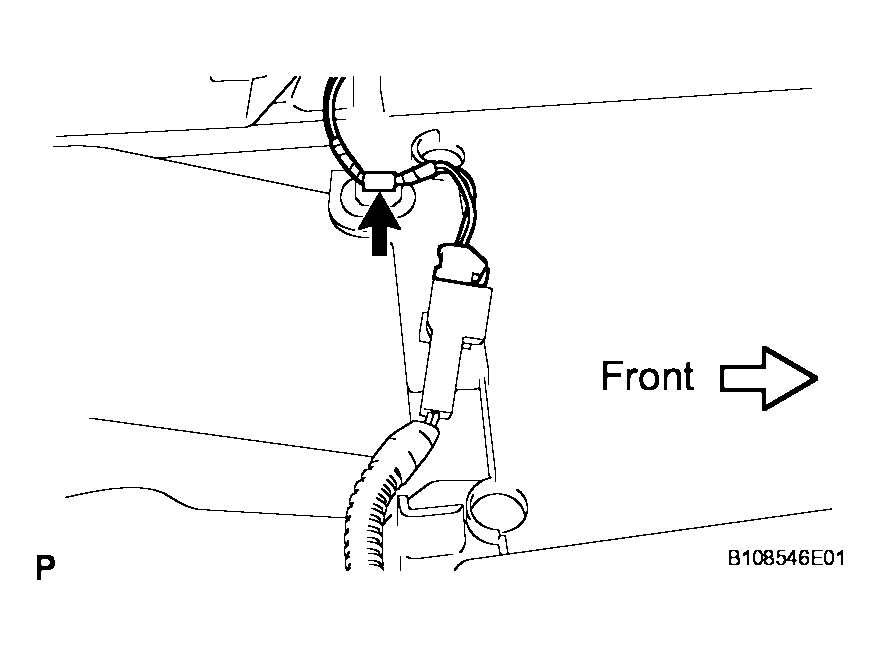

   Fig 1: Connecting Clamp And Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Keeping the rear console box pulled in the rear direction of the vehicle, install the 6 bolts to the left and right sides.

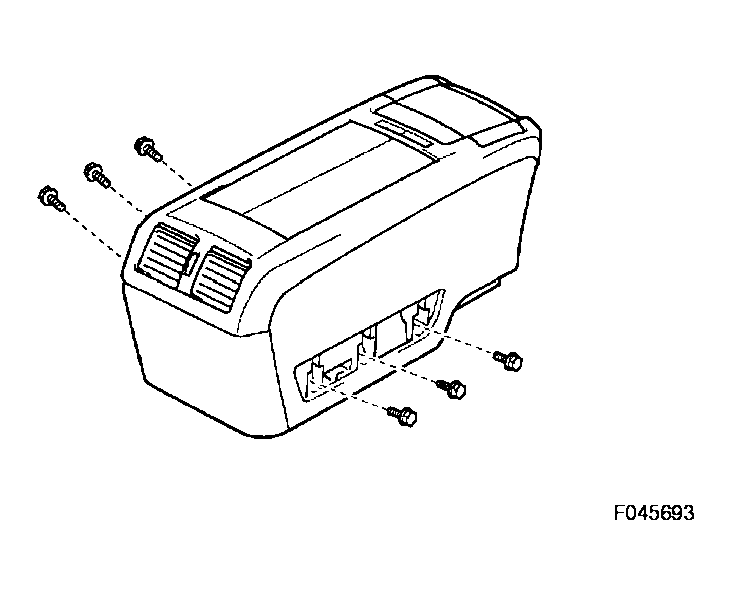

   Fig 2: Installing Rear Console Box Left And Right Sides Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the console box lock control cable assembly and install the rear console box.

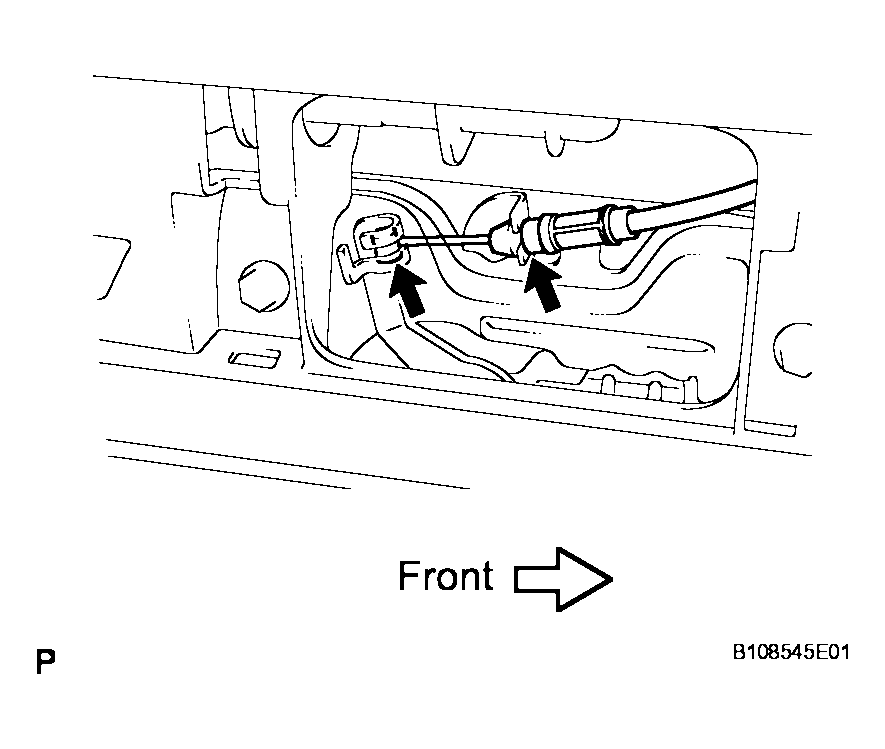

Fig 3: Connecting Console Box Lock Control Cable Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Slide the front seat assemblies RH and LH forward.
2. Slide the rear console box fully to the back end and install the console box hole cover.

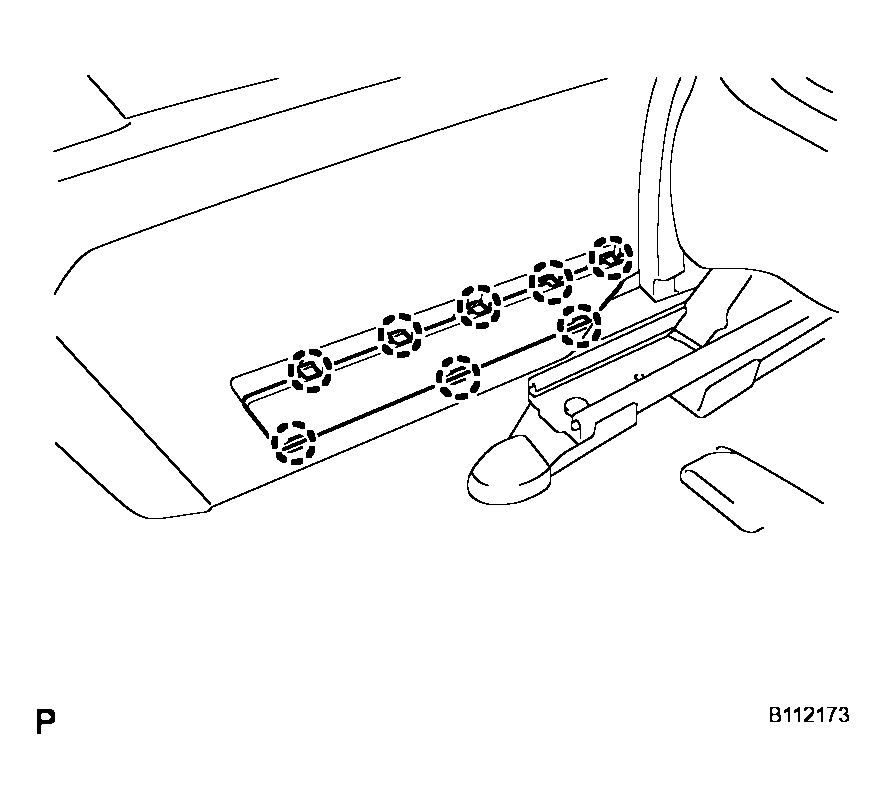

Fig 4: Installing Console Box No. 2 Hole Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the console box No.2 hole cover and the console box hole cover.
