Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RADIO RECEIVER
    1. Disconnect the radio receiver connector R2 or R1.
    2. Measure the resistance according to the value in STANDARD RESISTANCE  .

      Standard resistance

      STANDARD RESISTANCE

      Tester Connection Condition Specified Condition
      GND - Body ground Always Below 1
    3. Measure the voltage according to the values in STANDARD VOLTAGE  .

      Standard voltage

      STANDARD VOLTAGE

      Tester Connection Condition Specified Condition
      +B - GND ((1)) Always 10 to 14 V
      B - GND ((2)) Always 10 to 14 V
      ACC - GND Ignition SW ACC 10 to 14 V
      (1) 6 Speaker System
      (2) 10 Speaker System

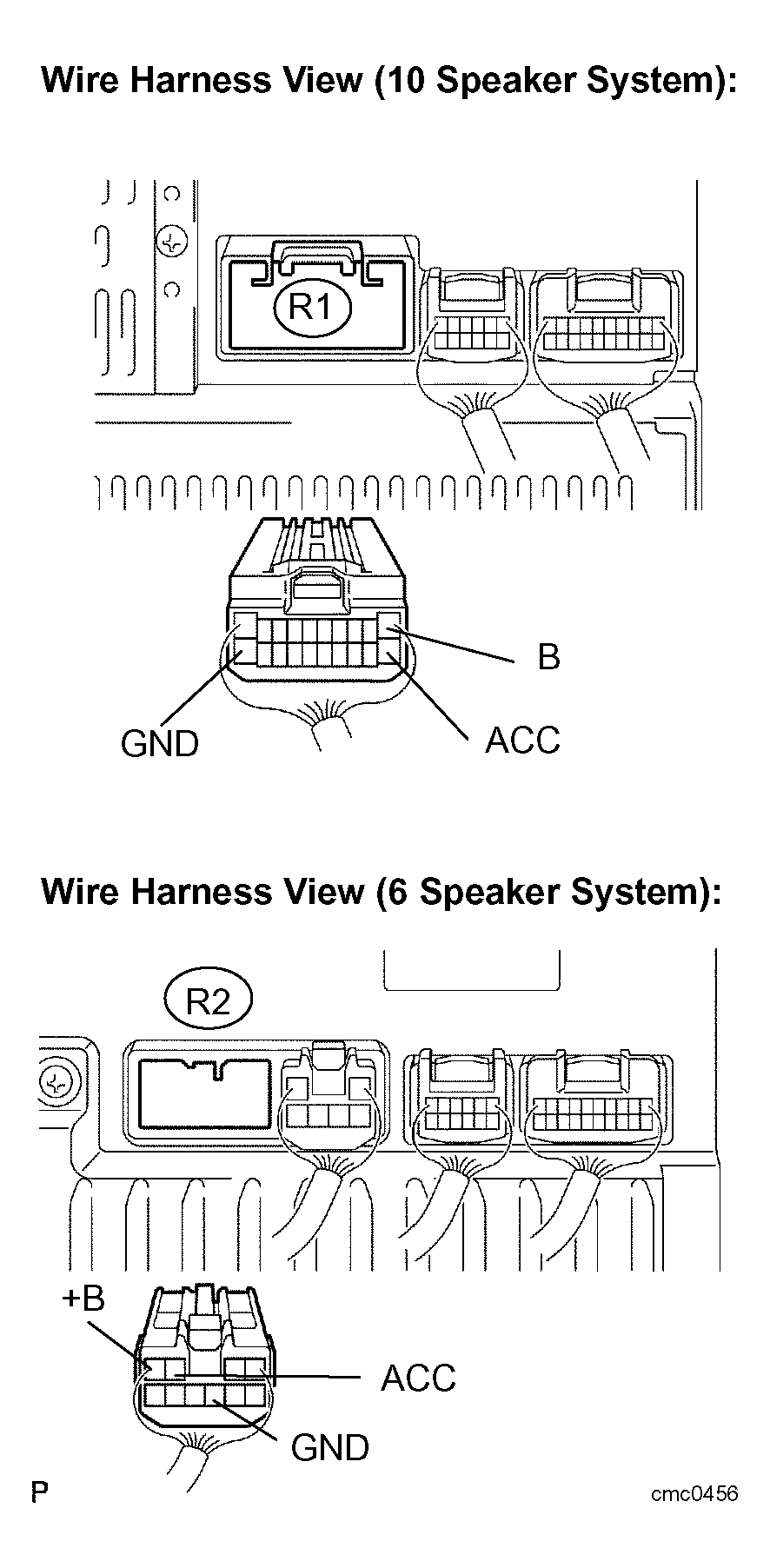

      Fig 1: Disconnecting Radio Receiver Connector R2 Or R1
      G04337733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: RETURN TO THE ORIGINAL INSPECTION BECAUSE THE CHECK RESULT IS NORMAL
