Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Be sure to read CIRCUIT DESCRIPTION before performing the following procedures.
  1. CHECK RADIO AND NAVIGATION ASSEMBLY POWER SOURCE CIRCUIT

    Refer to the radio and navigation assembly power source circuit (See RADIO AND NAVIGATION ASSEMBLY POWER SOURCE CIRCUIT  ).

    If the power source circuit is operating normally, proceed to the next step.

  2. INSPECT RADIO AND NAVIGATION ASSEMBLY
    1. Disconnect the radio and navigation assembly connectors.
    2. Measure the resistance according to the value(s) in TESTER CONNECTION SPECIFIED CONDITION .

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      ATX+ (R12-5) - ATX- (R12-15) Always 60 to 80
      TXM+ (R11-9) - TXM- (R11-10) Always 60 to 80

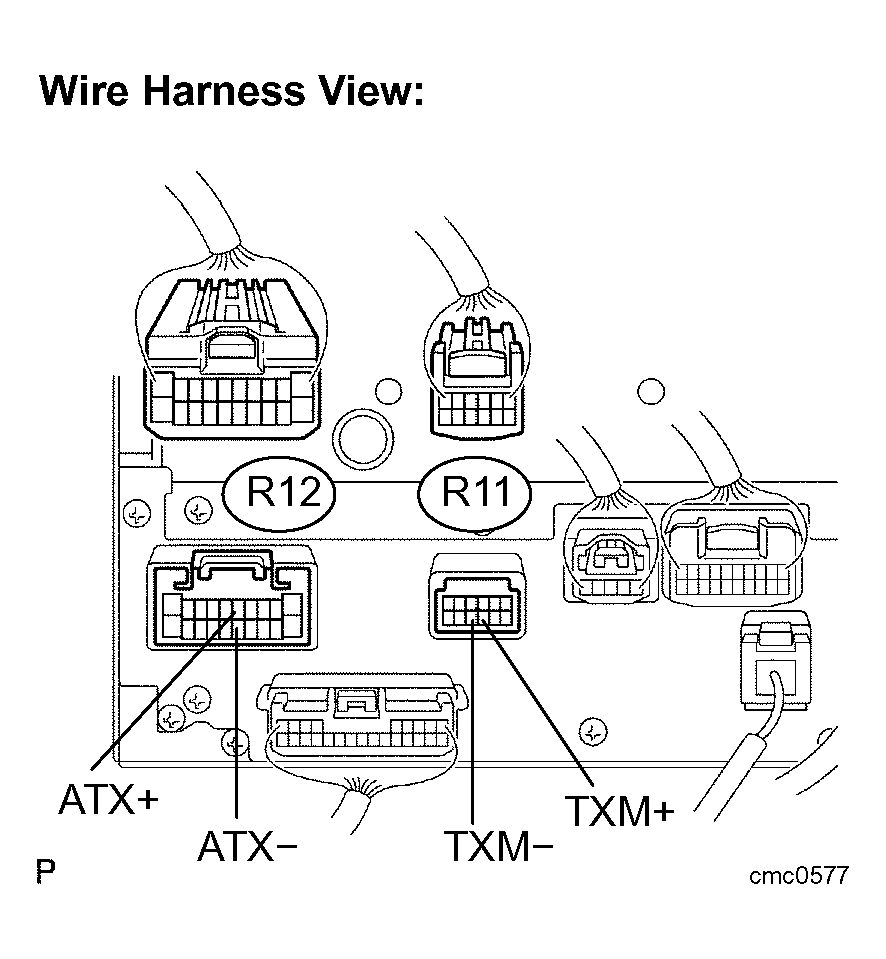

      Fig 1: Inspecting Radio & Navigation Assembly
      G04337829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE RADIO AND NAVIGATION ASSEMBLY

    OK: GO TO NEXT STEP.

  3. IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE
    1. Enter the diagnostic mode.
    2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
    3. Identify the component which has stored this code.

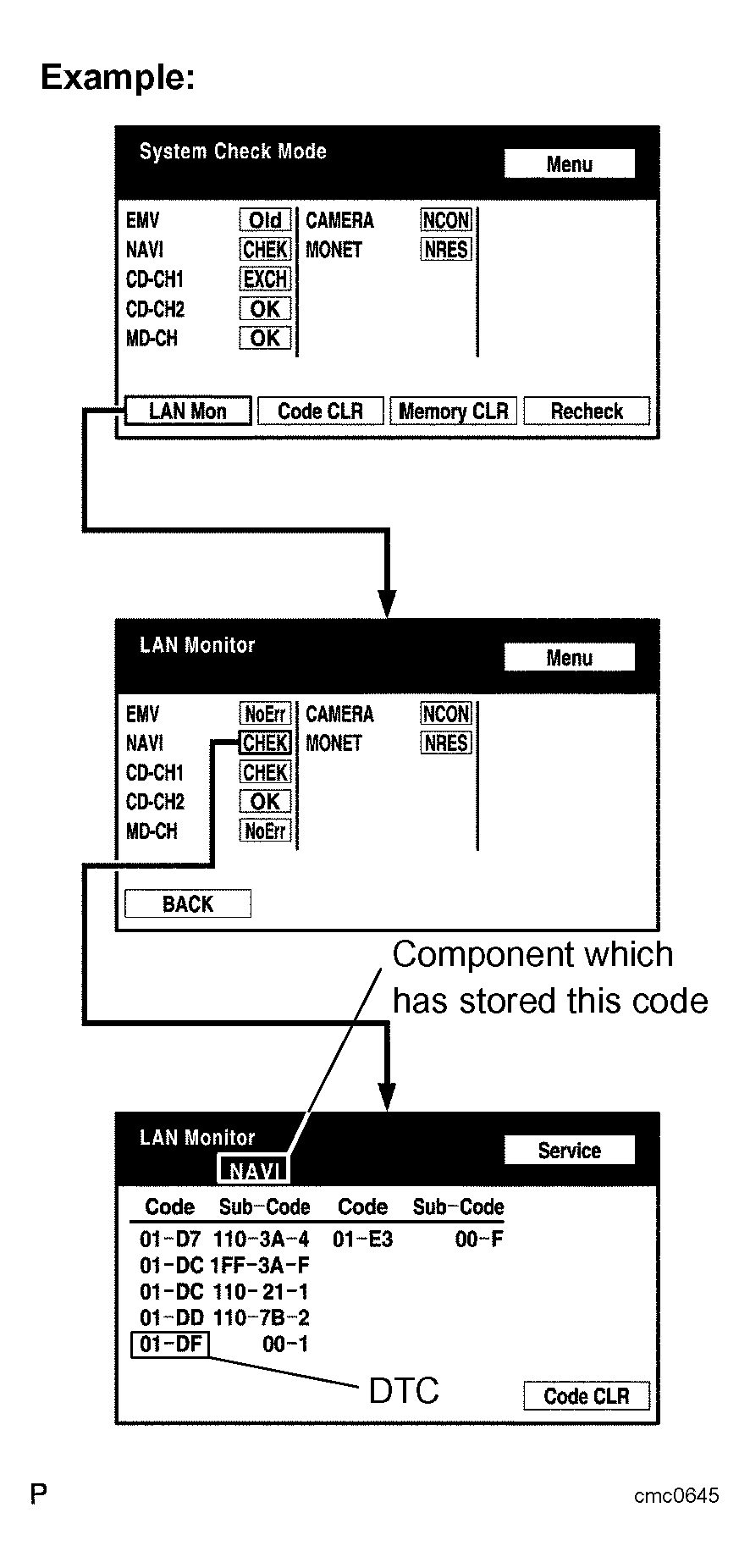

      Fig 2: Pressing "LAN MON" Switch To Change To "LAN MONITOR" Mode
      G04337830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Component Table:

    COMPONENT TABLE

    Display Component
    Rr-TV Television display assembly
    DSP-AMP Stereo component amplifier

    HINT:

    "NAVI" is the component which has stored this code in the example shown in the illustration.

  4. CHECK HARNESS AND CONNECTOR (RADIO AND NAVIGATION ASSEMBLY - COMPONENT WHICH HAS STORED THIS CODE)

    HINT:

    For details of the connectors, refer to TERMINALS OF ECU  .

    1. Referring to Fig 3 below, check the AVC-LAN circuit between the radio and navigation assembly and the component which has stored this code.
      1. Check for an open or short in the AVC-LAN circuit between the radio and navigation assembly and the component which has stored this code.

      OK:

      There is no open or short circuit.

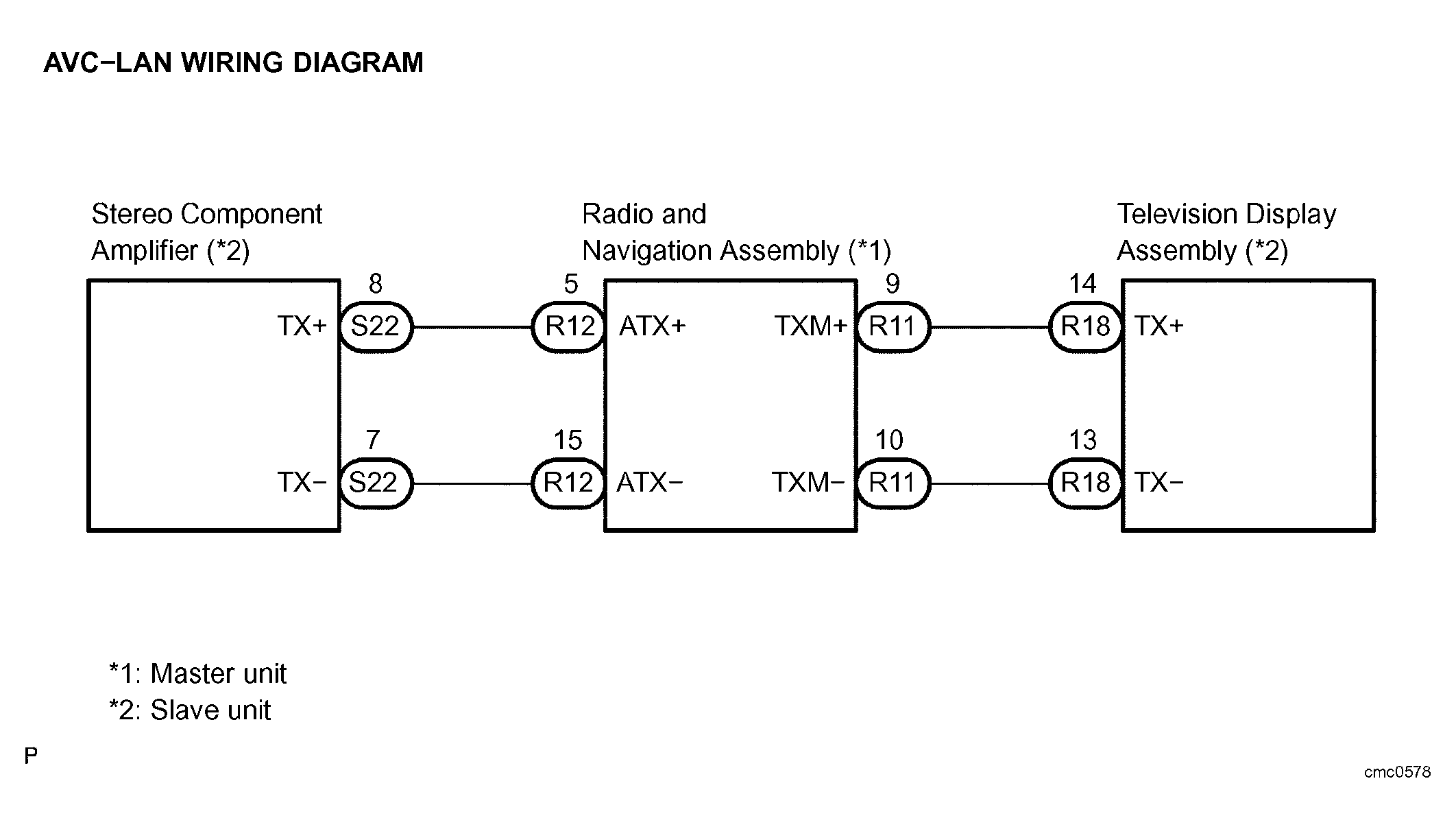

      Fig 3: AVC-LAN Communication Wiring Diagram
      G04337831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP.

  5. REPLACE RADIO AND NAVIGATION ASSEMBLY
    1. Replace the radio and navigation assembly with a normal one and check if the same problem occurs again.

      OK:

      Same problem does not occur.

    NG: REPLACE COMPONENT WHICH HAS STORED THIS CODE

    OK: END
