Display Check Mode

HINT:

• This mode checks the color display on the display.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE (See  DIAGNOSIS DISPLAY DETAILED DESCRIPTION   ).
2. DISPLAY CHECK
   1. Select "Display Check" on the "Diagnosis MENU" screen.

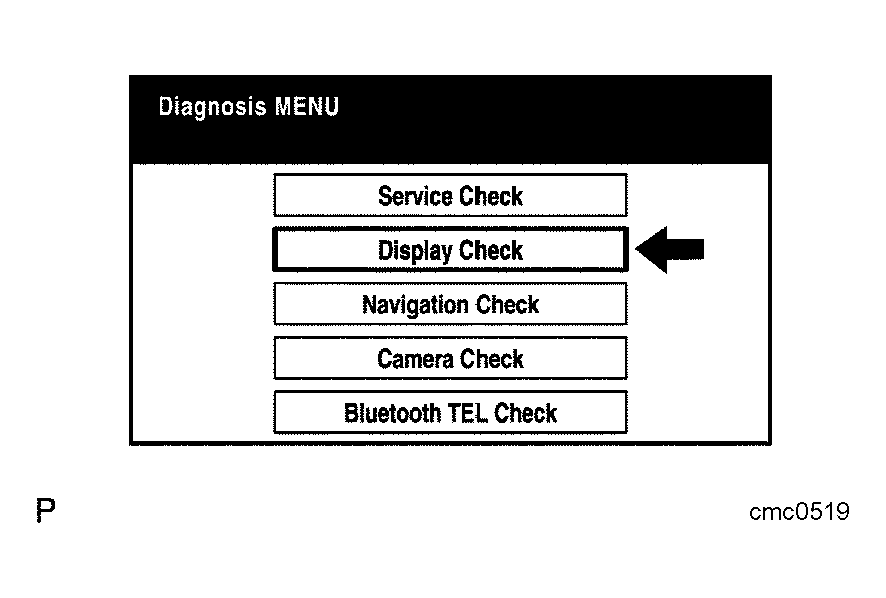

      Fig 1: Display - Diagnosis Menu

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. COLOR BAR CHECK
   1. Select "Color Bar Check" on the "Display Check" screen.

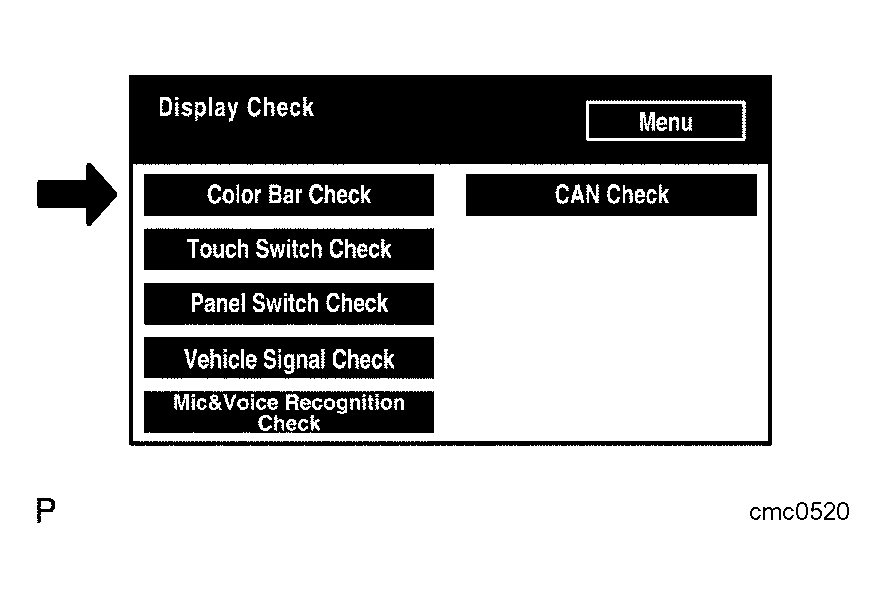

      Fig 2: Display - Display Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a color bar on the "Color Bar Check Mode" screen.
   3. Check the display color.

   HINT:

   • The entire screen turns to the color or stripe selected.
   • Touching the display will return to the "Color Bar Check" screen.

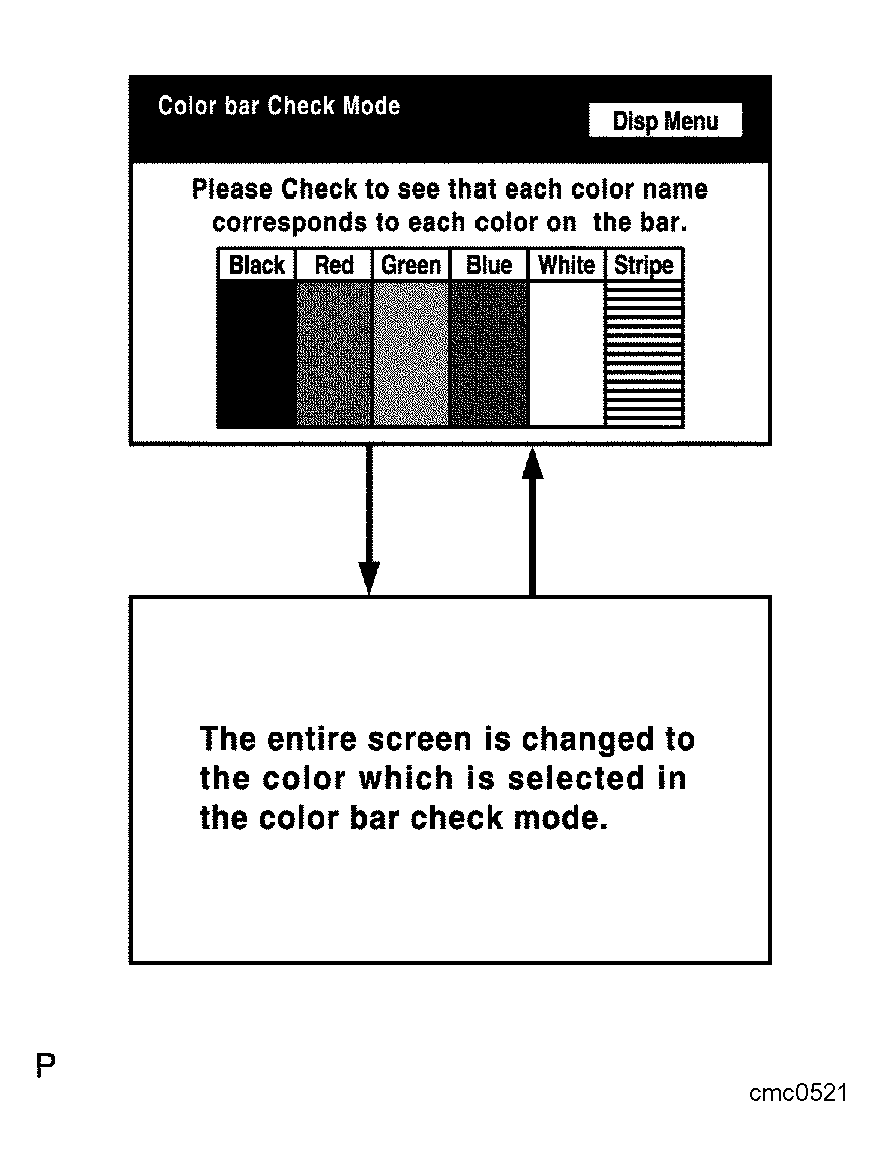

     Fig 3: Display - Color Bar Check

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. TOUCH SWITCH CHECK
   1. Select "Touch Switch Check" on the "Display Check" screen.

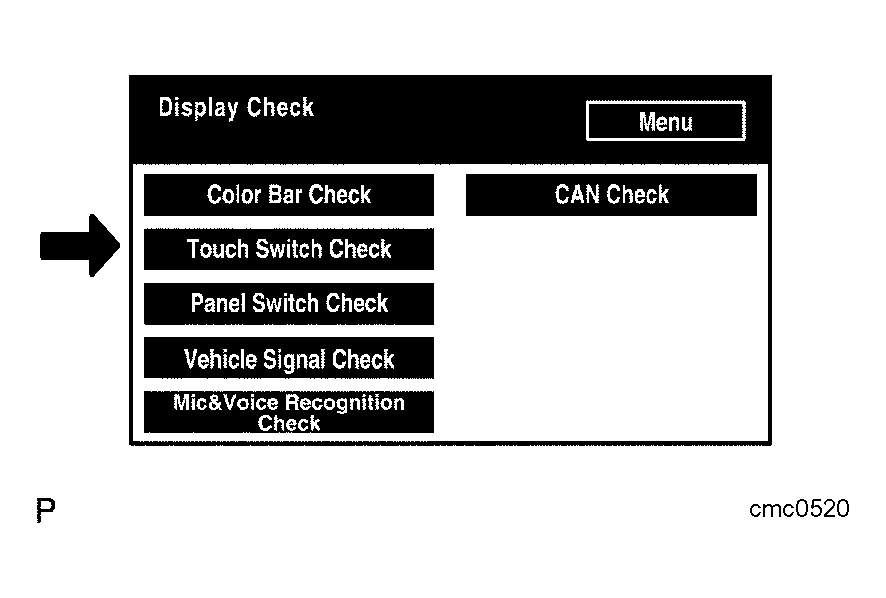

      Fig 4: Display - Touch Switch Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

      HINT:

      • A "+" mark is displayed where the display is touched.
      • The "+" mark remains on the display even after the finger is removed.

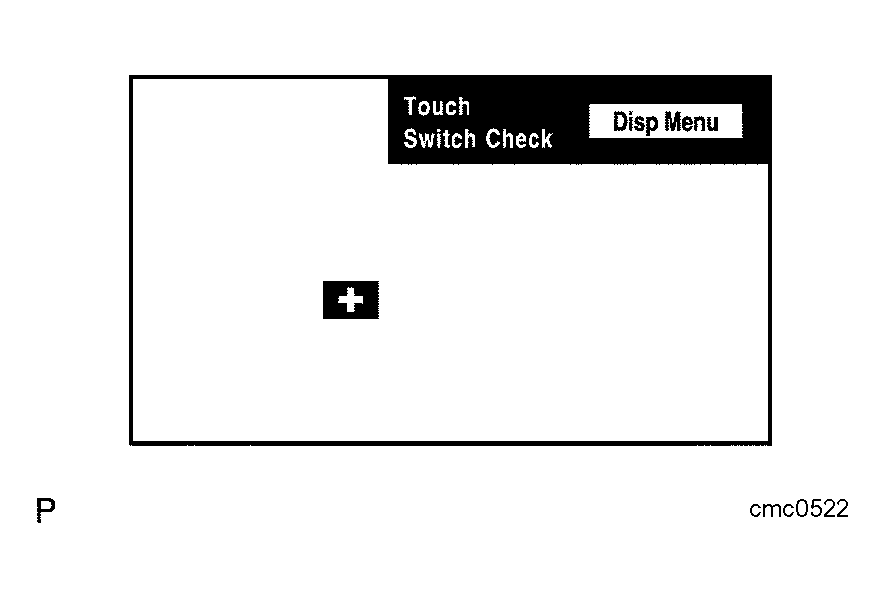

        Fig 5: Display - Touch Switch Check

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. PANEL SWITCH CHECK
   1. Select "Panel Switch Check" on the "Display Check" screen.

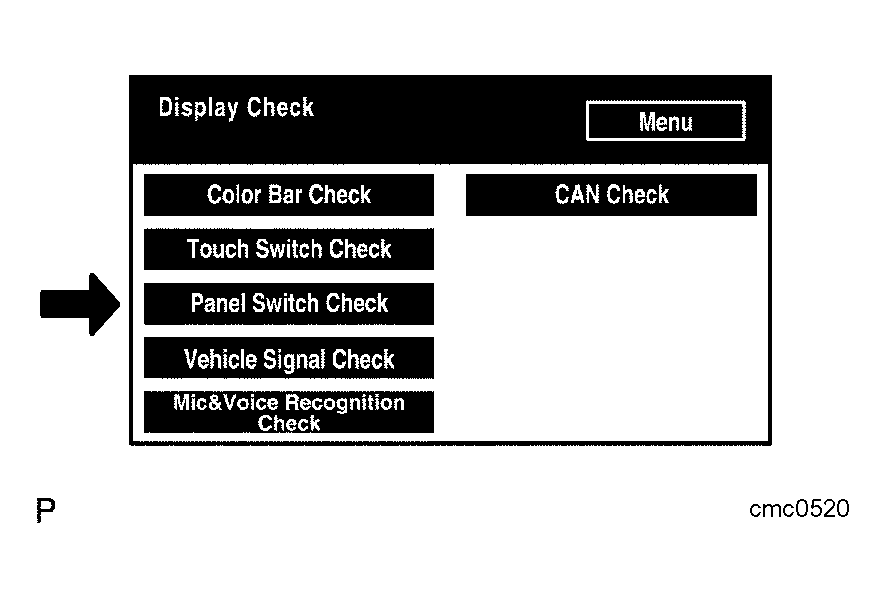

      Fig 6: Display - Panel Switch Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Operate each switch and check that the switch name and condition are correctly displayed.

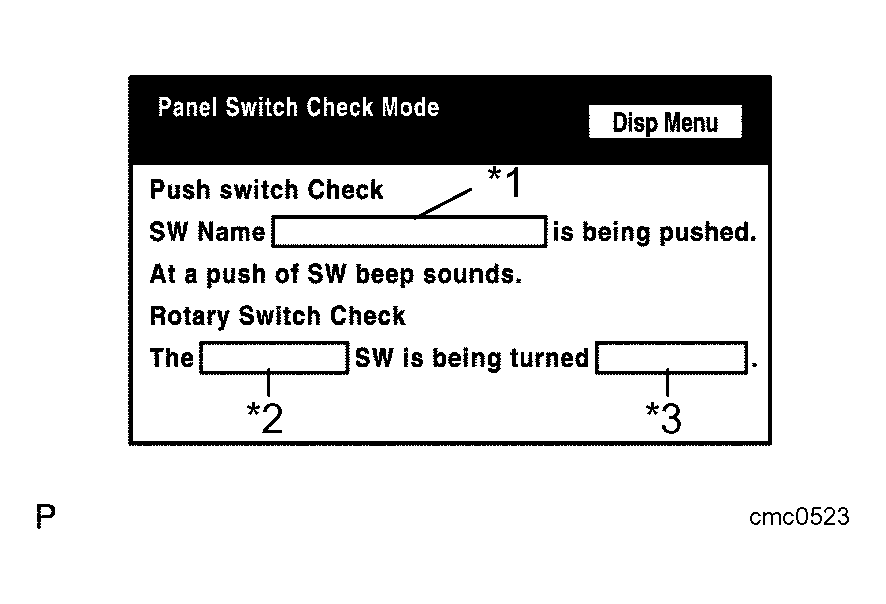

      Fig 7: Display - Panel Switch Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CONTENTS DISPLAY



      Display	Contents
      Push switch name/*1	Name of the pressed switch is displayed. If more than one switch is pressed, "MULTIPLE" is displayed.
      Rotary switch name/*2	Name of the rotary switch is displayed.
      Rotary switch direction/*3	Direction of the rotary switch is displayed.

6. VEHICLE SIGNAL CHECK
   1. Select "Vehicle Signal Check" on the "Display Check" screen.

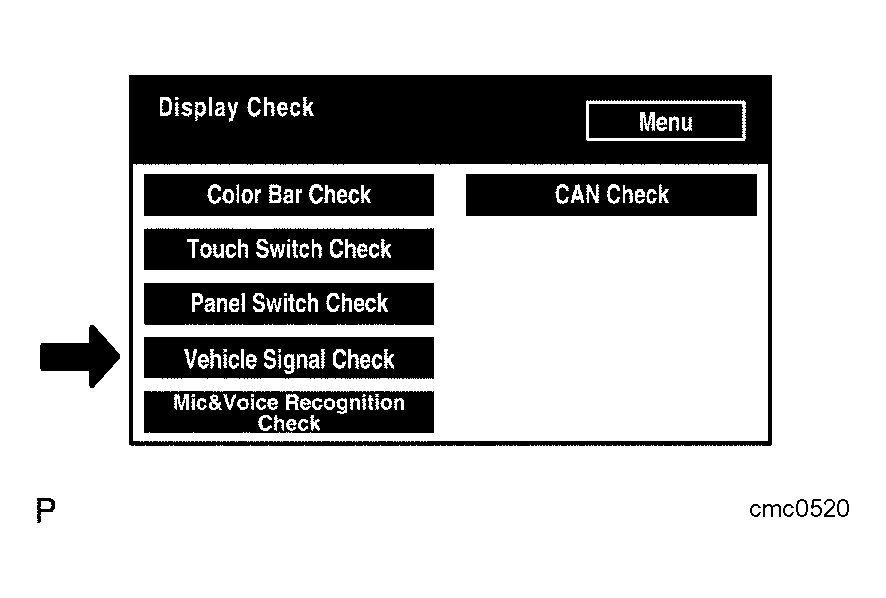

      Fig 8: Display - Vehicle Signal Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

      HINT:

      • Only conditions having inputs are displayed.
      • This screen is updated once per second when input signals to the vehicle are changed.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION (see DIAGNOSIS DISPLAY DETAILED DESCRIPTION  ).

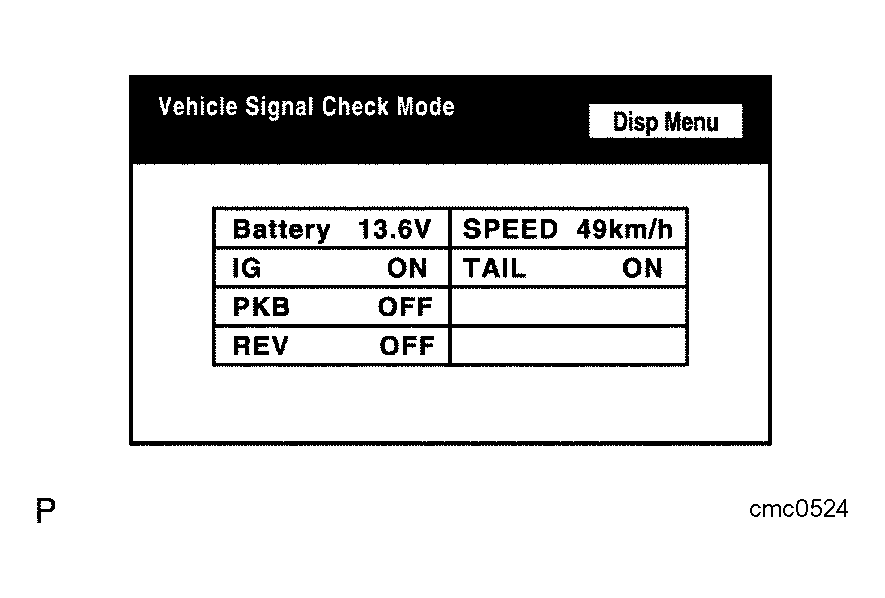

        Fig 9: Display - Vehicle Signal Check Mode

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. CAN CHECK
   1. Select "CAN Check" on the "Display Check" screen.
   2. Check the CAN connection check result.

      HINT:

      • This function operates only for the systems connected to the CAN system.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .

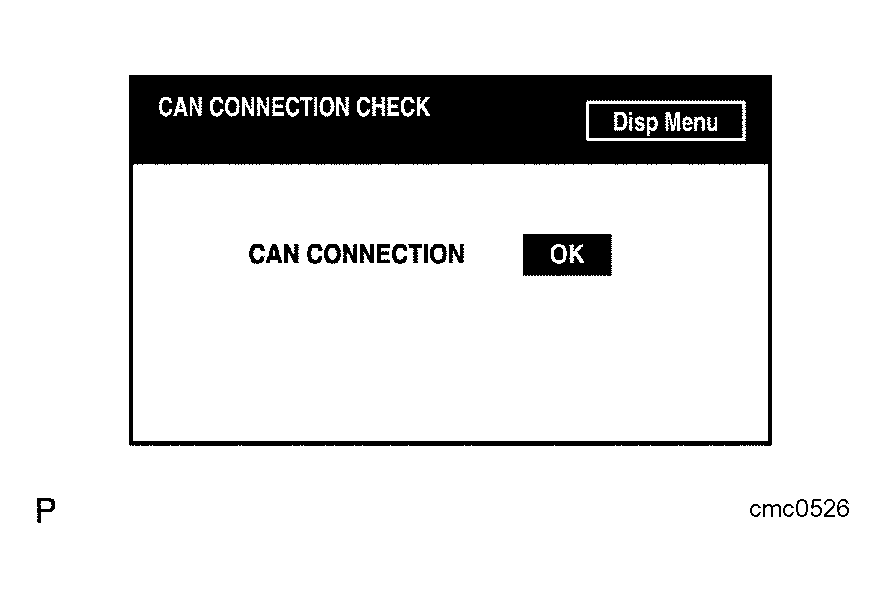

        Fig 10: Display - CAN Connection Check

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
