Navigation Check Mode

HINT:

• This mode displays GPS satellite information.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE (See  DIAGNOSIS DISPLAY DETAILED DESCRIPTION   ).
2. NAVIGATION CHECK

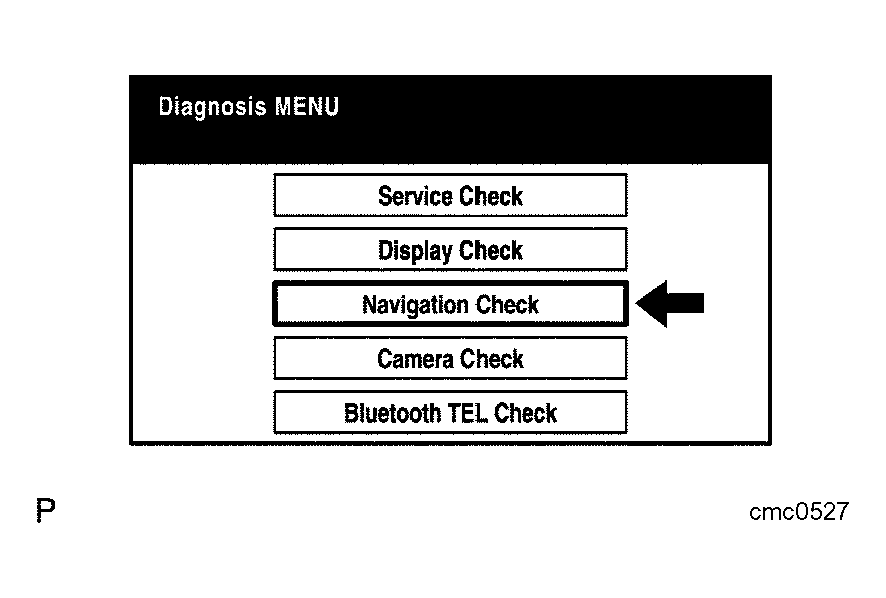

   1. Select "Navigation Check" on the "Diagnosis MENU" screen.
      Fig 1: Display - Navigation Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. GPS INFORMATION

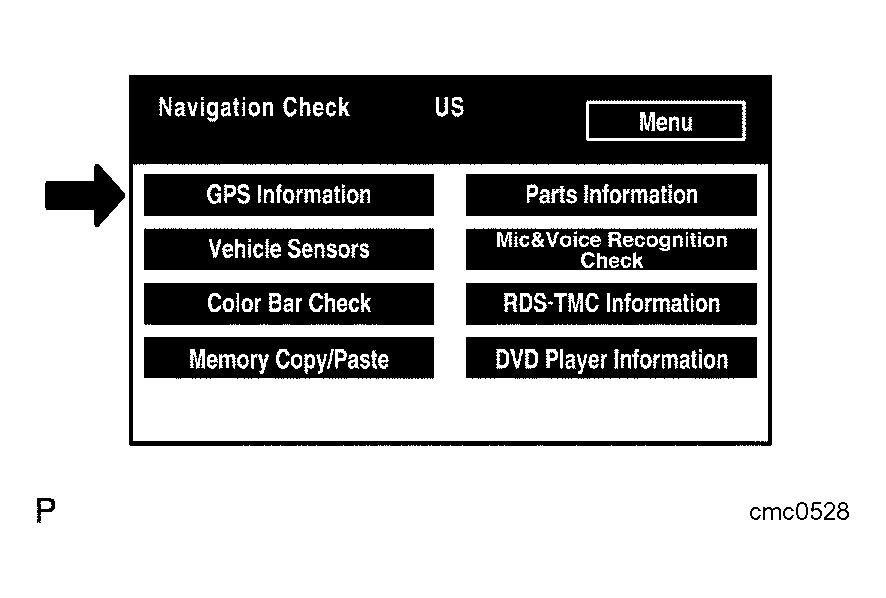

   1. Select "GPS Information" on the "Navigation Check" screen.
      Fig 2: Display - GPS Information

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When GPS information si displayed, check the GPS conditions.

   HINT:

   • This screen is updated once per second when input signals to the vehicle are changed.
   • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .

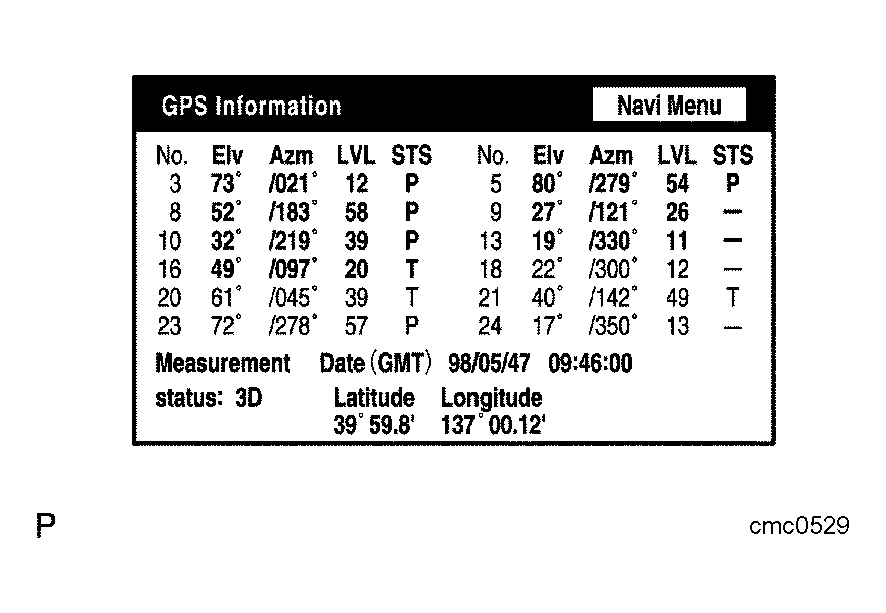

     Fig 3: Display - GPS Information

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. VEHICLE SENSORS

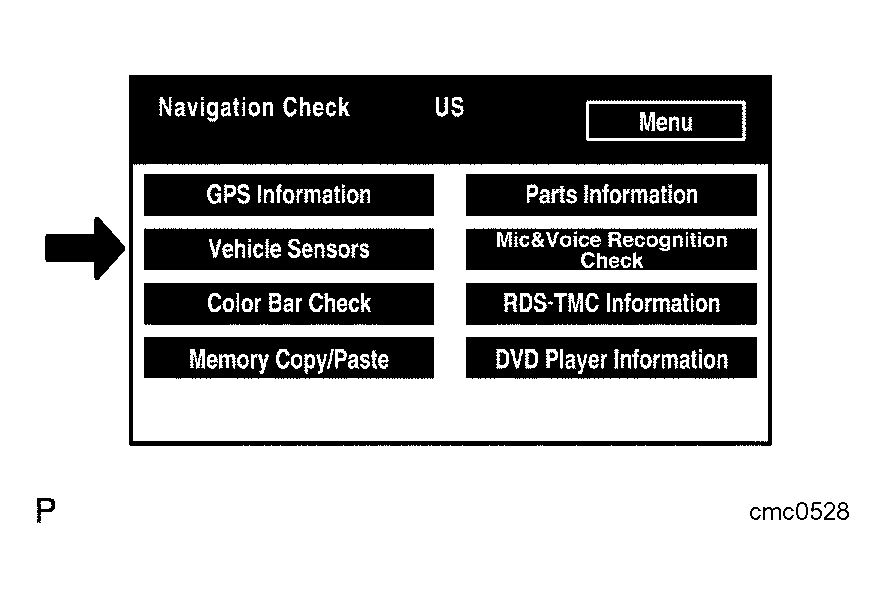

   1. Select "Vehicle Sensors" on the "Navigation Check" screen.
      Fig 4: Display - Vehicle Sensors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

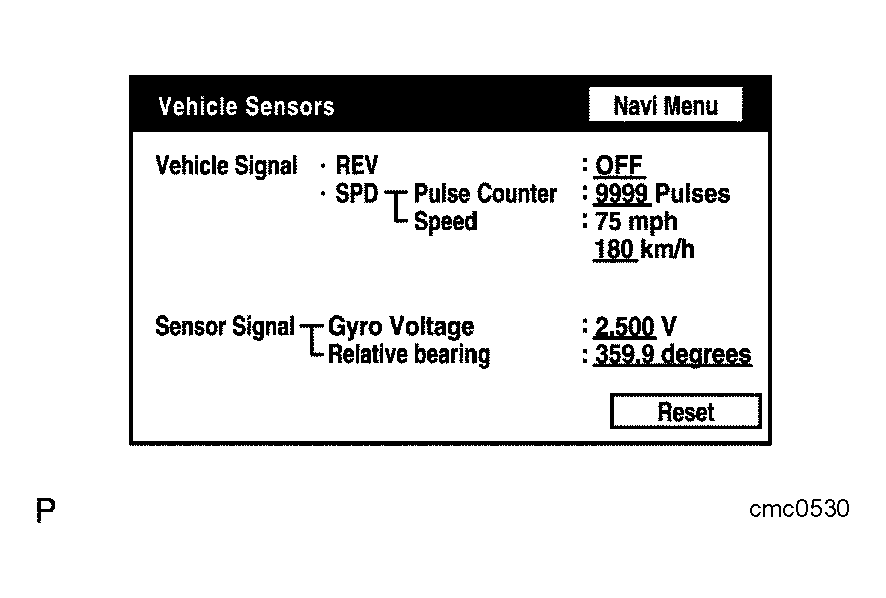

   2. Check all the signals and sensors when vehicle signal information is displayed.

      HINT:

      • This screen is updated once per second when input signals to the vehicle are changed.
      • This function is controlled by the built-in navigation ECU.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .
        Fig 5: Display - Vehicle Sensors

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. COLOR BAR CHECK

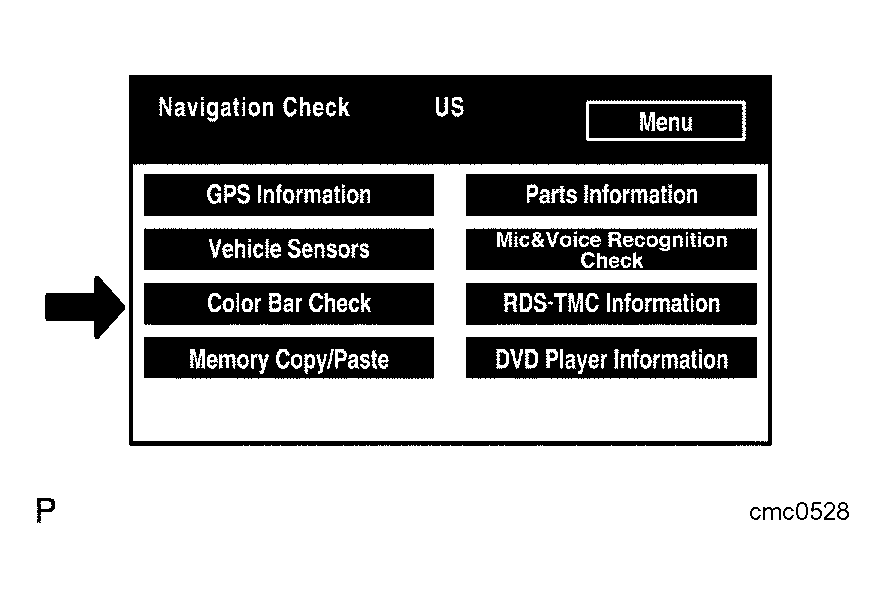

   1. Select "Color Bar Check" on the "Navigation Check" screen.
      Fig 6: Display - Color Bar Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.

      HINT:

      • Colors will not be displayed full-screen as in "Display Check Mode".
      • This function is controlled by the built-in navigation ECU.

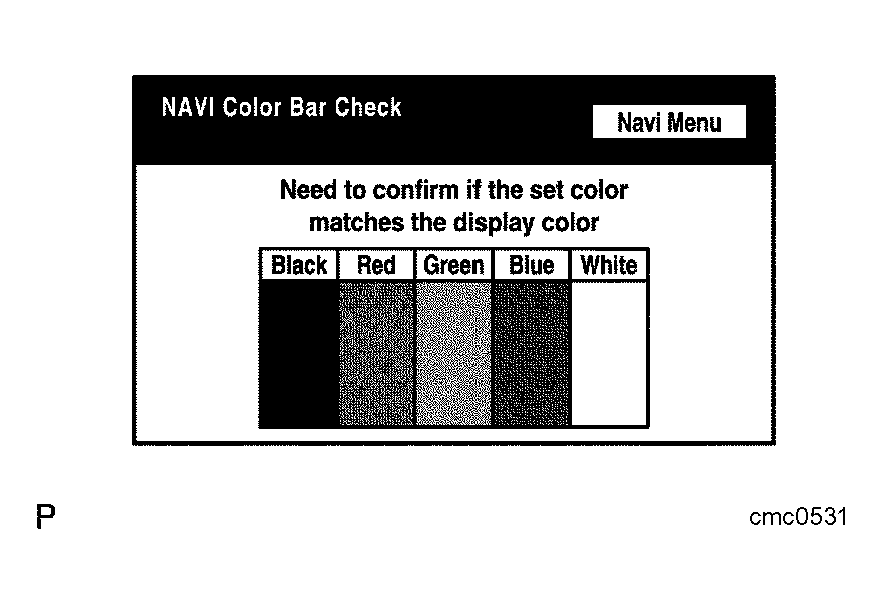

        Fig 7: Display - NAVI Color Bar Check

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. MEMORY COPY/PASTE CHECK

   HINT:

   This function operates only with a special tool.

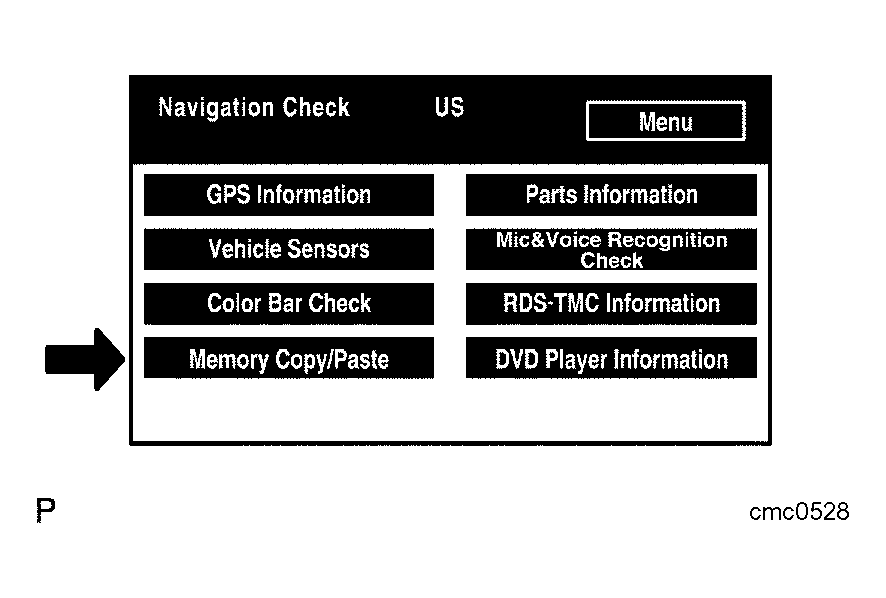

   Fig 8: Display - Memory Copy/Paste

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. PARTS INFORMATION

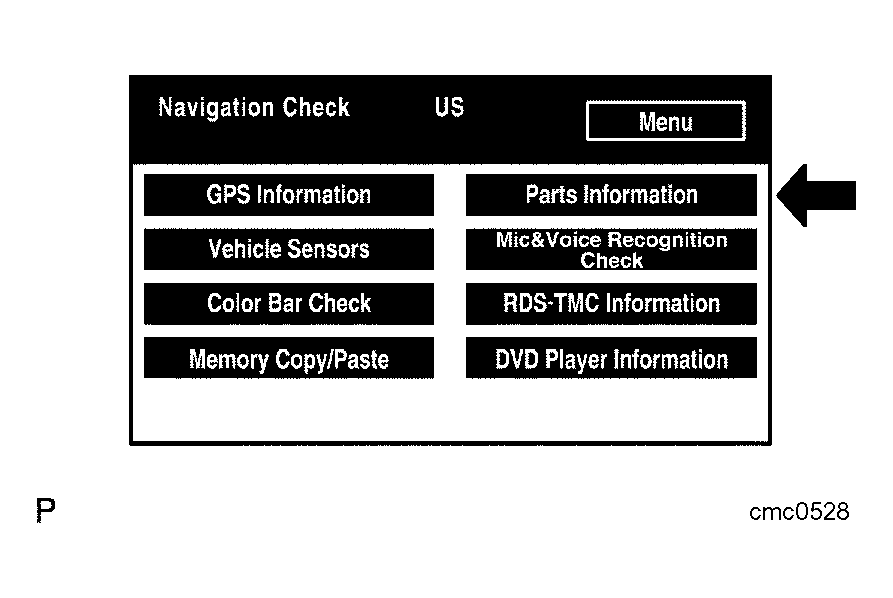

   1. Select "Parts Information" on the "Navigation Check" screen.
      Fig 9: Display - Parts Information (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check the navigation and disc information when the "Parts Information" screen is displayed.

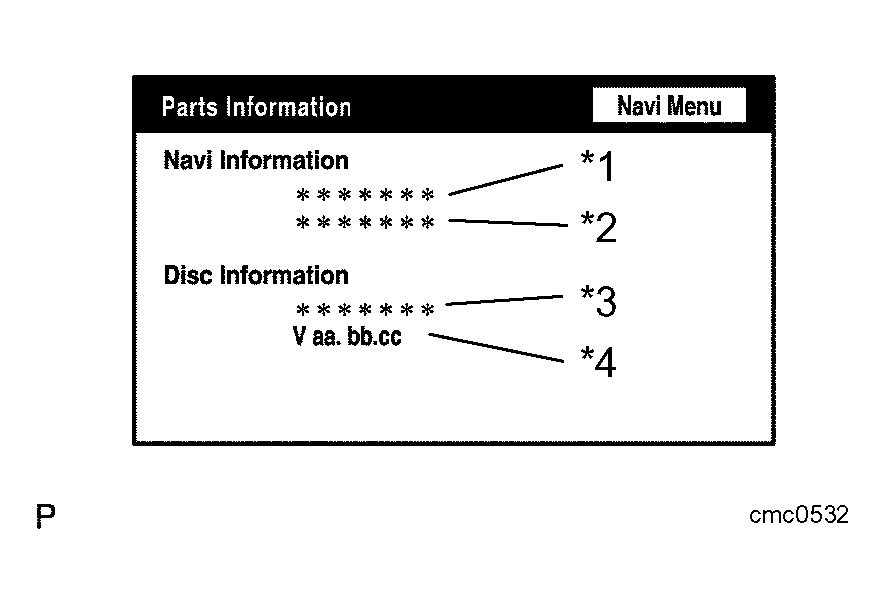

      Fig 10: Display - Parts Information (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Screen Description:

   SCREEN DESCRIPTION



   Display	Contents
   Navigation Manufacturer/*1	Radio and navigation assembly manufacturer is displayed.
   Navigation Version/*2	Radio and navigation assembly version is displayed.
   Disc Manufacturer/*3	Map disc manufacturer is displayed.
   Disc Version/*4	Map disc version is displayed.

8. MIC & VOICE RECOGNITION CHECK

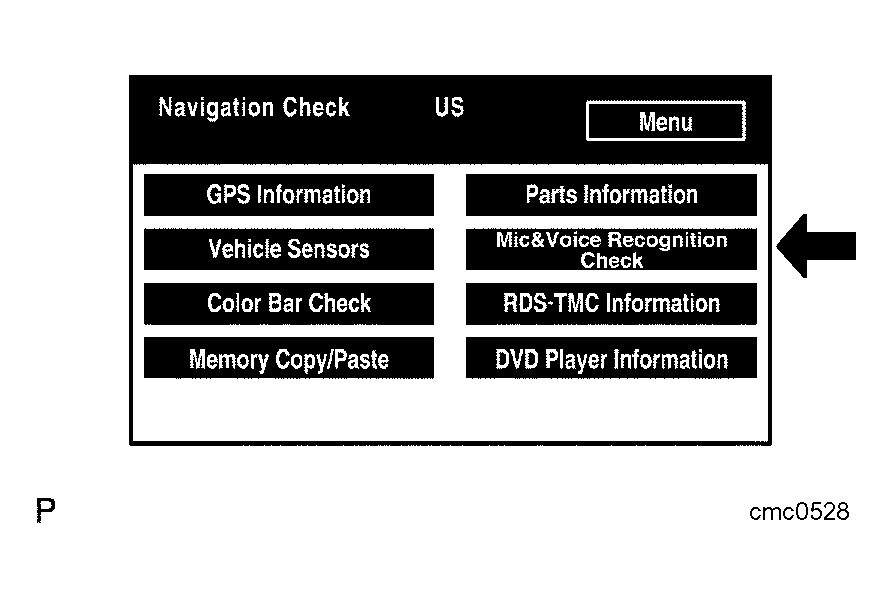

   1. Select "Mic & Voice Recognition Check" on the "Display Check" screen to display "MICROPHONE & VOICE RECOGNITION CHECK" screen.
      Fig 11: Display - MIC & Voice Recognition Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
   3. Push the recording switch and perform voice recording.
   4. Check that the recording indicator remains on while recording and that the recorded voice is played normally.

      HINT:

      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION .
      • This function is controlled by the built-in navigation ECU.

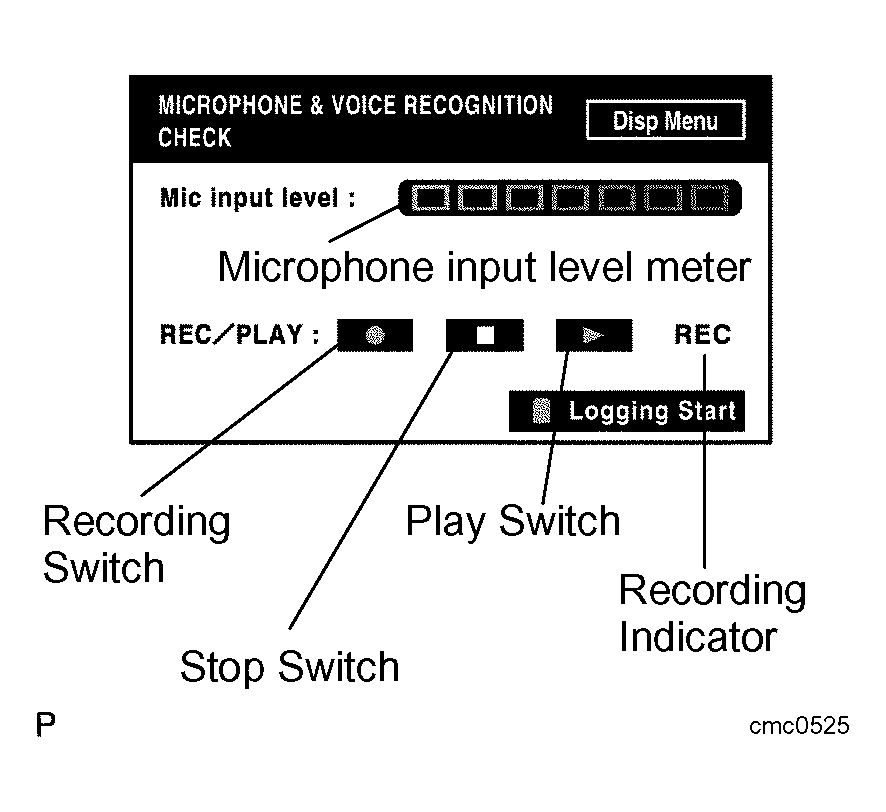

        Fig 12: Display - Microphone & Voice Recognition Check Screen

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. DVD PLAYER INFORMATION CHECK

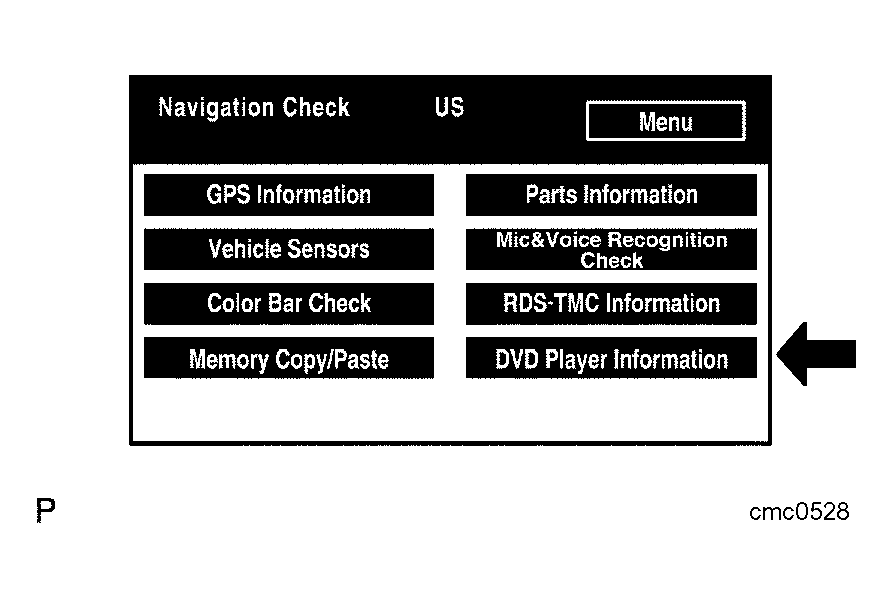

   1. Select "DVD Player Information" on the "Navigation Check" screen.
      Fig 13: Display - DVD Player Information

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

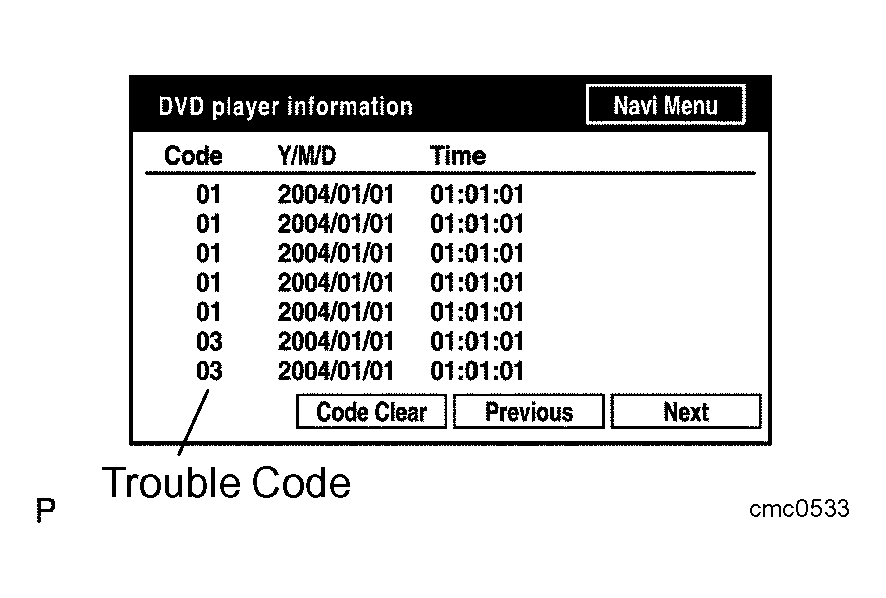

   2. Check for DTCs.

      HINT:

      • This function is controlled by the built-in navigation ECU.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .
        Fig 14: Display - DVD Player Information

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
