Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (RADIO AND NAVIGATION ASSEMBLY - STEREO JACK ADAPTER)

Disconnect the connectors from the stereo jack adapter and radio and navigation assembly.

Measure the resistance according to the value(s) in TESTER CONNECTION SPECIFIED CONDITION .

Standard:

TESTER CONNECTION SPECIFIED CONDITION

Tester connection	Condition	Specified condition
AUXO - ADPG	Always	Below 1
ASGN - VA-	Always	Below 1
ARO - VAR+	Always	Below 1
ALO - VAL+	Always	Below 1
AUXO - Body ground	Always	10 k or higher
ASGN - Body ground	Always	10 k or higher
ARO - Body ground	Always	10 k or higher
ALO - Body ground	Always	10 k or higher

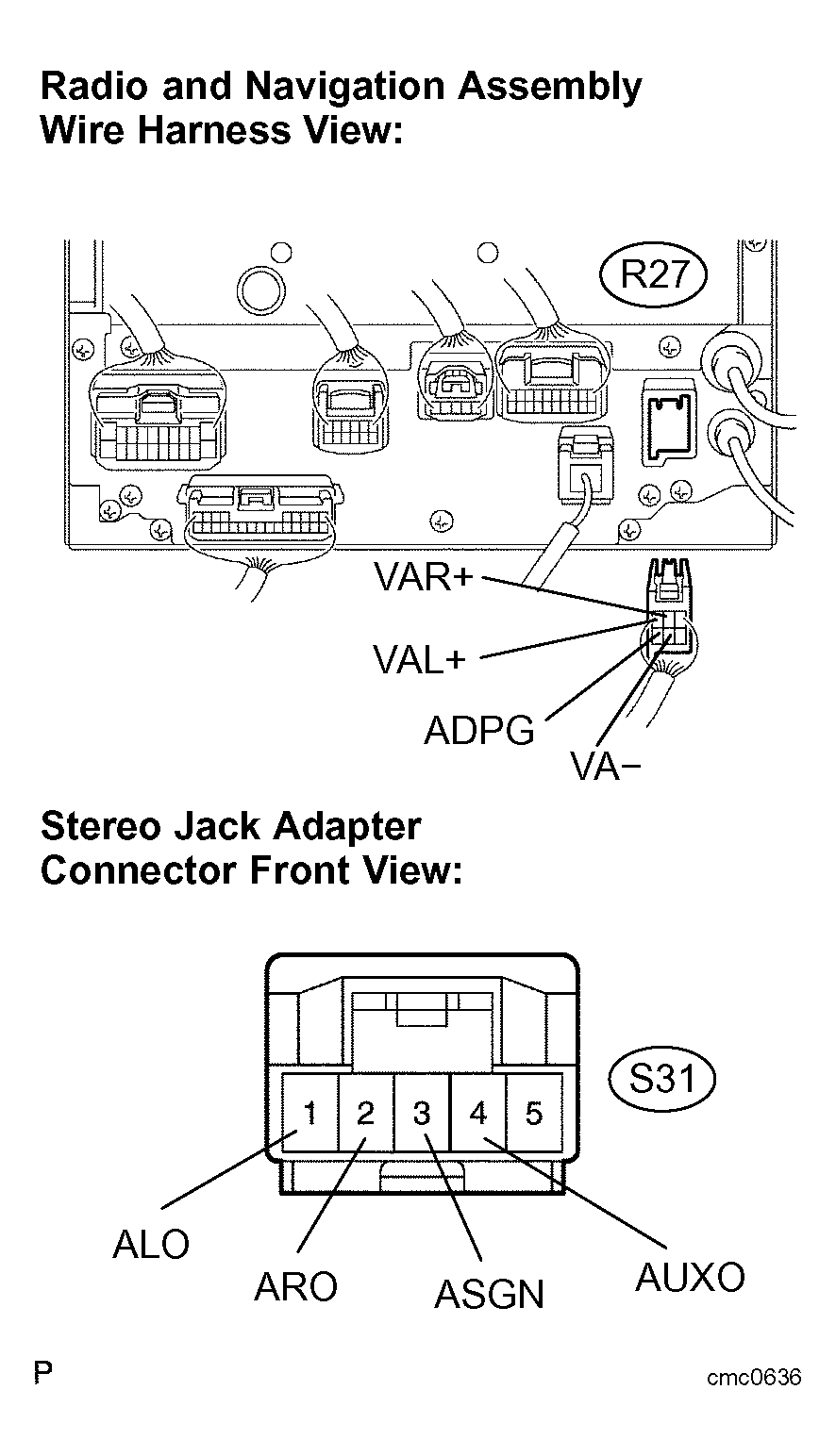

Fig 1: Checking Harness & Connector (Radio & Navigation Assembly - Stereo Jack Adapter)

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: RETURN TO THE ORIGINAL INSPECTION BECAUSE THE CHECK RESULT IS NORMAL
