Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK NAVIGATION SYSTEM SETTING
1. Enter the "Menu" screen by pressing the "MENU" switch.
2. Select "Volume".

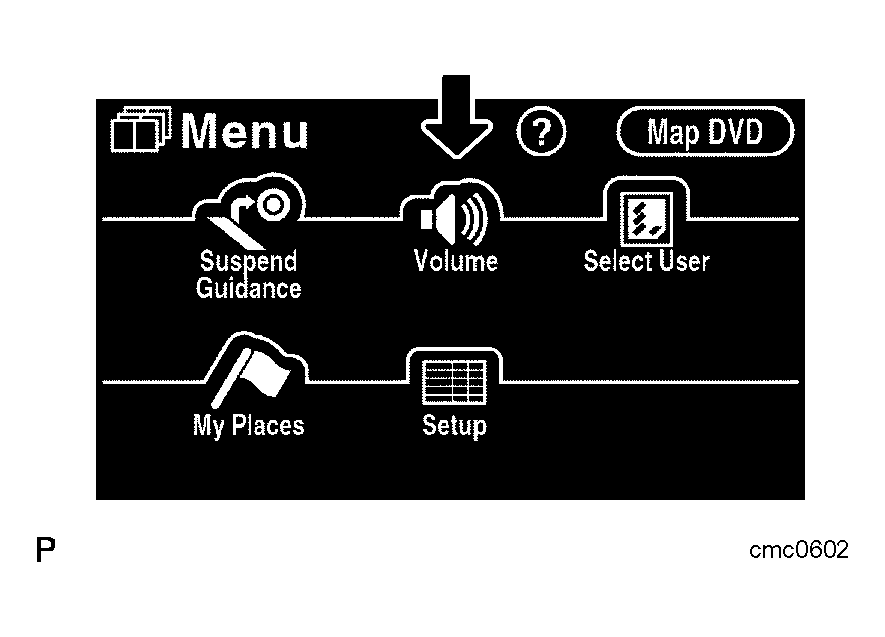

  Fig 1: Display - Volume
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that "off" is not selected.
  OK:

  "off" is not selected.

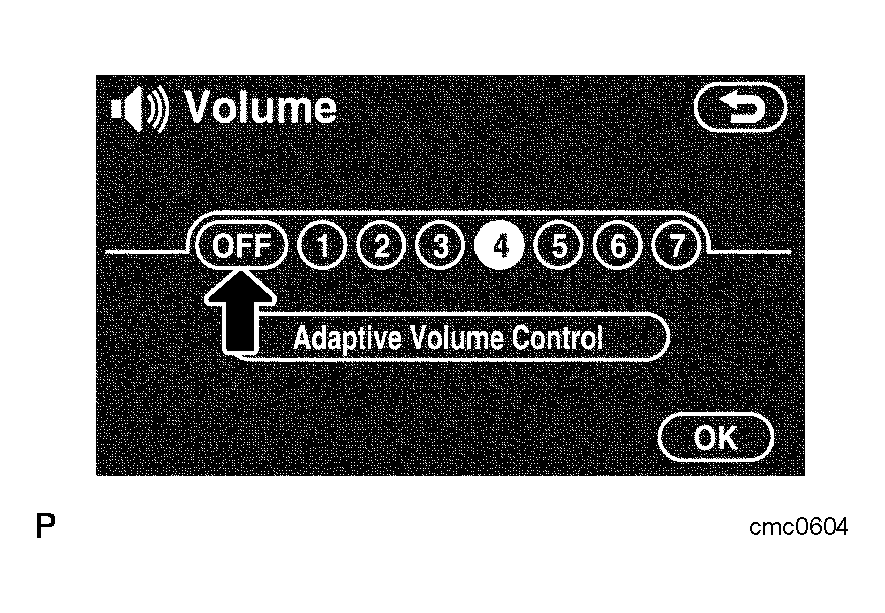

  Fig 2: Display - Volume Control
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: TURN VOICE GUIDANCE VOLUME UP TO 4 USING VOICE ADJUSTMENT SWITCHES

OK: GO TO NEXT STEP.
CHECK NAVIGATION SETTING
1. Enter the "Menu" screen by pressing the "MENU" switch.
2. Select "Setup".

  Fig 3: Pressing "MENU" Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that "Voice Guidance in All Modes" is not OFF.
  OK:

  Voice guidance in all modes is not OFF.

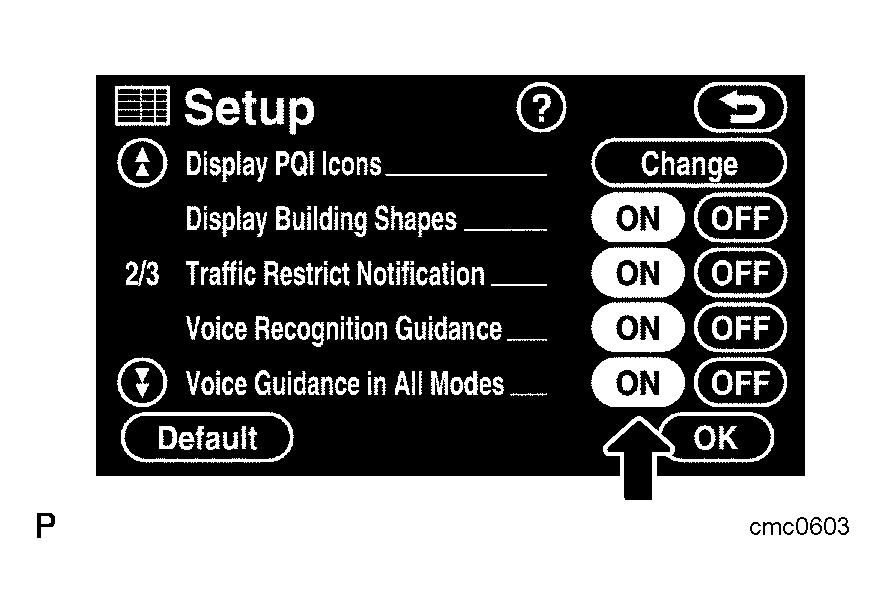

  Fig 4: Display - Voice Guidance In All Modes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: TURN VOICE GUIDANCE IN ALL MODES "ON"

OK: GO TO NEXT STEP.
CHECK NAVIGATION SETTING
1. Enter the "Menu" screen by pressing the "MENU" switch.
2. Select "Setup".

  Fig 5: Pressing "MENU" Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that "Auto Voice Guidance" is not OFF.
  OK:

  Auto voice guidance is not OFF.

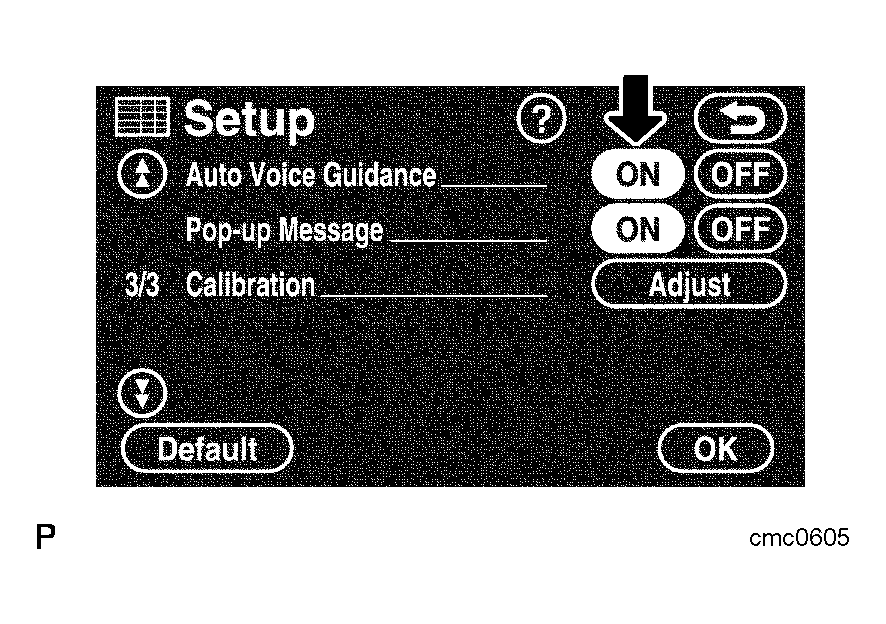

  Fig 6: Display - Auto Voice Guidance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: TURN AUTO VOICE GUIDANCE "ON"

OK: GO TO NEXT STEP.
CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
  OK:

  No deformations or cracks on the map disc.

  Fig 7: Ensure Disc Is Not Deformed Or Cracked
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE MAP DISC

OK: GO TO NEXT STEP.
CHECK RADIO AND NAVIGATION ASSEMBLY
1. Check that audio sound can be heard from the driver side speaker.
  OK:

  Audio sound can be heard.
NG: RETURN TO THE ORIGINAL INSPECTION BECAUSE THE CHECK RESULT IS NORMAL

OK: REPLACE RADIO AND NAVIGATION ASSEMBLY
