Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK WIRE HARNESS (POWER SOURCE)
    1. Disconnect the P9 switch connector.
    2. Turn the ignition switch ON.
    3. Check the voltage between terminal 4 of the wire harness side connector of the switch and the body ground.

      Standard: 10 - 14 V

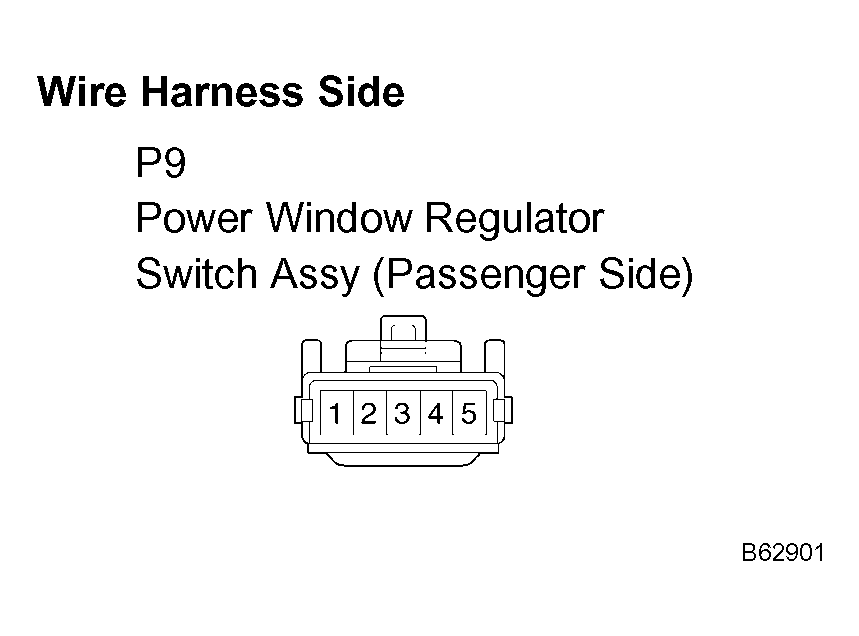

    4. Fig 1: Identifying P9 Switch Connector (Power Window Regulator Switch Assy (Passenger Side)
      G04336489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (SWITCH <==> RELAY)

    OK: GO TO NEXT STEP

  2. INSPECT POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)
    1. Remove the power window switch.
    2. Check the continuity between the terminals of the switch connector when the switch is operated.

      Standard:

      TERMINAL SPECIFIED CONDITION TABLE

      Terminal No. Switch Specified Condition
      1 <==> 2, 3 <==> 4 UP Continuity
      1 <==> 2, 3 <==> 5 OFF Continuity
      1 <==> 4, 3 <==> 5 DOWN Continuity

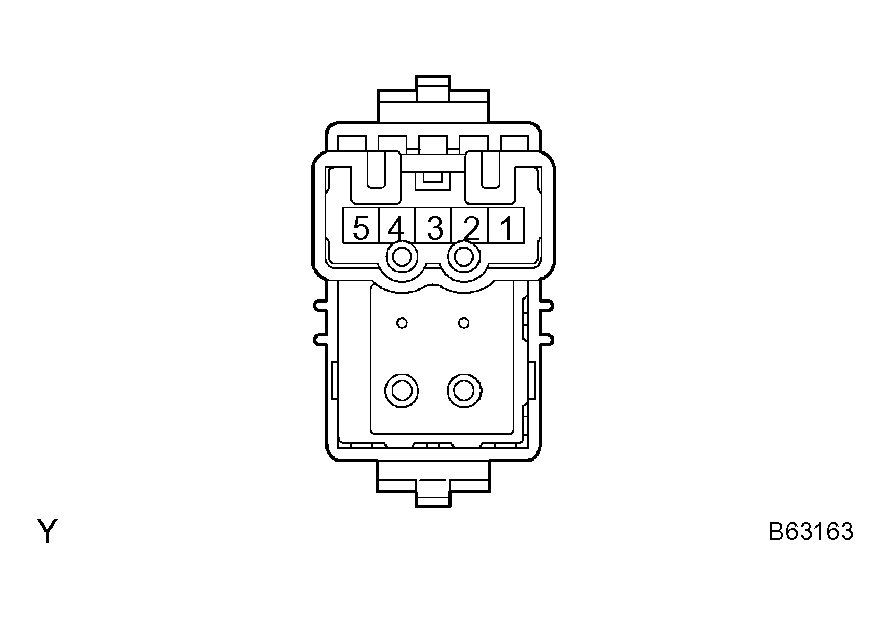

      Fig 2: Identifying Power Window Regulator Switch Connector
      G04336490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)

    OK: GO TO NEXT STEP

  3. CHECK WIRE HARNESS (SWITCH <==> MOTOR) (SWITCH <==> BODY GROUND)
    1. Disconnect the P13 motor connector.
    2. Check the continuity between the wire harness side connectors.

      Standard:

      TERMINAL SPECIFIED CONDITION TABLE

      Terminal No. Specified Condition
      P9-1 <==> P13-1 Continuity
      P9-3 <==> P13-2 Continuity

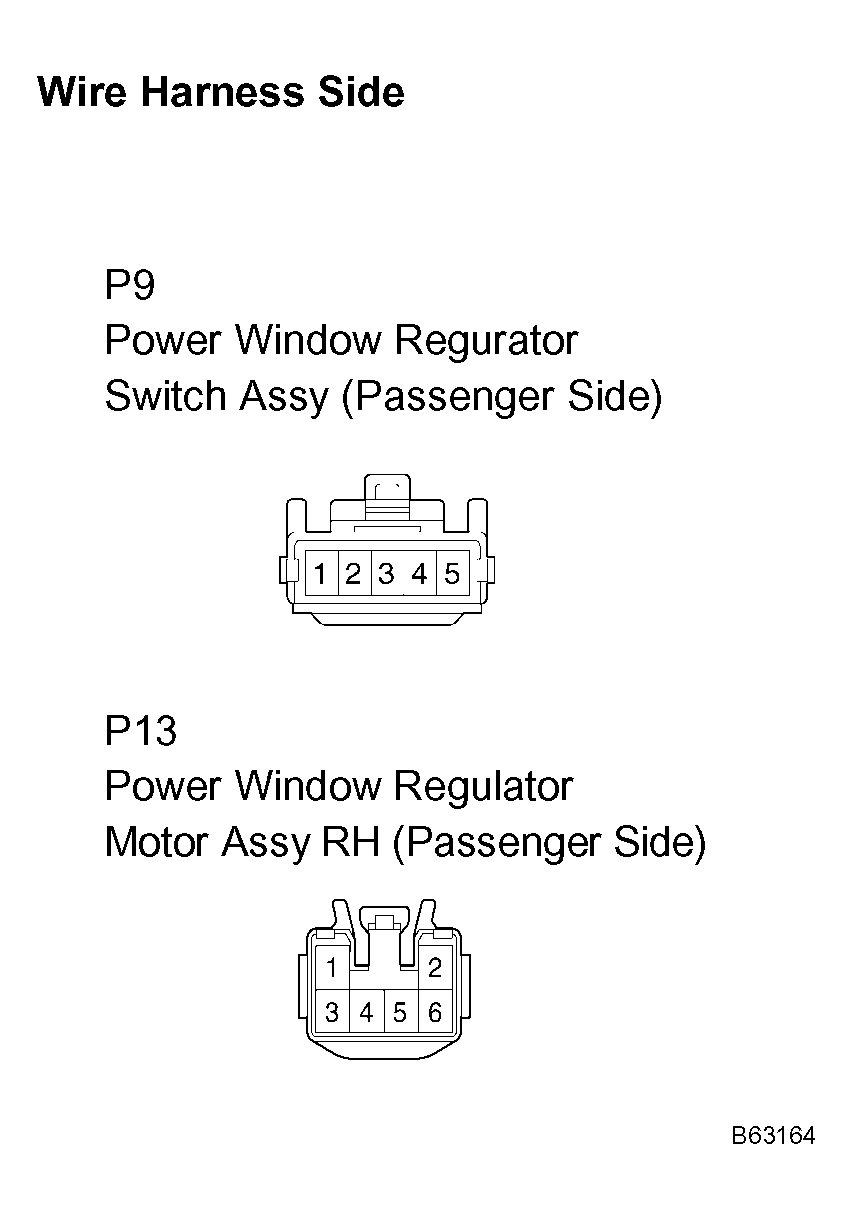

    3. Fig 3: Identifying P9 & P13 Motor Connector
      G04336491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the continuity between the P9 switch connector and the body ground.

      Standard:

      TERMINAL SPECIFIED CONDITION TABLE

      Terminal No. Specified Condition
      P9-1 <==> Body ground No continuity
      P9-3 <==> Body ground No continuity

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: GO TO NEXT STEP

  4. INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH (PASSENGER SIDE)
    1. Remove the motor (See OVERHAUL ).
    2. Apply battery voltage to connector terminals 1 and 2.
    3. Check that the motor rotates smoothly.

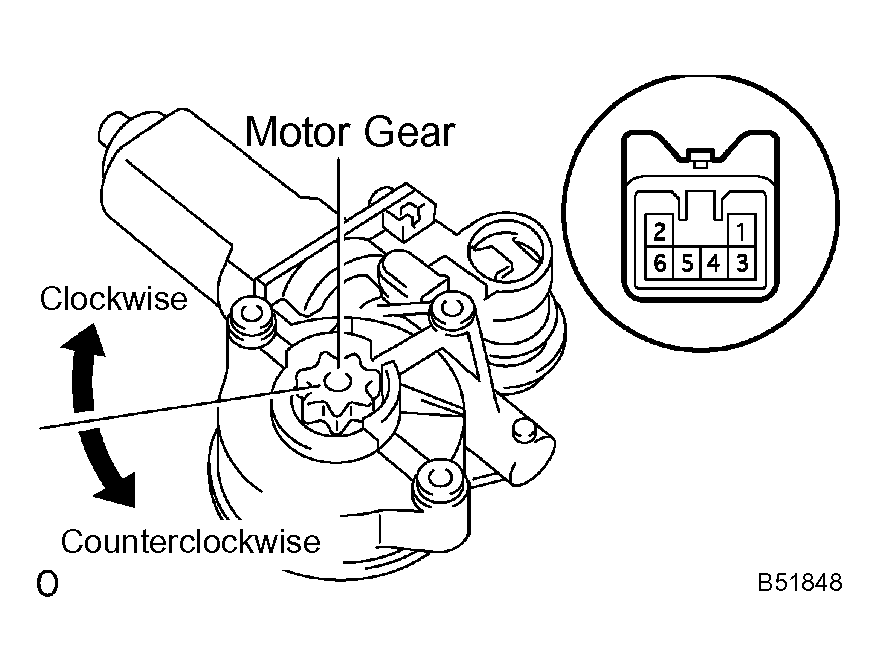

      Fig 4: Checking That Motor Rotates Smoothly
      G04336492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      TERMINAL MOTOR GEAR ROTATION TABLE

      Terminal No. Motor Gear Rotation
      Battery positive voltage --> 1
      Battery negative voltage --> 2
      Clockwise
      Battery positive voltage --> 2
      Battery negative voltage --> 1
      Counterclockwise

    NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH (PASSENGER SIDE)

    OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (MASTER SWITCH <==> SWITCH)
