Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WIRE HARNESS (POWER SOURCE)
1. Disconnect the P11 switch connector.
2. Turn the ignition switch ON.
3. Check the voltage between terminal 4 of the wire harness side connector of the switch and the body ground.
  Standard: 10-14 V

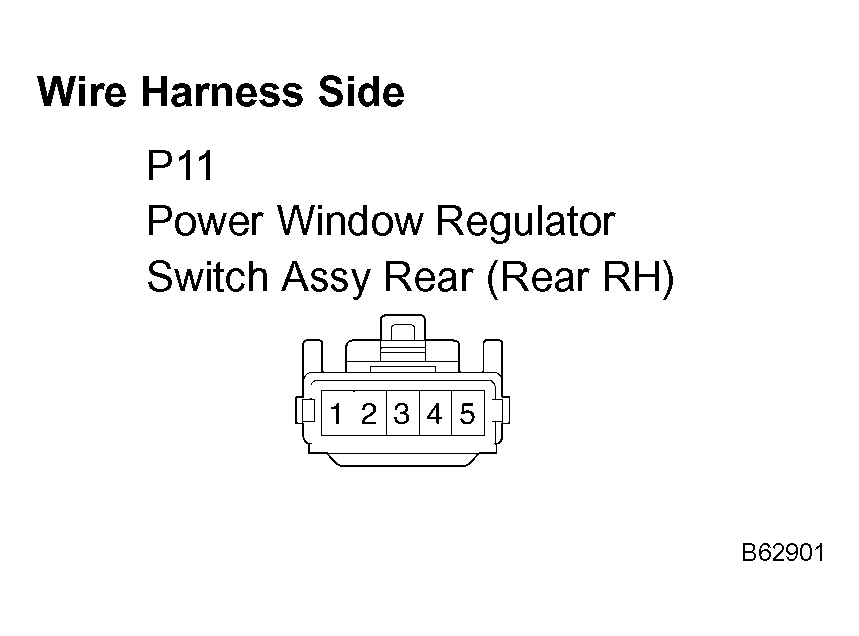

  Fig 1: Identifying P11 Switch Connector (Power Window Regulator Switch Assy Rear (Rear RH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (SWITCH <==> RELAY)

OK: GO TO NEXT STEP

INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH)

Remove the power window switch.

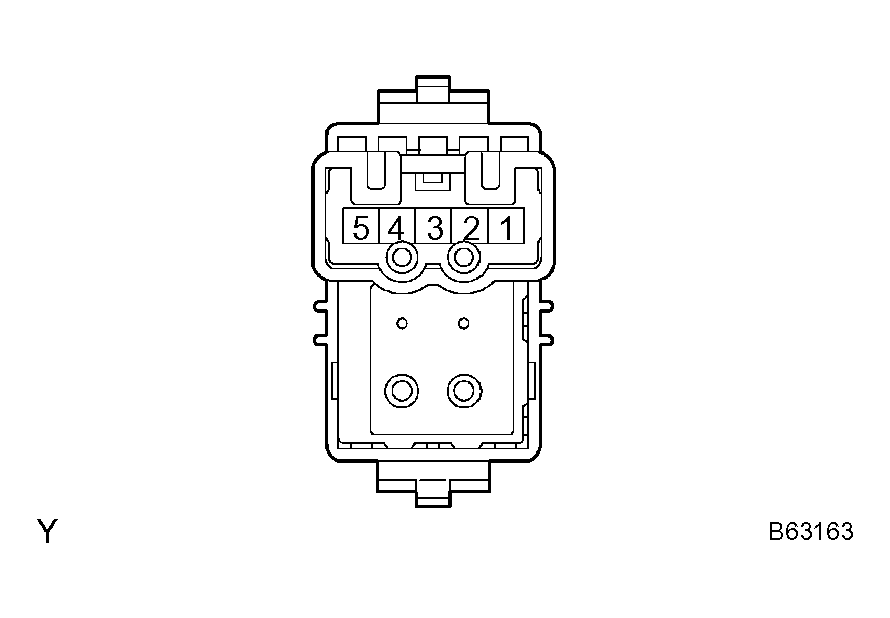

Fig 2: Identifying Power Window Switch Connector (Rear RH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the continuity between the terminals of the switch connector when the switch is operated.

Standard:

TERMINAL SPECIFIED CONDITION TABLE

Terminal No.	Switch	Specified Condition
1 <==> 2, 3 <==> 4	UP	Continuity
1 <==> 2, 3 <==> 5	OFF	Continuity
1 <==> 4, 3 <==> 5	DOWN	Continuity

NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH SIDE)

OK: GO TO NEXT STEP

CHECK WIRE HARNESS (SWITCH <==> MOTOR) (SWITCH <==> BODY GROUND)

Disconnect the P15 motor connector.

Check the continuity between the wire harness side connectors.

Standard:

TERMINAL SPECIFIED CONDITION TABLE

Terminal No.	Specified Condition
P11-3 <==> P15-1	Continuity
P11-1 <==> P15-2	Continuity

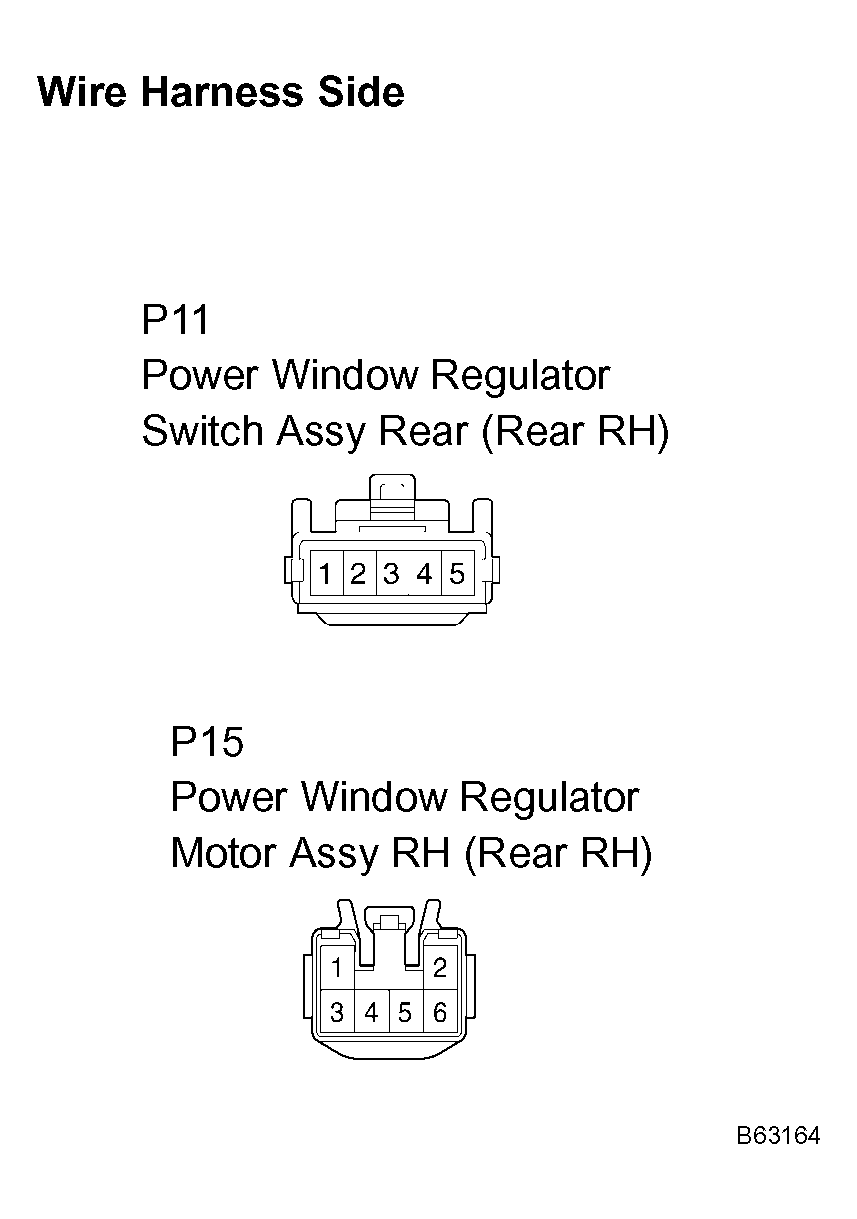

Fig 3: Identifying P11 & P15 Motor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the continuity between the P9 switch connector and the body ground.

Standard:

TERMINAL SPECIFIED CONDITION TABLE

Terminal No.	Specified Condition
P11-1 <==> Body ground	No continuity
P11-3 <==> Body ground	No continuity

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO TO NEXT STEP

INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH (REAR RH)

Remove the motor (See OVERHAUL ).
Apply battery voltage to connector terminals 1 and 2.

Check that the motor rotates smoothly.

Standard:

TERMINAL MOTOR GEAR ROTATION TABLE

Terminal No.	Motor Gear Rotation
Battery positive voltage --> 1 Battery negative voltage --> 2	Clockwise
Battery positive voltage --> 2 Battery negative voltage --> 1	Counterclockwise

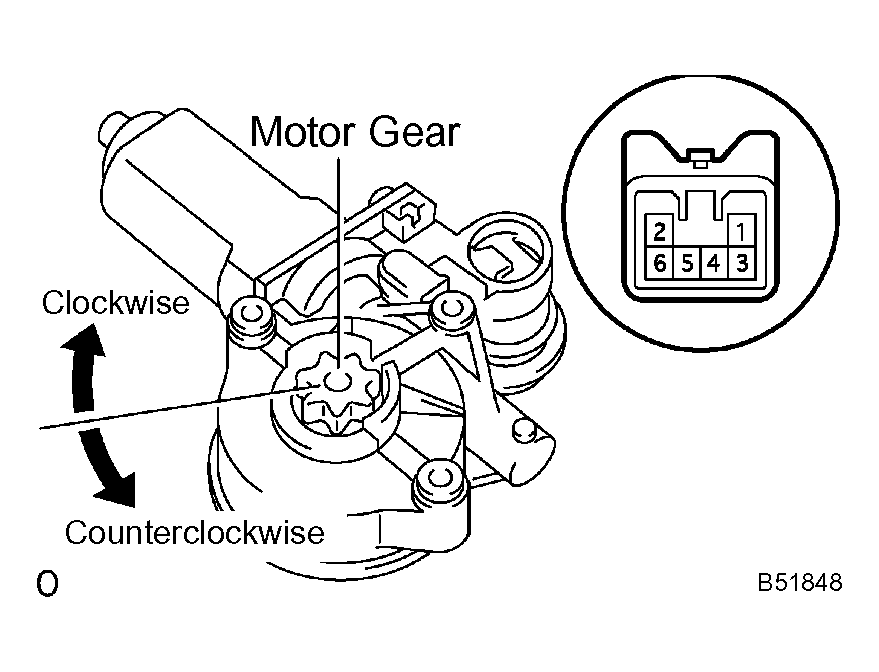

Fig 4: Checking Power Window Regulator Motor Assy RH Rotates Smoothly

NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH (REAR RH)

OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (MASTER SWITCH <==> SWITCH)
