Transfer Case Oil Seal: Components

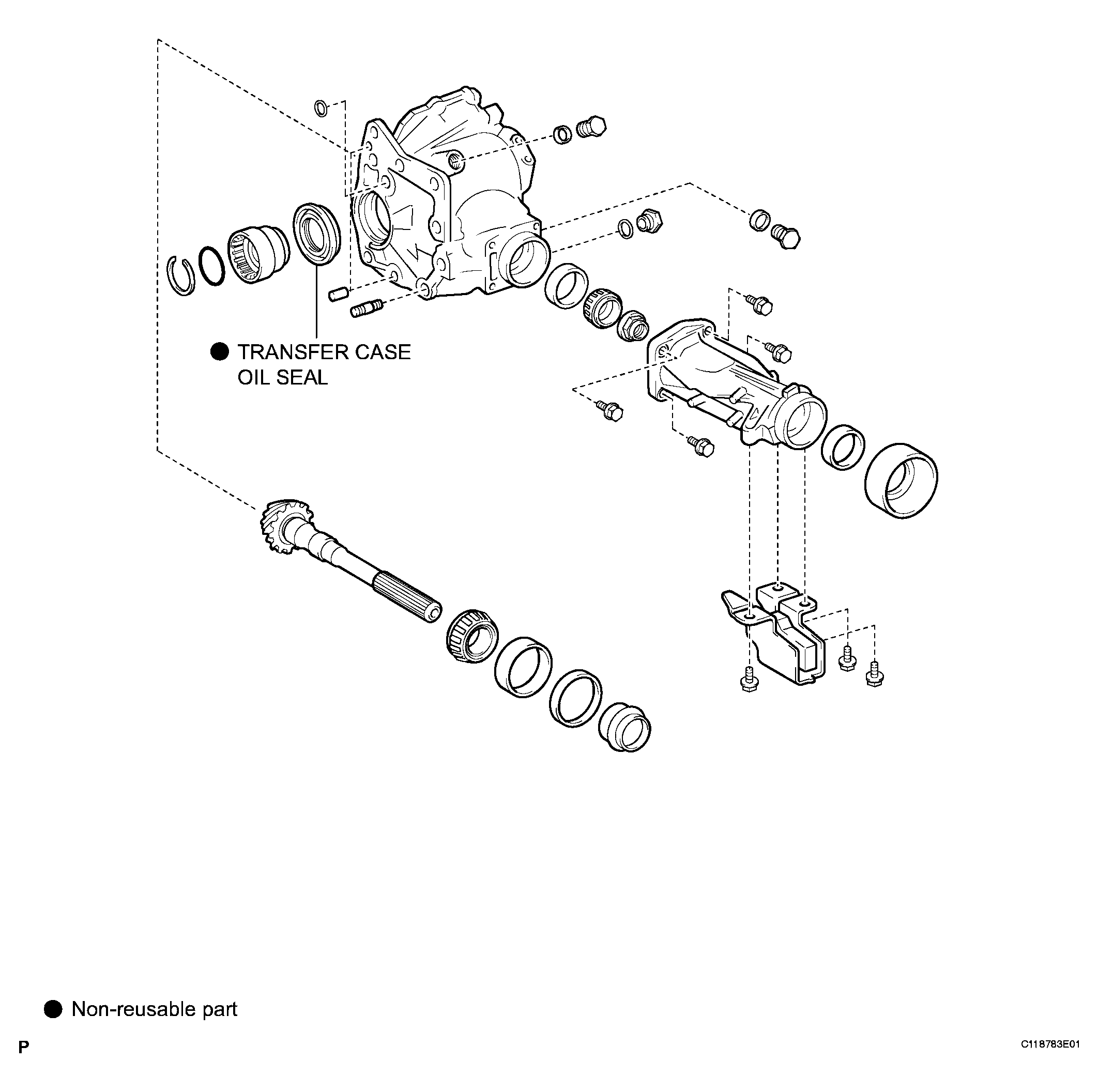

Fig 1: Identifying Transfer Case Oil Seal Components
G04089709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
