Radio Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE INSTRUMENT PANEL FINISH PLATE (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See REPLACEMENT )
REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (See REPLACEMENT )
REMOVE CONSOLE PANEL SUB-ASSY UPPER (See REPLACEMENT )
REMOVE AIR CONDITIONING CONTROL ASSY (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See REPLACEMENT )
REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET

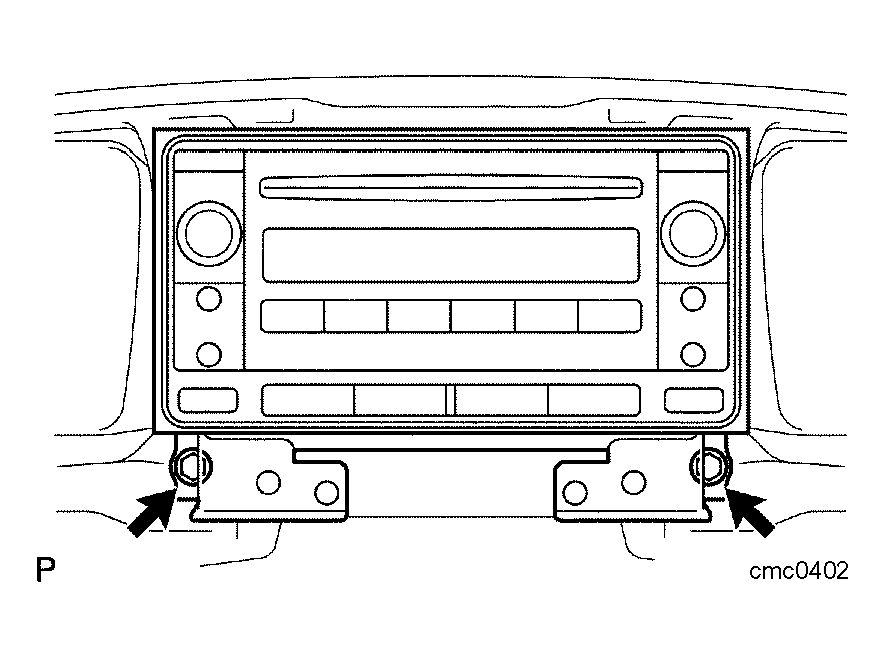

1. Remove the 2 bolts.
2. Disconnect the connectors and remove the radio receiver assembly w/bracket.

  Fig 1: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO.1

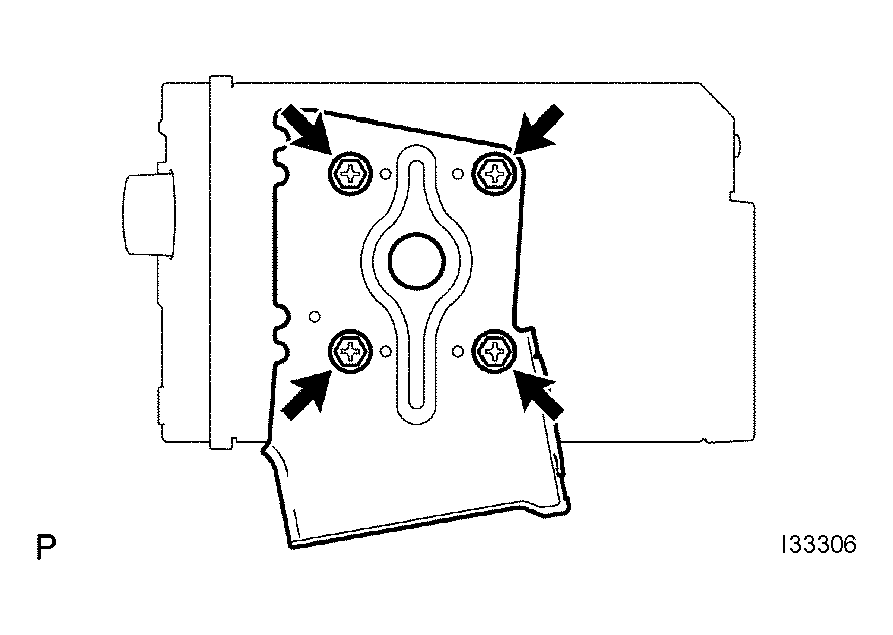

1. Remove the 4 screws and radio bracket No.1.

  Fig 2: Removing Screws & Radio Bracket No. 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO. 2

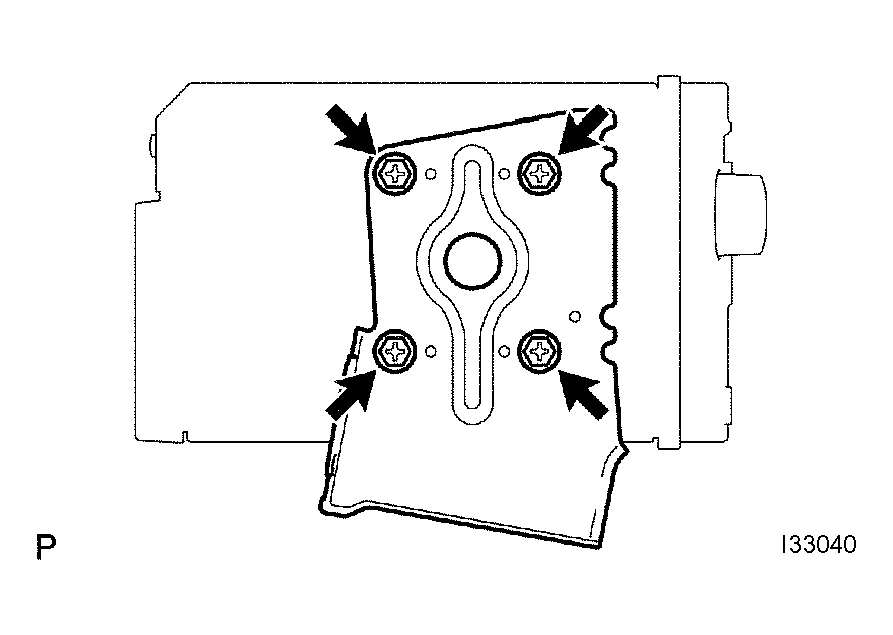

1. Remove the 4 screws and radio bracket No.2.

  Fig 3: Removing Screws & Radio Bracket No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
