Video (Video Adapter) Terminal: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

REMOVE CONSOLE PANEL SUB-ASSY UPPER (See REPLACEMENT )
REMOVE VIDEO (VIDEO ADAPTER) TERMINAL
1. Disconnect the connector.
2. Disengage the wire harness clamp.
3. Disengage the 4 claws and remove the video (video adapter) terminal.

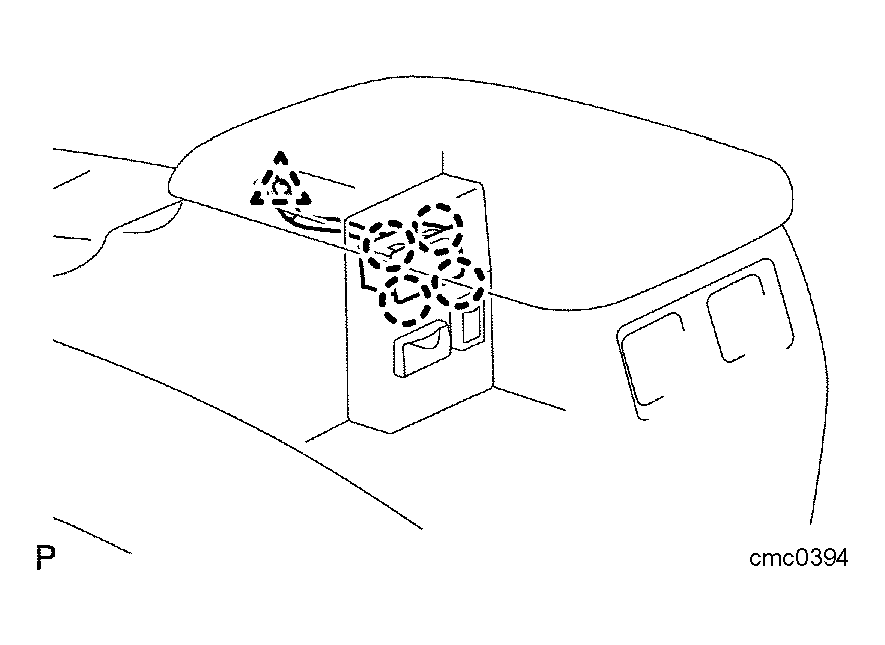

  Fig 1: Removing Claws & Video Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
