Dynamic Laser Cruise Control System

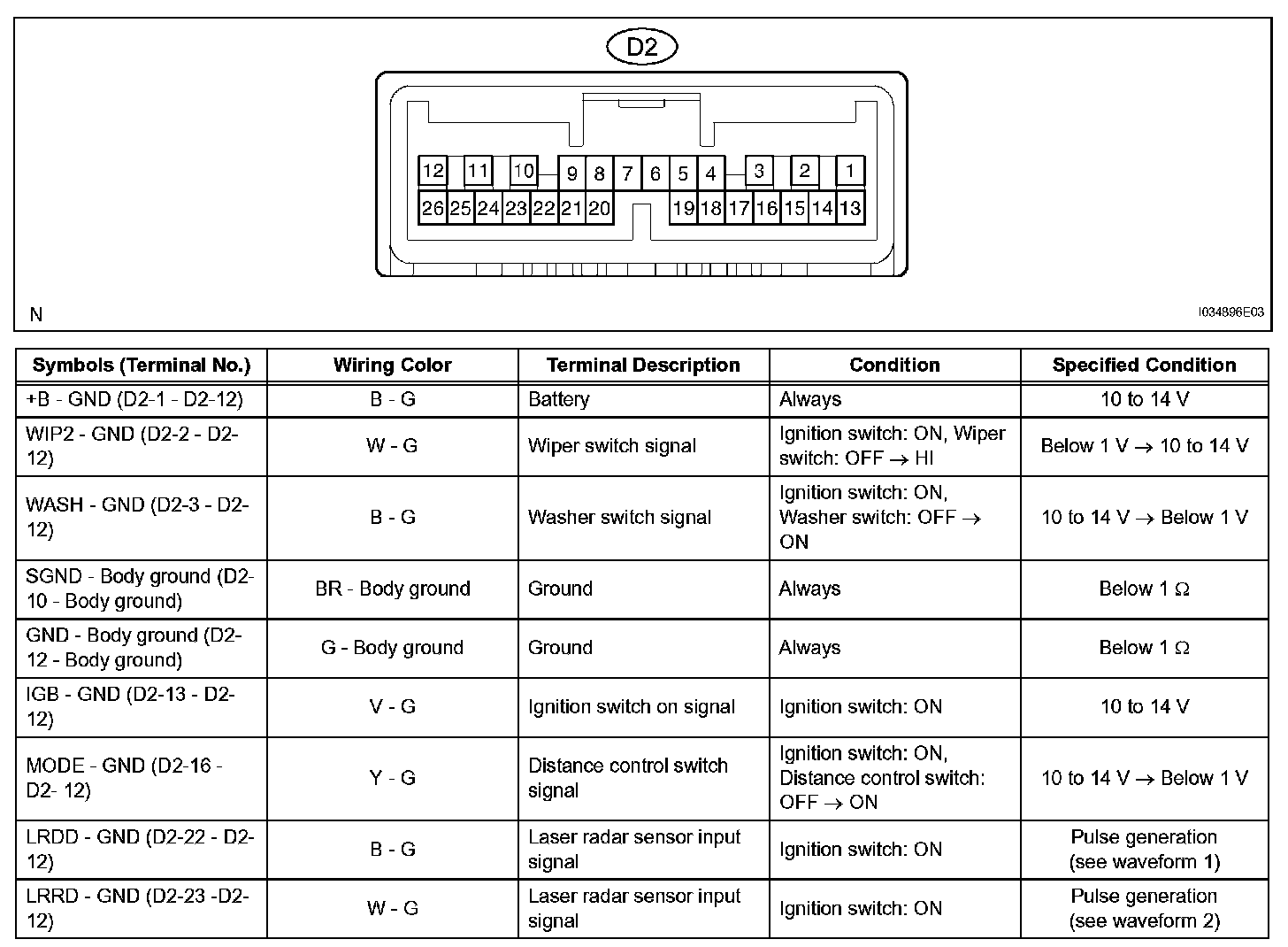

Terminals Of Control Module/Pinouts - Check Distance Control ECU:

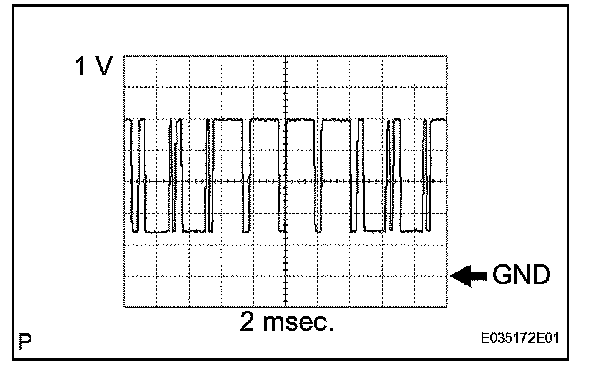

Oscilloscope Waveform:

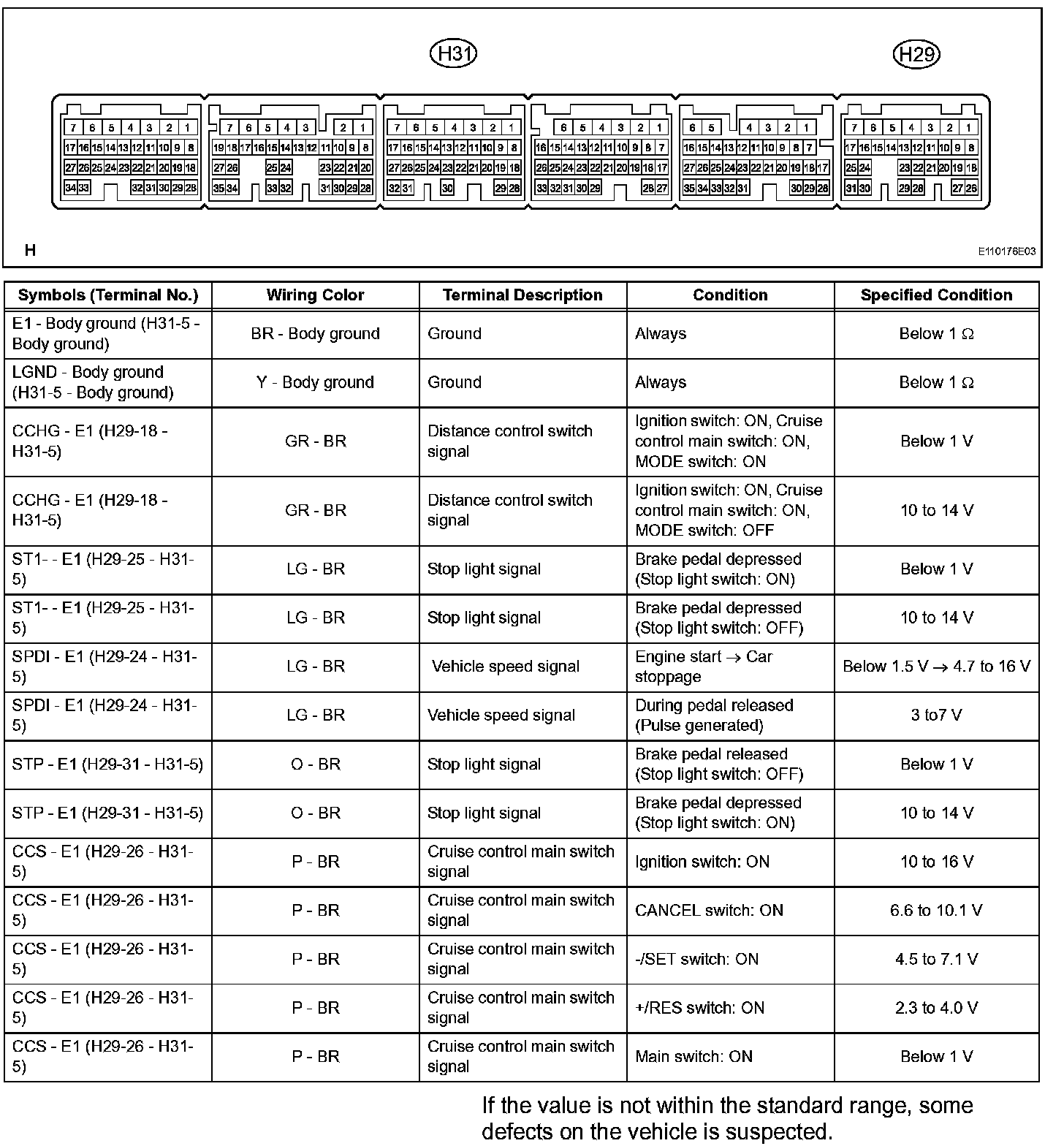

Terminals Of Control Module/Pinouts - Check Hybrid Vehicle Control ECU:

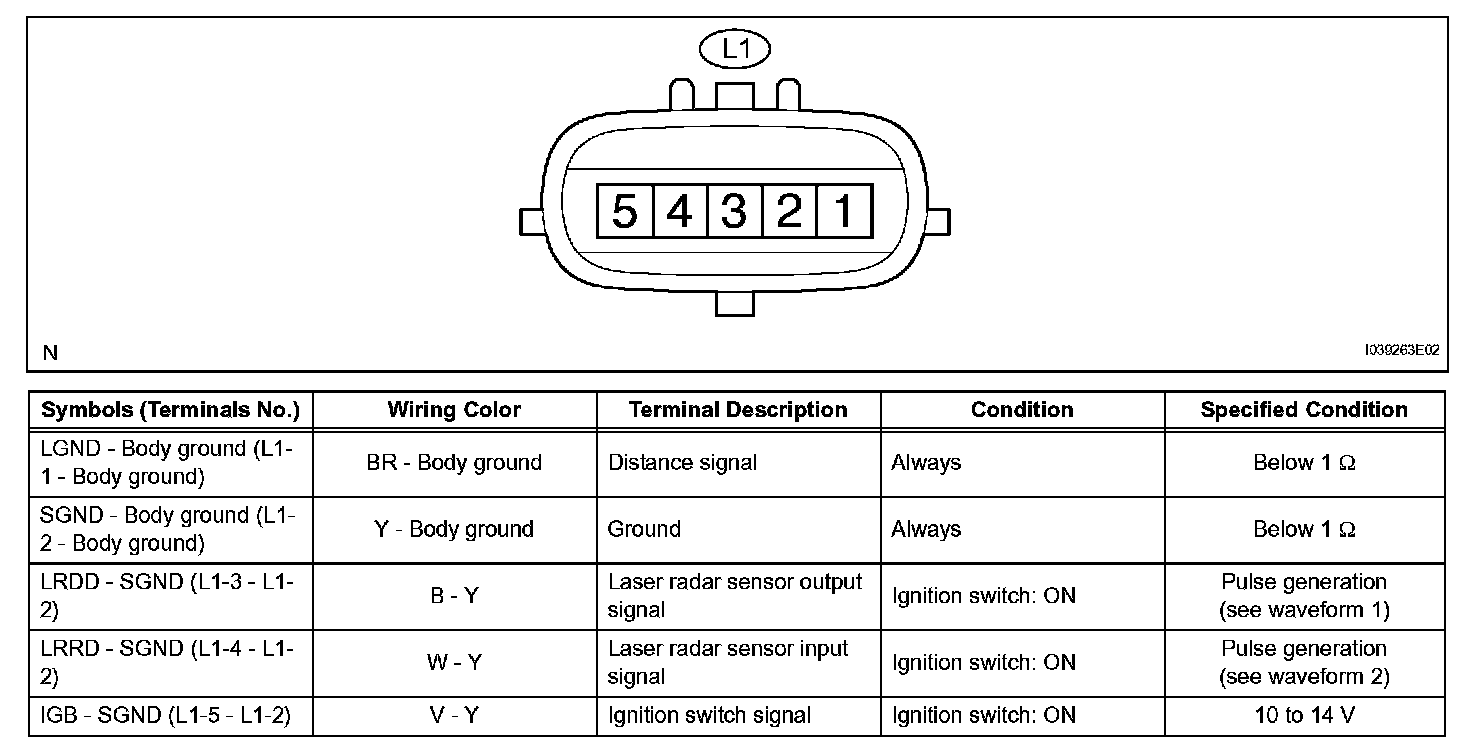

Terminals Of Control Module/Pinouts - Check Laser Sensor:

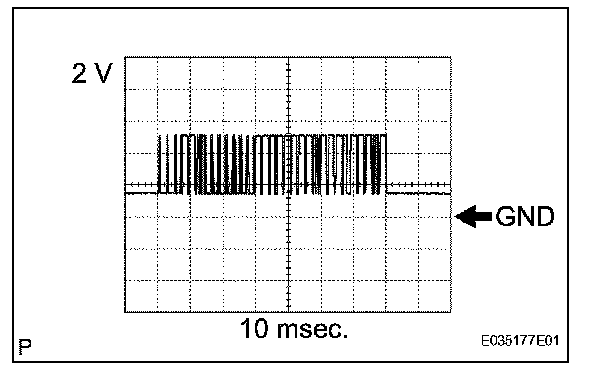

Oscilloscope Waveform:
