Power Window: Notes

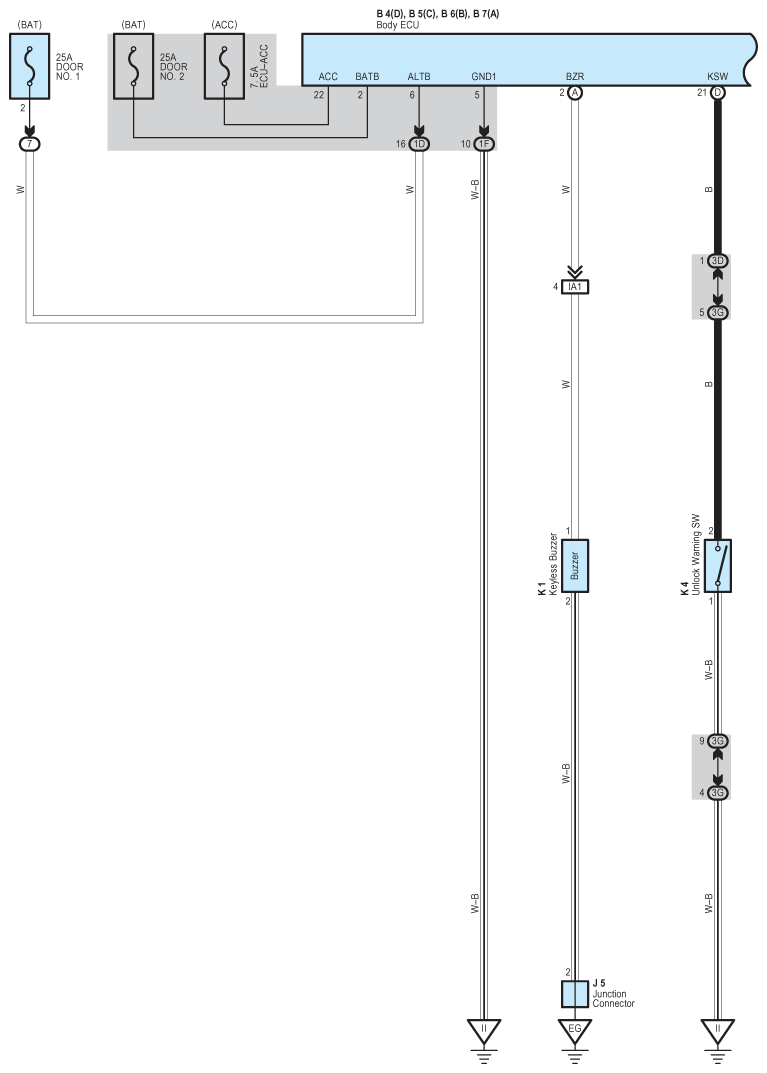

Fig 1: Power Window Wiring Diagram (1 Of 8)

G08914783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

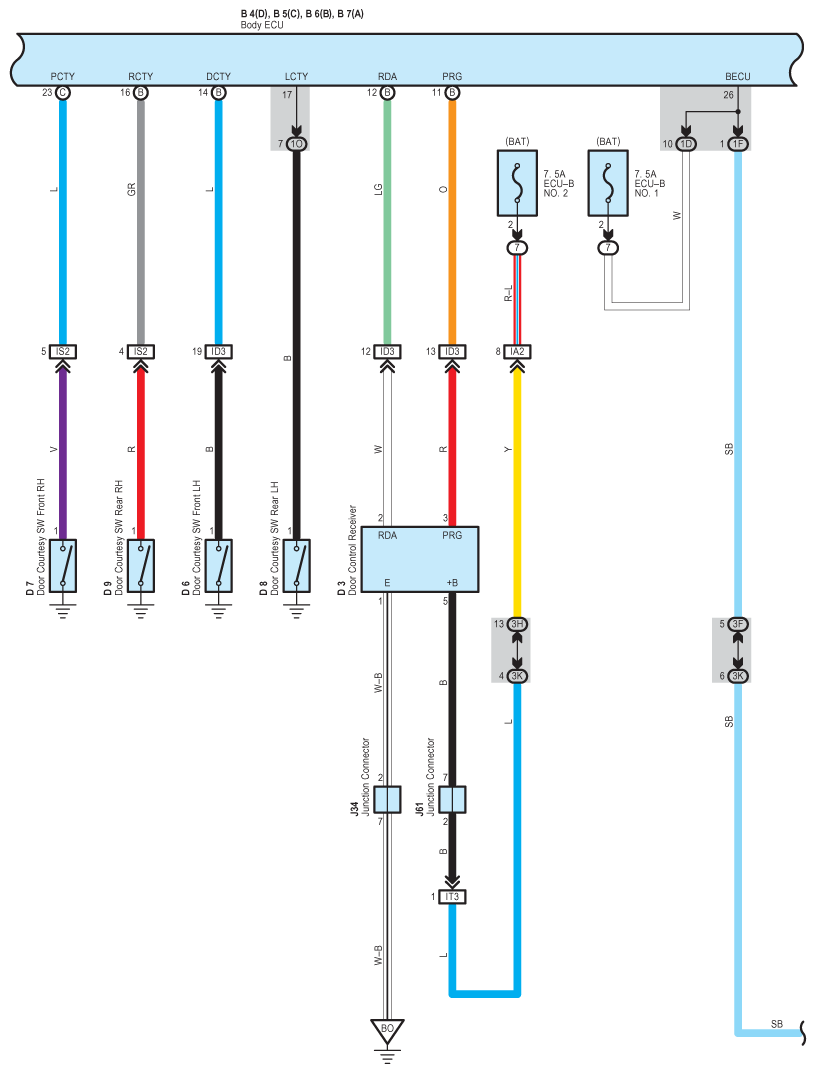

Fig 2: Power Window Wiring Diagram (2 Of 8)

G08914784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

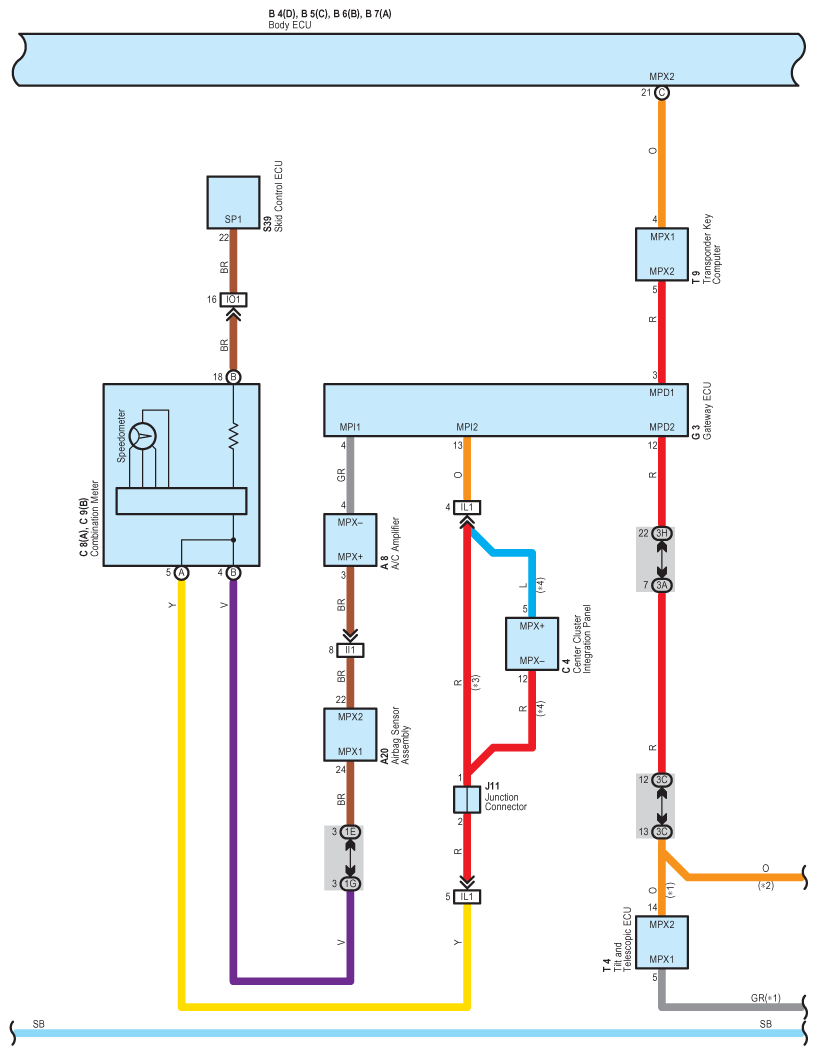

Fig 3: Power Window Wiring Diagram (3 Of 8)

G08914785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

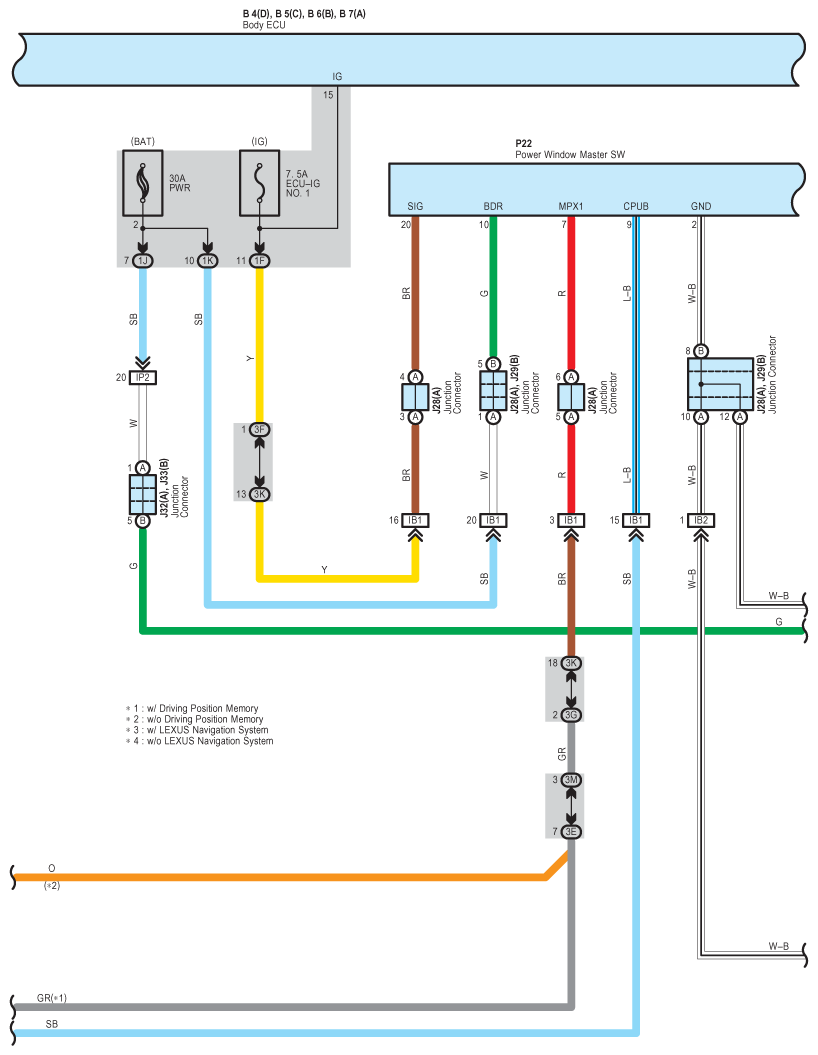

Fig 4: Power Window Wiring Diagram (4 Of 8)

G08914786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

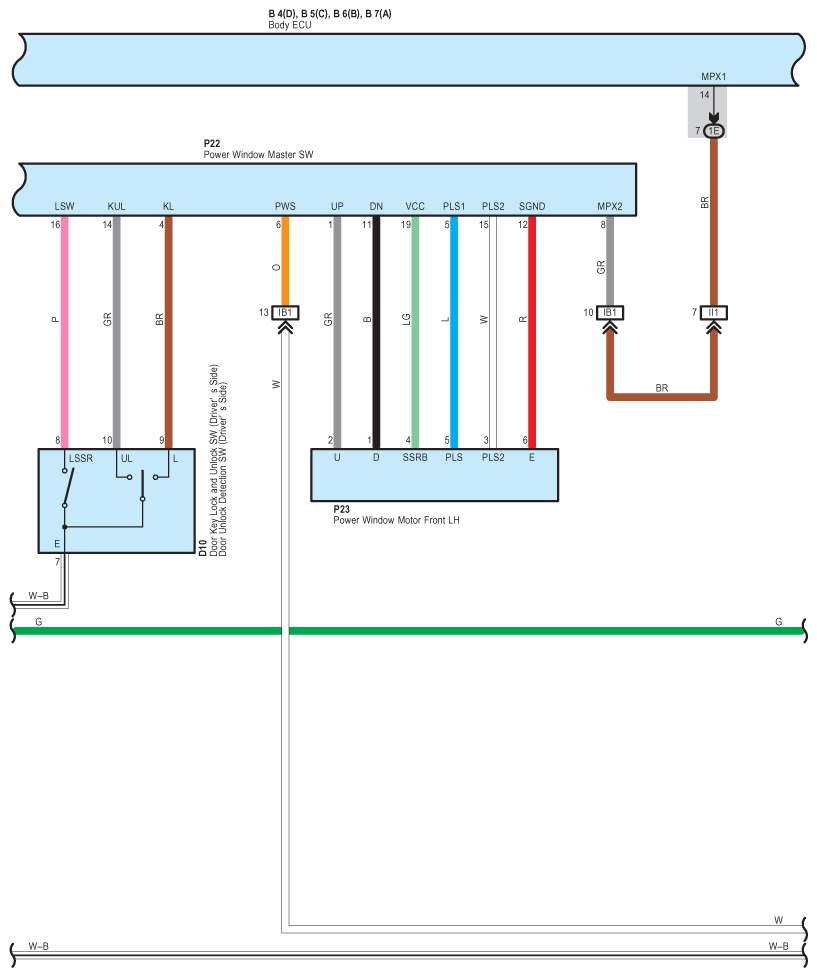

Fig 5: Power Window Wiring Diagram (5 Of 8)

G08914787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

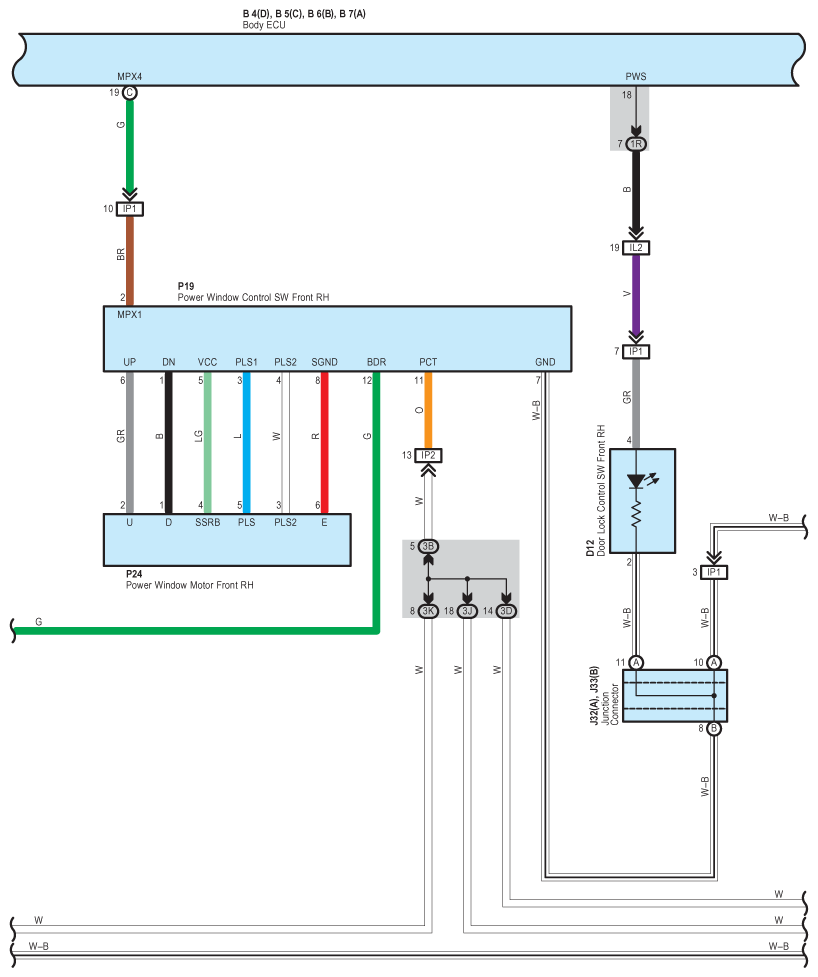

Fig 6: Power Window Wiring Diagram (6 Of 8)

G08914788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

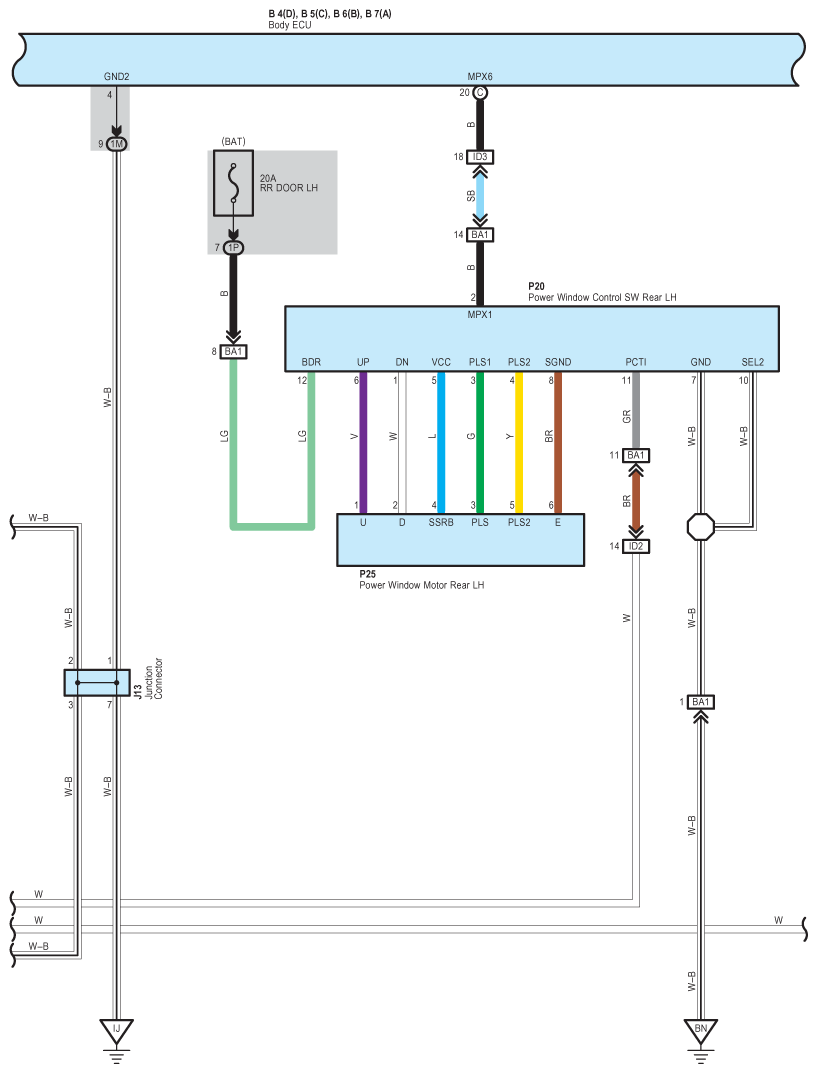

Fig 7: Power Window Wiring Diagram (7 Of 8)

G08914789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

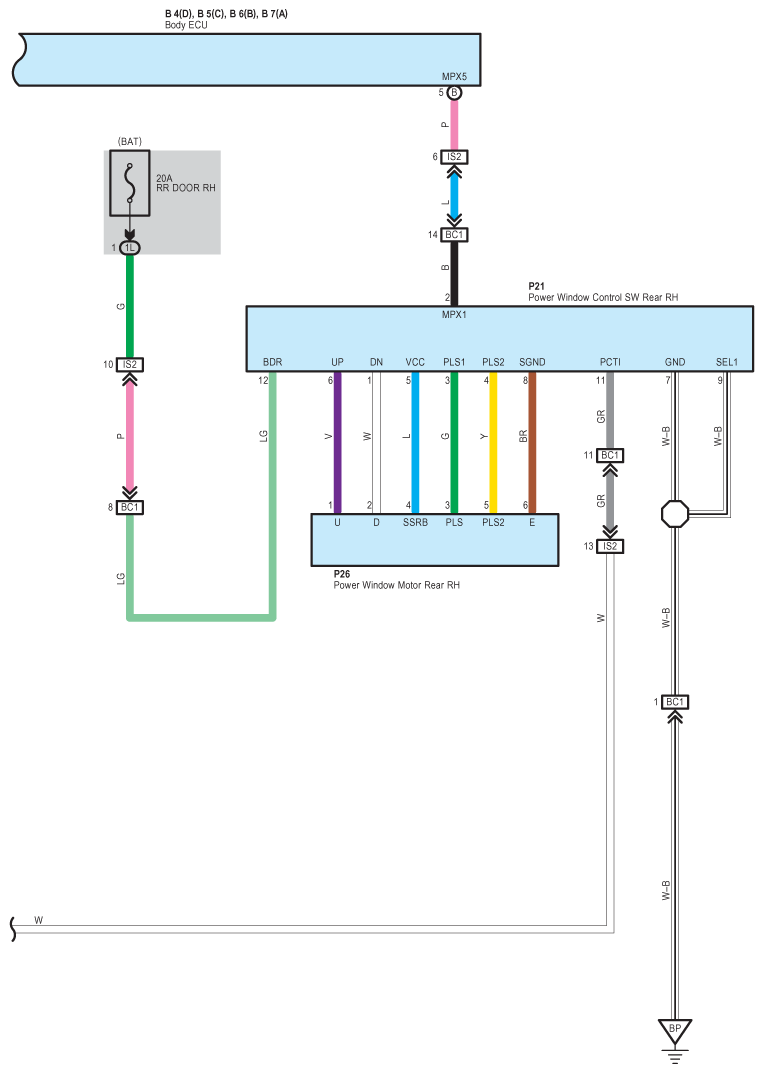

Fig 8: Power Window Wiring Diagram (8 Of 8)

G08914790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
