DTC U0073 Control Module Communication Bus OFF; DTC U0105 Lost Communication with ECM; DTC U0121 Lost Communication with Anti-lock Brake System (ABS) Control Module: Wiring Diagram

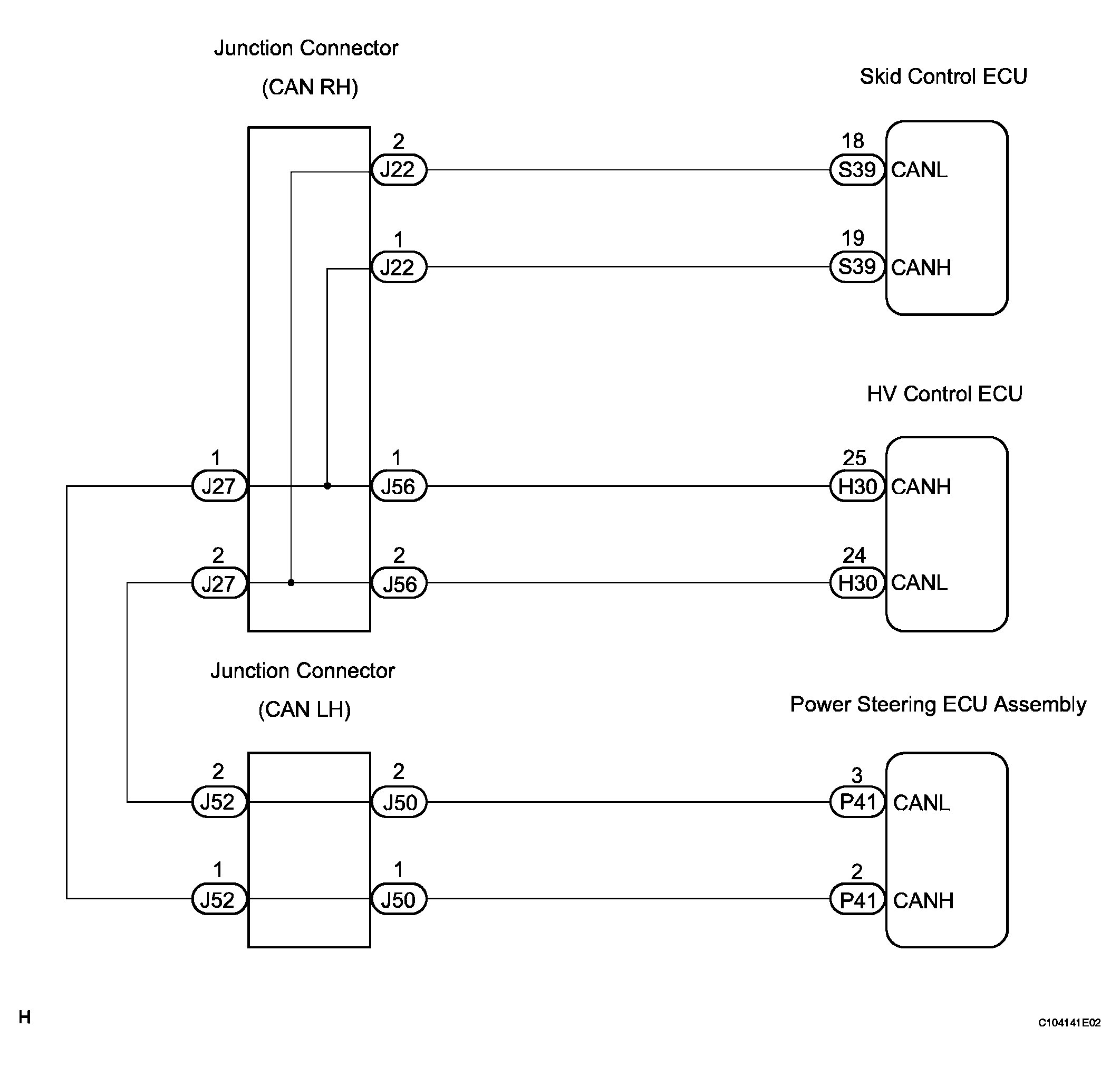

Fig 1: Identifying Control Module Communication Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
