Transaxle Transaxle Control Cable Assembly: Installation

  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Pull in the control cable to the body. Install the 3 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

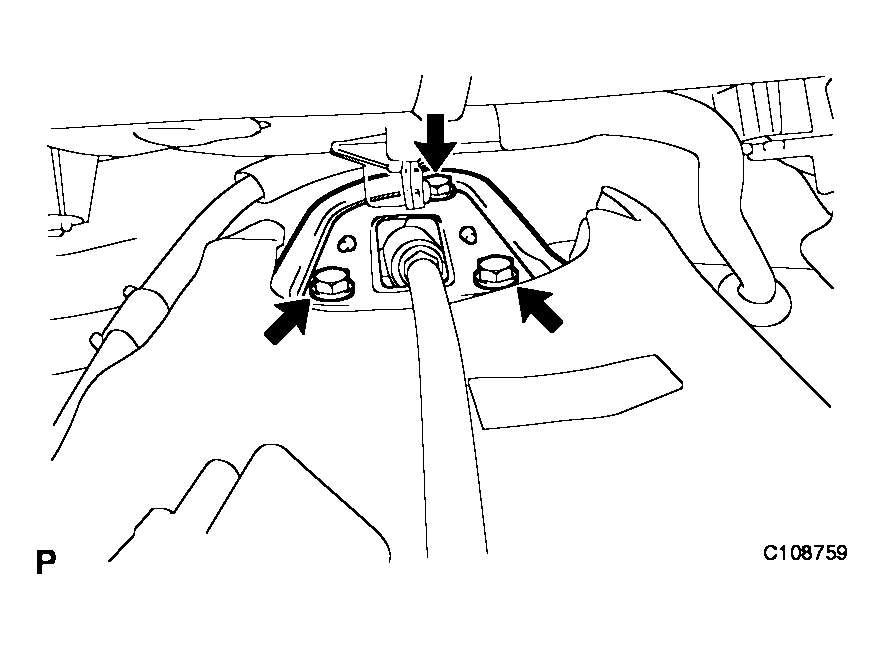

      Fig 1: Identifying Transmission Control Cable Assembly Bolts
      G04112768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR BAG SENSOR ASSEMBLY CENTER (See  REMOVAL  )
  3. INSTALL AIR DUCT REAR NO. 2
  4. INSTALL AIR DUCT REAR NO. 1
  5. INSTALL CONSOLE BOX DUCT NO. 1
  6. INSTALL SHIFT LEVER (See  INSTALLATION  )
  7. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. In the cabin
      1. Connect the socket of the transmission control cable assembly to the shift lever assembly.
      2. Turn the socket of the transmission control cable assembly clockwise and install the stopper cap.
        NOTE: Make sure that the transmission control cable assembly (socket) is firmly secured to the shift lever assembly.

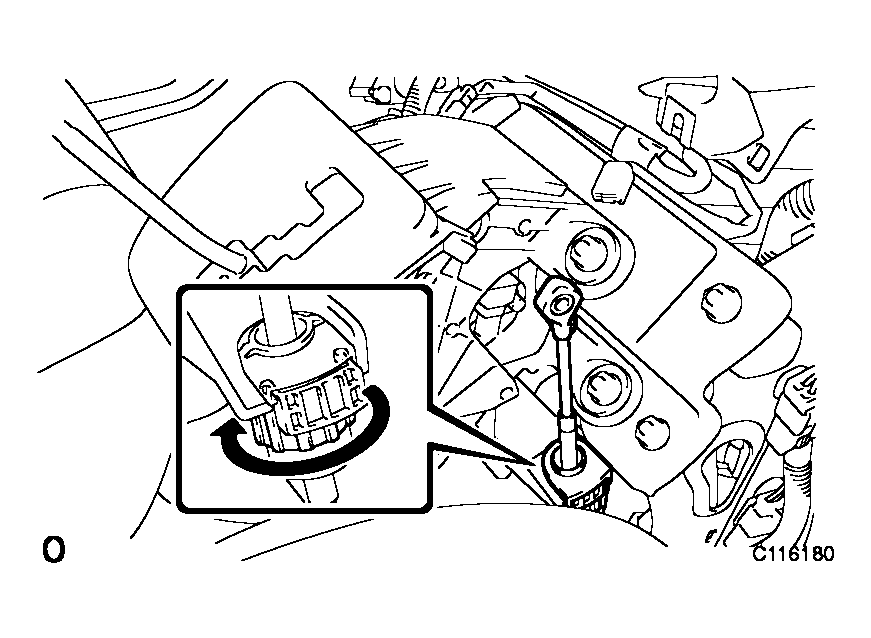

        Fig 2: Turning Socket Of Transmission Control Cable Assembly Clockwise And Installing Stopper Cap
        G04112769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Push the stopper cap to the socket as shown in the illustration.

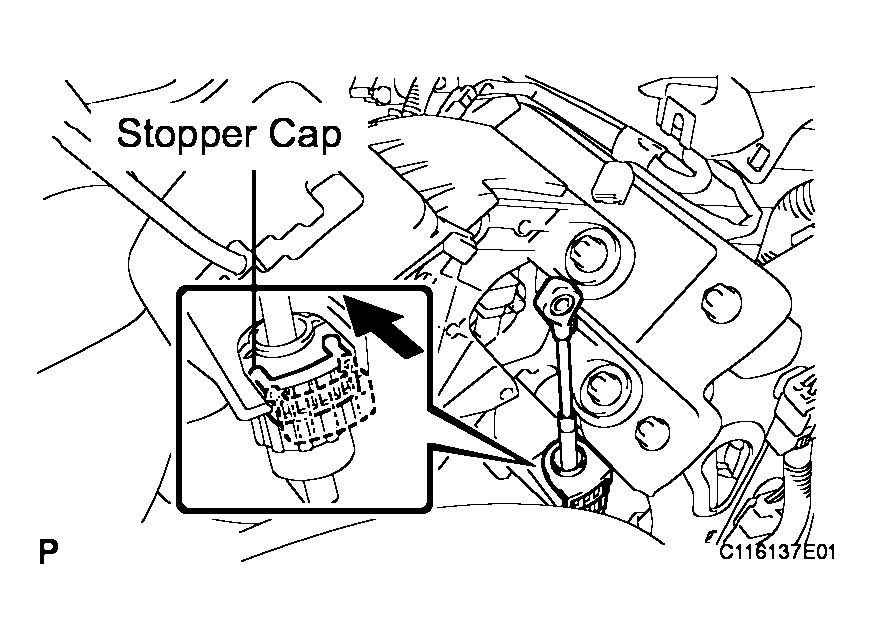

        Fig 3: Identifying Stopper Cap
        G04112770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Connect the control cable end to the shift lever assembly.
        NOTE:
        • Install the transmission control cable assembly with the graduated cuts to face upward to prevent torsion of the inner cable.
        • Push the cable end to the bottom of the pin.
        • Confirm that the connection between the socket and the shift lock control unit is fixed.

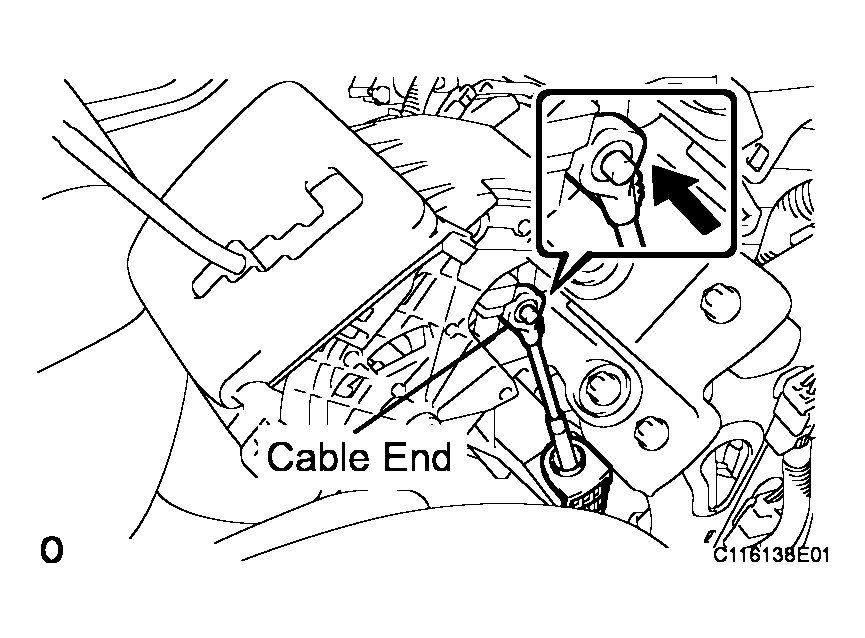

        Fig 4: Identifying Cable End
        G04112771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to the N position.
    3. In the engine compartment
      1. Connect the control cable to the control cable clamp.

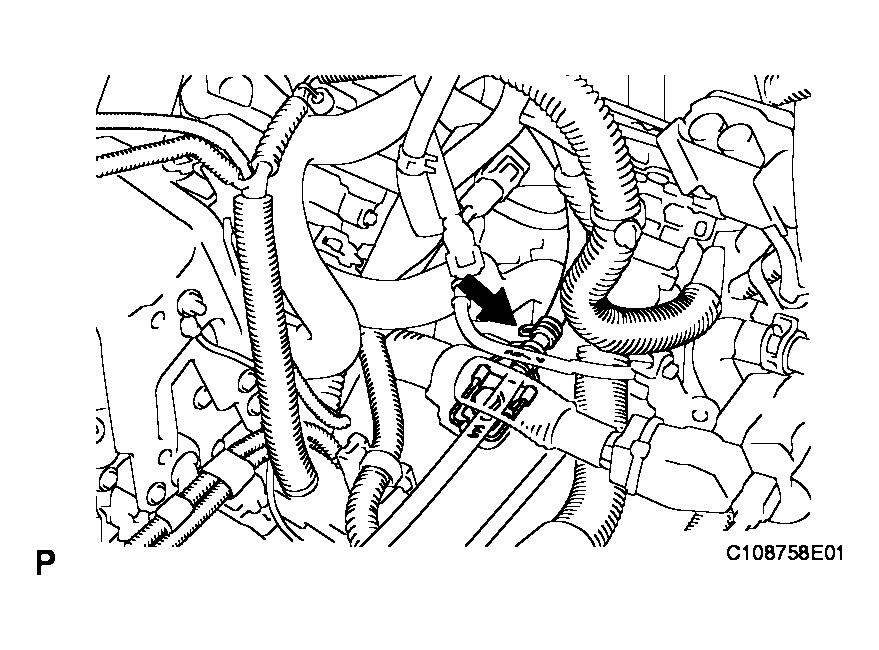

      Fig 5: Connecting Control Cable To Control Cable Clamp
      G04112772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Move the control shaft lever to the N position.
    5. Install a new clip to the control bracket.
    6. Install the control cable to the control bracket.
      NOTE:
      • Make sure that the A claws on the clip are securely fit into the bracket holes.
      • Make sure that the cable is securely installed inside of the B claws of the clip.

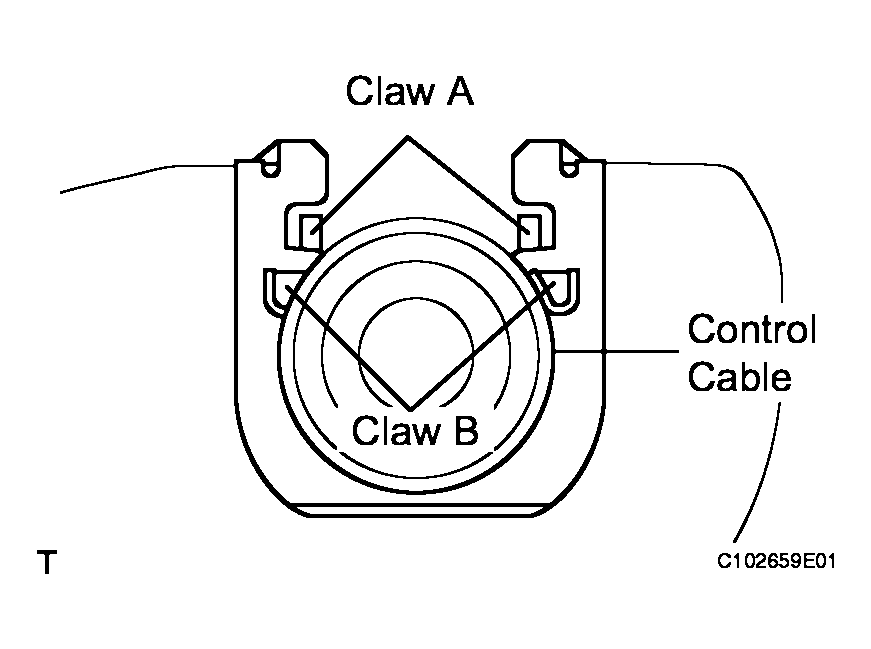

      Fig 6: Identifying Control Cable
      G04112773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Temporarily install the control cable to the control shaft lever with the nut.

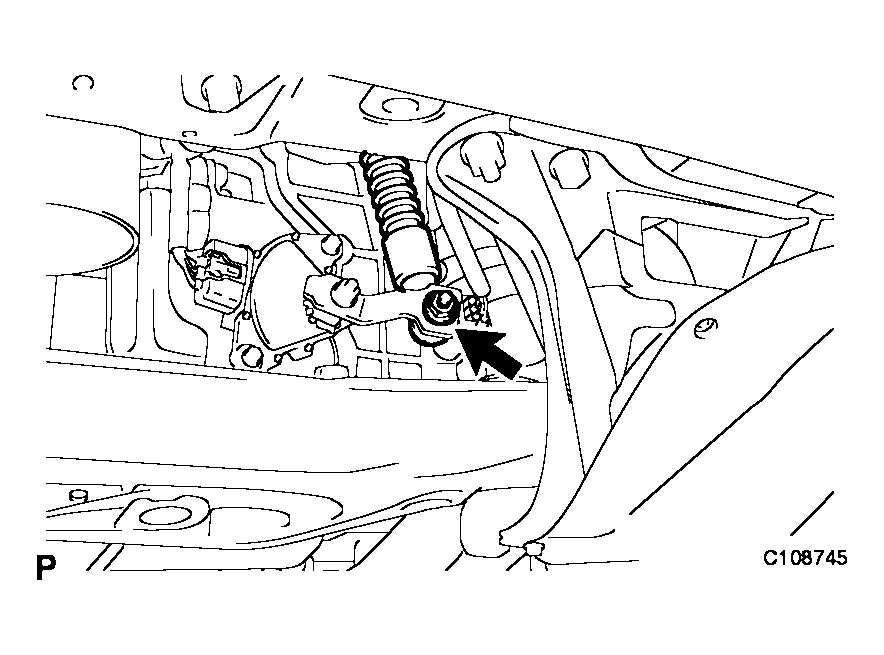

      Fig 7: Identifying Control Shaft Lever Nut
      G04112774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Lightly push up the control cable end.
      NOTE: Do not push the control cable end excessively.

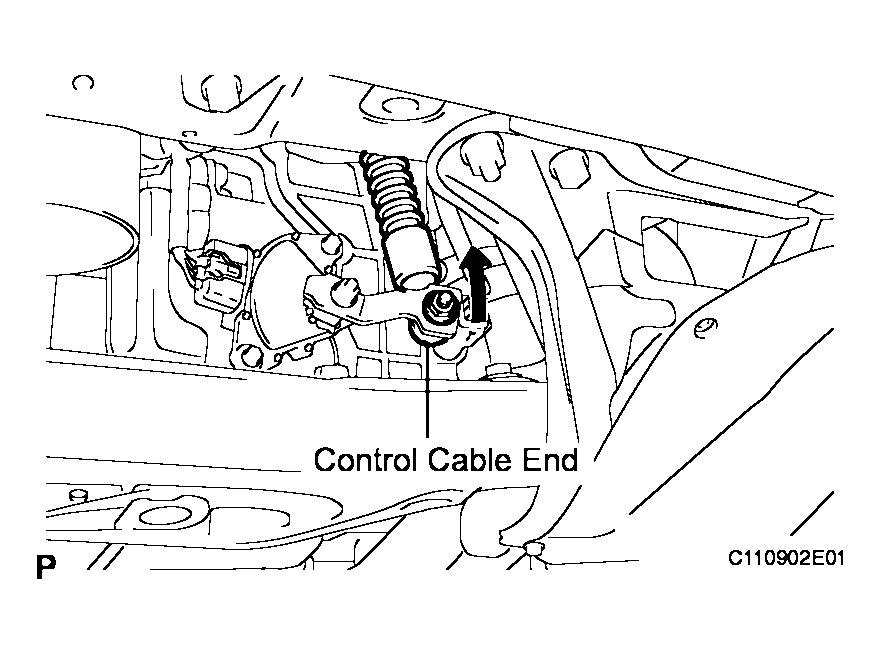

      Fig 8: Identifying Control Cable End
      G04112775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Release your hand from the control cable end and then fully tighten the nut.

      Torque: 15 N*m (150 kgf*cm, 11 in.*lbf)

  8. INSTALL CONSOLE COVER LOWER (See  INSTALLATION  )
  9. INSTALL CONSOLE BOX ASSEMBLY (See  INSTALLATION  )
  10. INSTALL CONSOLE BOX HOLE COVER NO. 2 (See  INSTALLATION  )
  11. INSTALL CONSOLE BOX HOLE COVER (See  INSTALLATION  )
  12. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 7 in  INSTALLATION  )
  13. INSTALL FLOOR CARPET COVER CENTER RH (See step 9 in  INSTALLATION  )
  14. INSTALL FLOOR CARPET COVER CENTER LH (See step 8 in  INSTALLATION  )
  15. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See step 10 in  INSTALLATION  )
  16. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2 (See step 11 in  INSTALLATION  )
  17. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH (See step 18 in  INSTALLATION  )
  18. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  19. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER (See step 17 in  INSTALLATION  )
  20. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH (See step 12 in  INSTALLATION  )
  21. INSTALL FRONT DOOR SCUFF PLATE RH (See step 13 in  INSTALLATION  )
  22. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER (See step 30 in  INSTALLATION  )
  23. INSTALL CONSOLE PANEL UPPER FRONT (See step 31 in  INSTALLATION  )
  24. INSTALL SHIFT LEVER KNOB (See step 14 in  INSTALLATION   )
  25. INSTALL INTAKE AIR SURGE TANK (See step 7 in  INSTALLATION  )
  26. INSTALL EMISSION CONTROL VALVE SET (See step 8 in  INSTALLATION  )
  27. INSTALL INVERTER BRACKET NO. 1 (See step 65 in  INSTALLATION  )
  28. INSTALL W/CONVERTER INVERTER ASSEMBLY

    (See INSTALLATION )

  29. PERFORM INITIALIZATION

    (See INITIALIZATION )
