Transaxle Transaxle Control Cable Assembly: Removal

  1. PRECAUTION

    (See Step No. 5 under REPAIR INSTRUCTION )

  2. REMOVE W/CONVERTER INVERTER ASSEMBLY

    (See REMOVAL )

  3. REMOVE INVERTER BRACKET NO. 1 (See step 50 in  REMOVAL  )
  4. REMOVE EMISSION CONTROL VALVE SET (See step 19 in  REMOVAL  )
  5. REMOVE INTAKE AIR SURGE TANK (See step 20 in  REMOVAL  )
  6. REMOVE SHIFT LEVER KNOB (See  REMOVAL   )
  7. REMOVE CONSOLE PANEL UPPER FRONT (See  REMOVAL  )
  8. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REMOVAL  )
  9. REMOVE FRONT DOOR SCUFF PLATE RH (See step 22 in  REMOVAL  )
  10. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (See step 23 in  REMOVAL  )
  11. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER (See step 20 in  REMOVAL  )
  12. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  13. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH (See step 17 in  REMOVAL  )
  14. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO. 2 (See step 24 in  REMOVAL  )
  15. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See step 25 in  REMOVAL  )
  16. REMOVE FLOOR CARPET COVER CENTER LH (See step 26 in  REMOVAL  )
  17. REMOVE FLOOR CARPET COVER CENTER RH (See step 27 in  REMOVAL  )
  18. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 28 in  REMOVAL  )
  19. REMOVE CONSOLE BOX HOLE COVER (See  REMOVAL  )
  20. REMOVE CONSOLE BOX HOLE COVER NO. 2 (See  REMOVAL  )
  21. REMOVE CONSOLE BOX ASSEMBLY (See  REMOVAL  )
  22. REMOVE CONSOLE COVER LOWER (See  REMOVAL  )
  23. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. In the engine compartment
      1. Remove the nut from the control shaft lever.

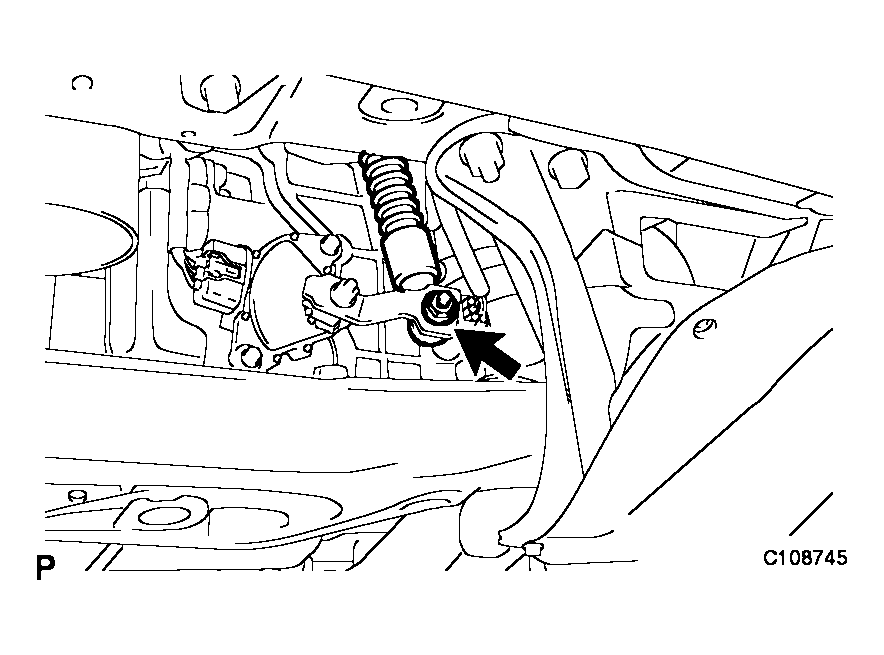

        Fig 1: Removing Control Shaft Lever Nut
        G04112761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the clip and disconnect the control cable from the control cable bracket.

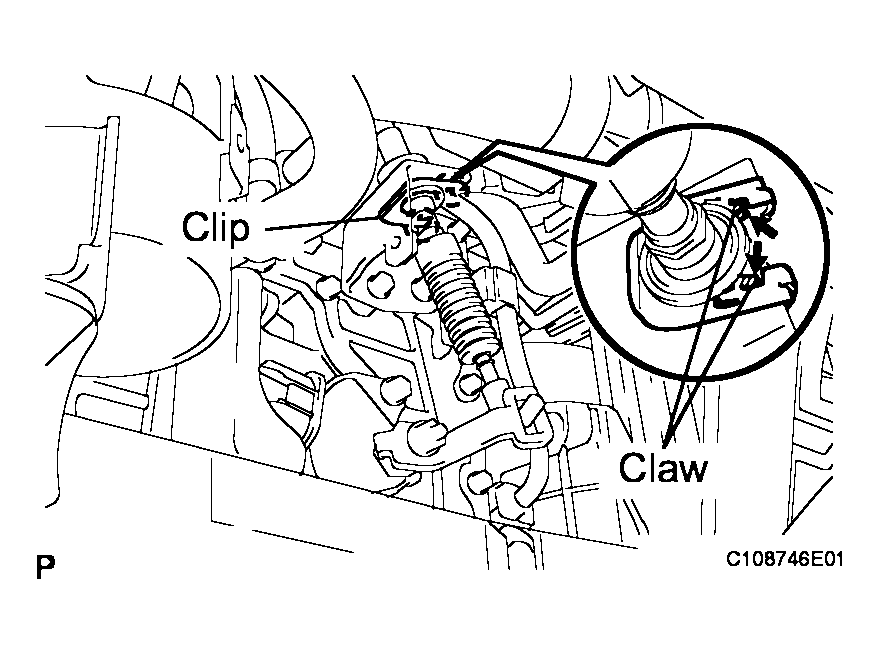

        Fig 2: Identifying Clip
        G04112762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the control cable from the control cable bracket No. 2.

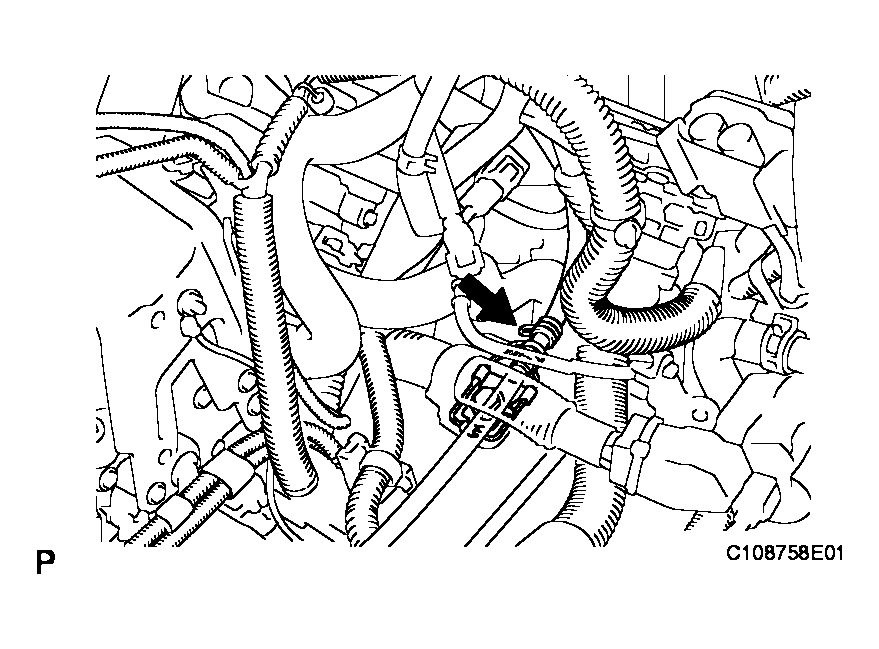

      Fig 3: Identifying Control Cable
      G04112763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. In the cabin
      1. Using a screwdriver, disconnect the cable end from the shift lever assembly.

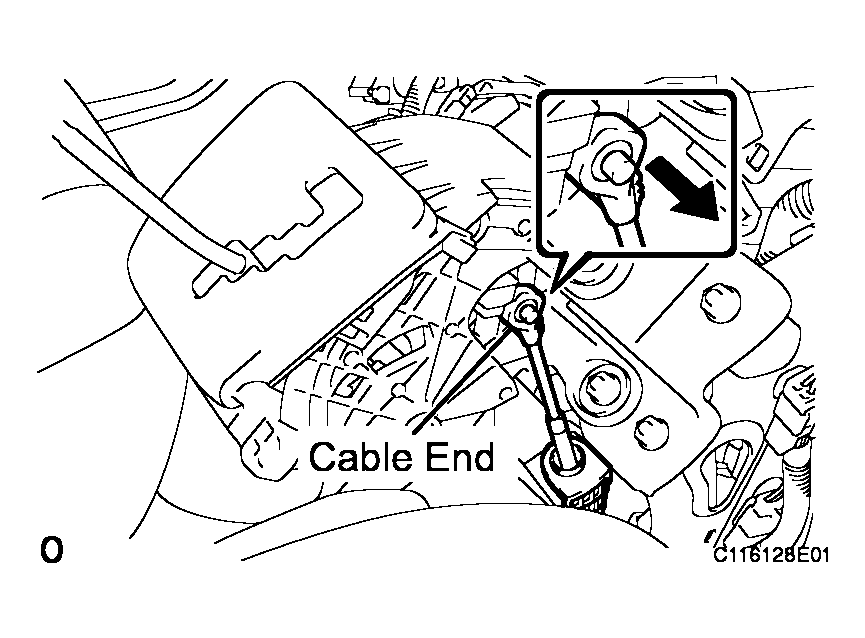

        Fig 4: Identifying Cable End
        G04112764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Pull out the stopper cap of the transmission control cable assembly.

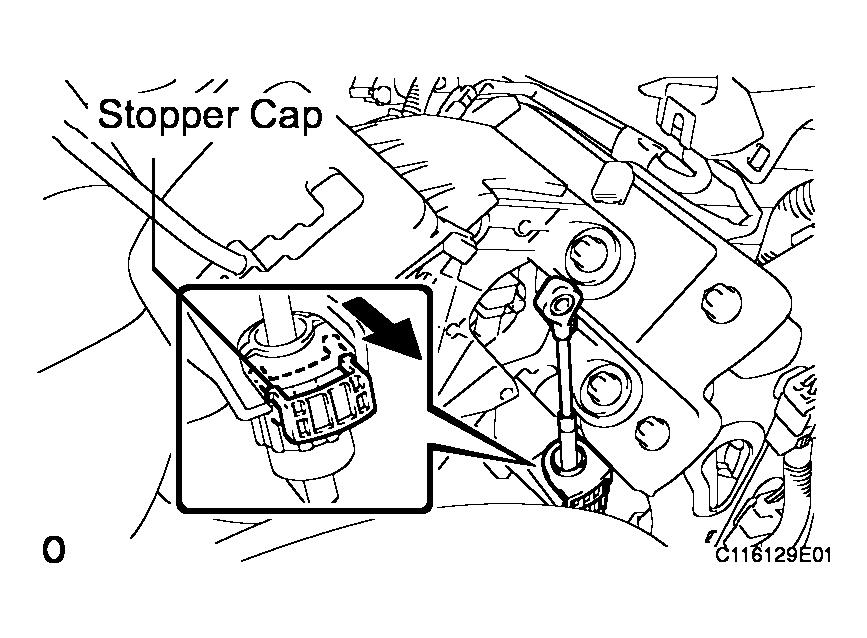

        Fig 5: Identifying Stopper Cap
        G04112765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Turn the socket of the transmission control cable counterclockwise and remove the stopper cap.
        NOTE: Do not push in the stopper cap.

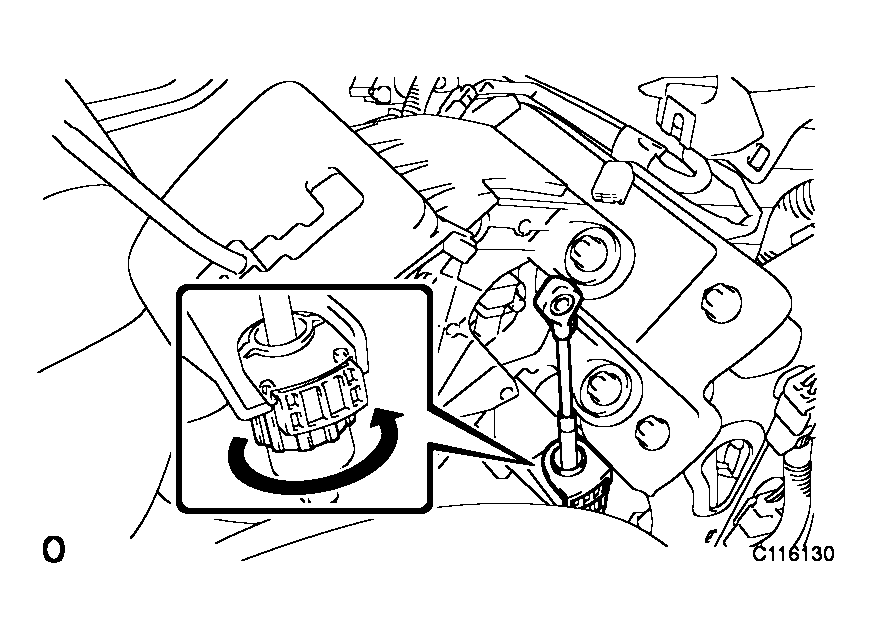

        Fig 6: Turning Socket Of Transmission Control Cable Counterclockwise And Removing Stopper Cap
        G04112766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE SHIFT LEVER (See  REMOVAL   )
  25. REMOVE CONSOLE BOX DUCT NO. 1
  26. REMOVE AIR DUCT REAR NO. 1 (See step 16 in  REMOVAL  )
  27. REMOVE AIR DUCT REAR NO. 2 (See step 15 in  REMOVAL  )
  28. REMOVE AIR BAG SENSOR ASSEMBLY CENTER (See  REMOVAL  )
  29. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the 3 bolts.
    2. Pull out the control cable from the body.

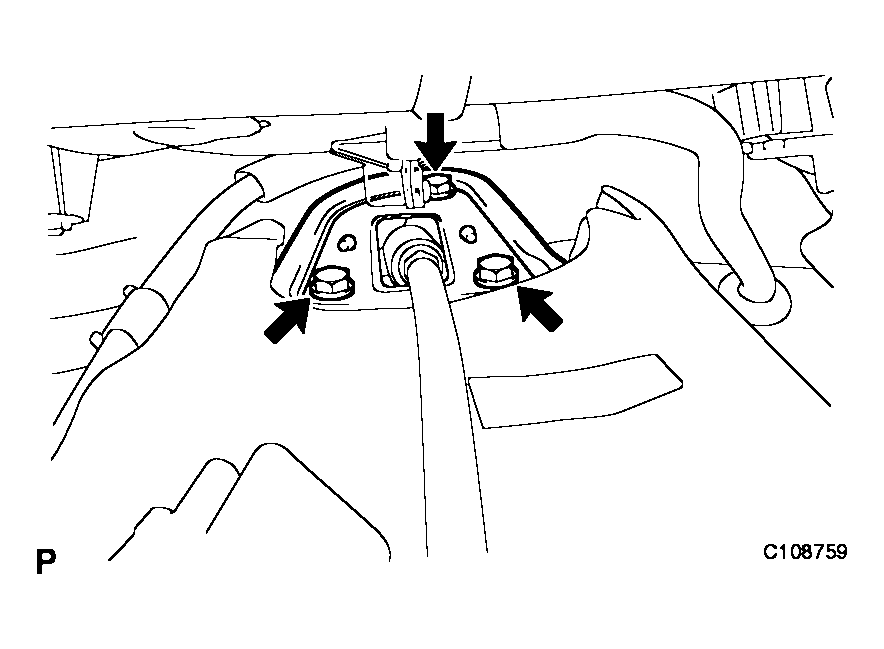

      Fig 7: Identifying Transmission Control Cable Assembly Bolts
      G04112767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
