DTC Check / Clear
- DTC CHECK/CLEAR (WHEN USING INTELLIGENT TESTER):
- DTC check

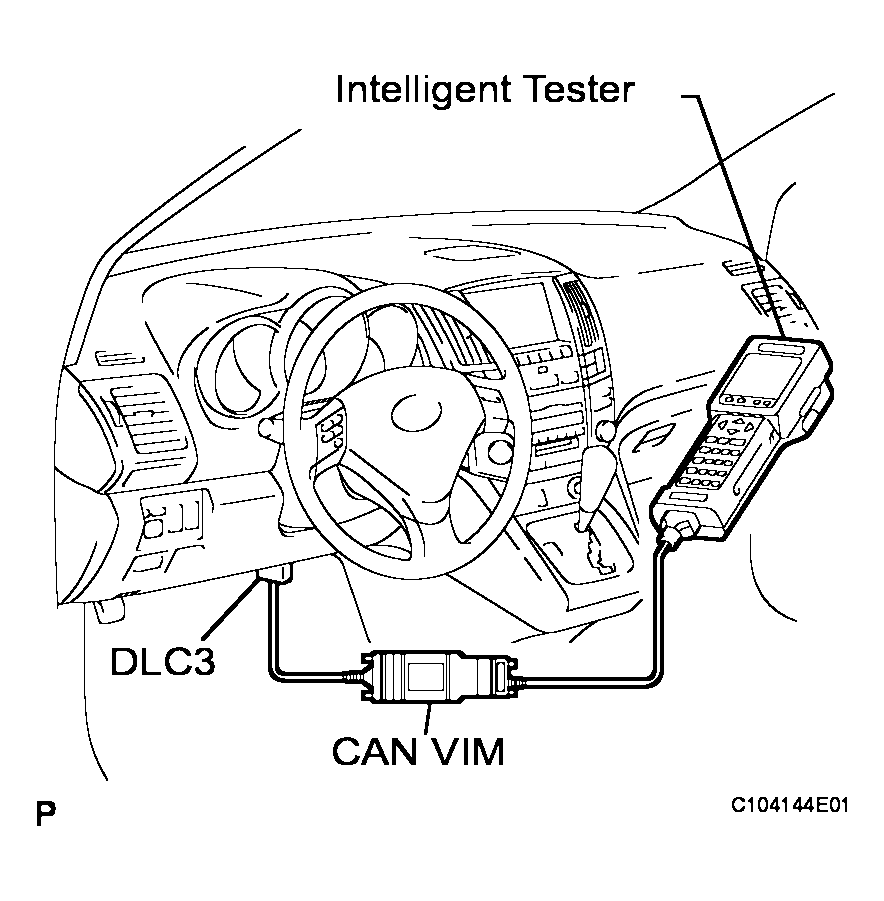

- Connect the intelligent tester to the DLC3.
- Turn the ignition switch on.
- Read the DTCs following the prompts on the tester screen.
- DTC clear
- Connect the intelligent tester to the DLC3.
- Turn the ignition switch on.
- Operate the intelligent tester to clear the codes.
HINT:
Refer to the intelligent tester operator's manual for further details.
- DTC check
- DTC CHECK/CLEAR (WHEN USING SST CHECK WIRE):
- DTC check

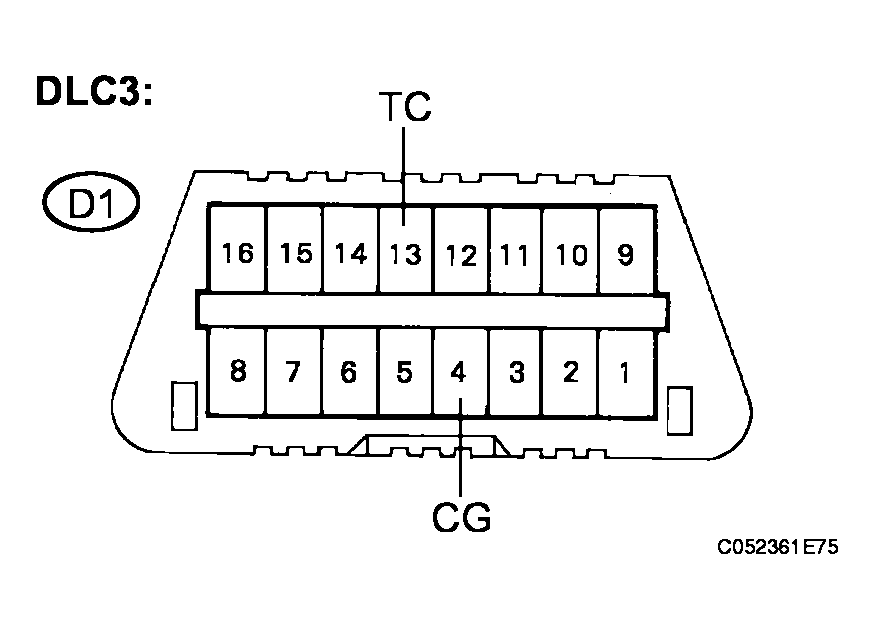

- Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040
- Turn the ignition switch on.
- Read DTC from the ABS and brake control warning lights on the combination meter and multi information display.
HINT:
- If no code appears, inspect the TC and CG terminal circuit, and ABS and brake control warning light circuits.TROUBLE AREA REFERENCE

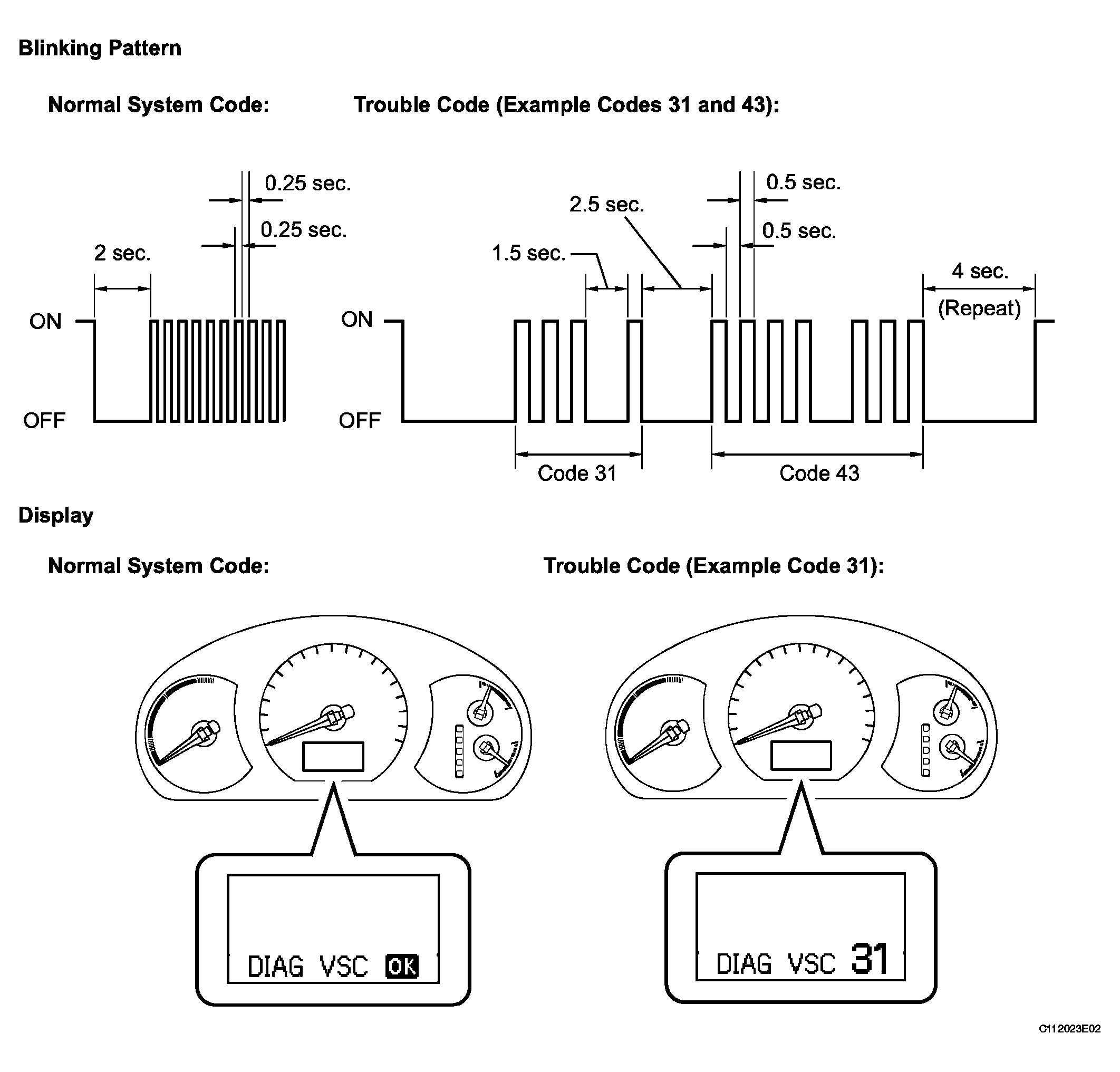

Trouble Area See Procedure TC AND CG TERMINAL CIRCUIT TC AND CG TERMINAL CIRCUIT ABS warning light circuit ABS WARNING LIGHT REMAINS ON or ABS WARNING LIGHT DOES NOT COME ON Brake control warning light circuit BRAKE CONTROL WARNING LIGHT REMAINS ON or BRAKE CONTROL WARNING LIGHT DOES NOT COME ON - As an example, the illustration below shows the blinking patterns of the normal system code and trouble codes 31 and 43, and display of the normal system code and trouble code 31 on the multi information display.
- If no code appears, inspect the TC and CG terminal circuit, and ABS and brake control warning light circuits.
- Codes are explained in the code table (See DIAGNOSTIC TROUBLE CODE CHART )
- After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display. If 2 or more DTCs are detected at the same time, the DTCs will be displayed in ascending order.
- Using SST, connect terminals TC and CG of the DLC3.
- DTC clear
- Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040
- Turn the ignition switch on.

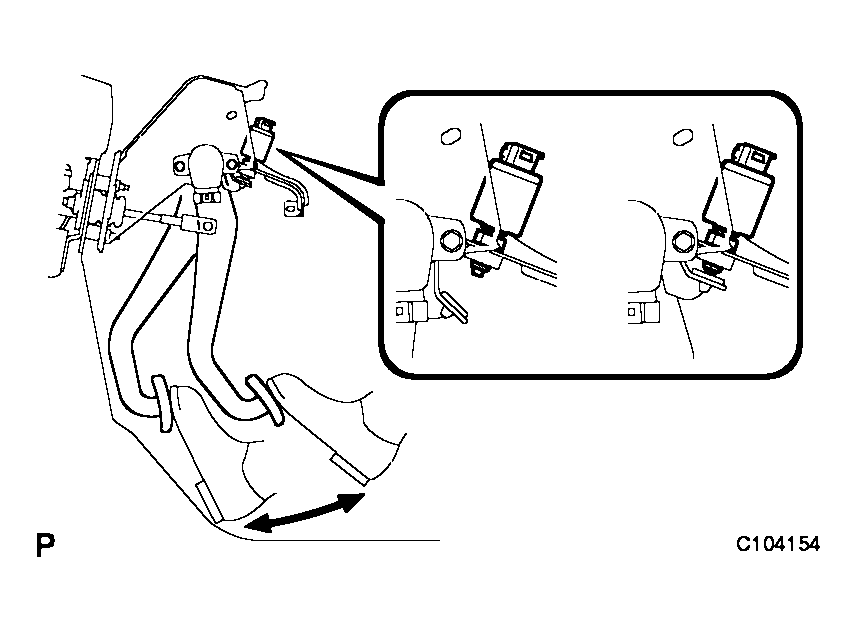

- Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
- Check that the ABS warning and brake control lights and multi information display indicate the normal system code.
- Remove the SST from the terminals of the DLC3.
HINT:
Clearing the DTCs cannot be performed by removing the battery cable or the ECU-IG NO.1 fuse.
- Using SST, connect terminals TC and CG of the DLC3.
- DTC check
- END OF DTC CHECK/CLEAR (WHEN USING SST CHECK WIRE):
- Turn the ignition switch on.
- Check that the ABS and brake control warning lights go off within approximately 3 seconds.
