Ignition Relay: Testing and Inspection

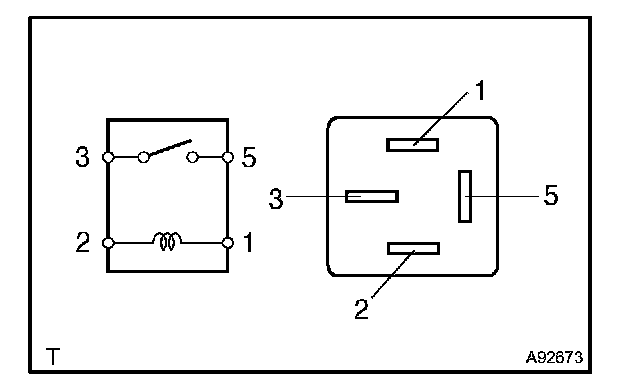

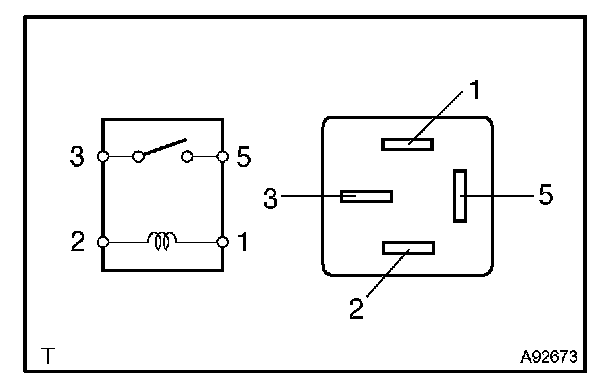

INSPECT RELAY (Marking: IG1, HTR)

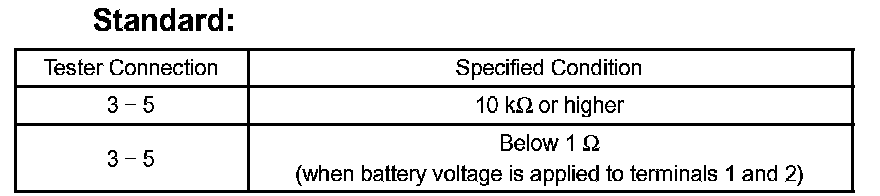

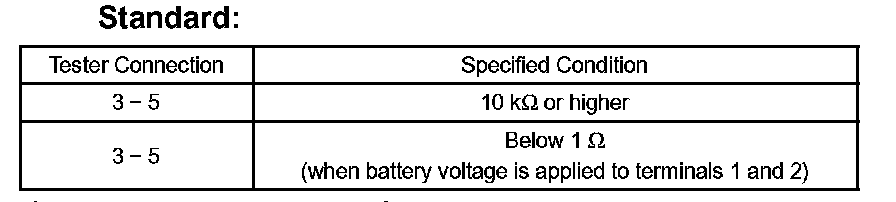

a. Measure the resistance of the relay. If the result is not as specified, replace the relay.
