Power Tilt and Power Telescopic Steering Column
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Tilt and Power Telescopic Steering Column

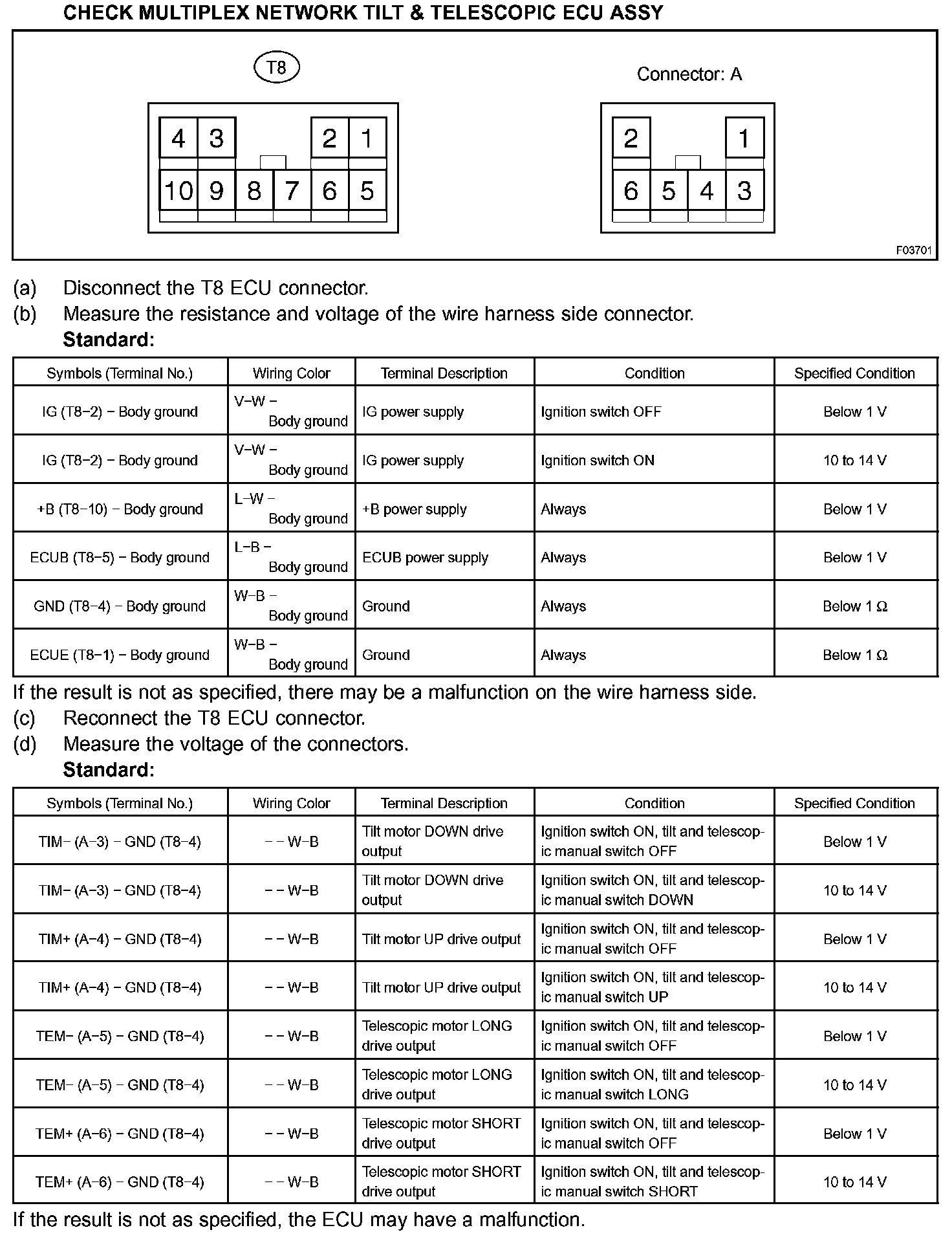

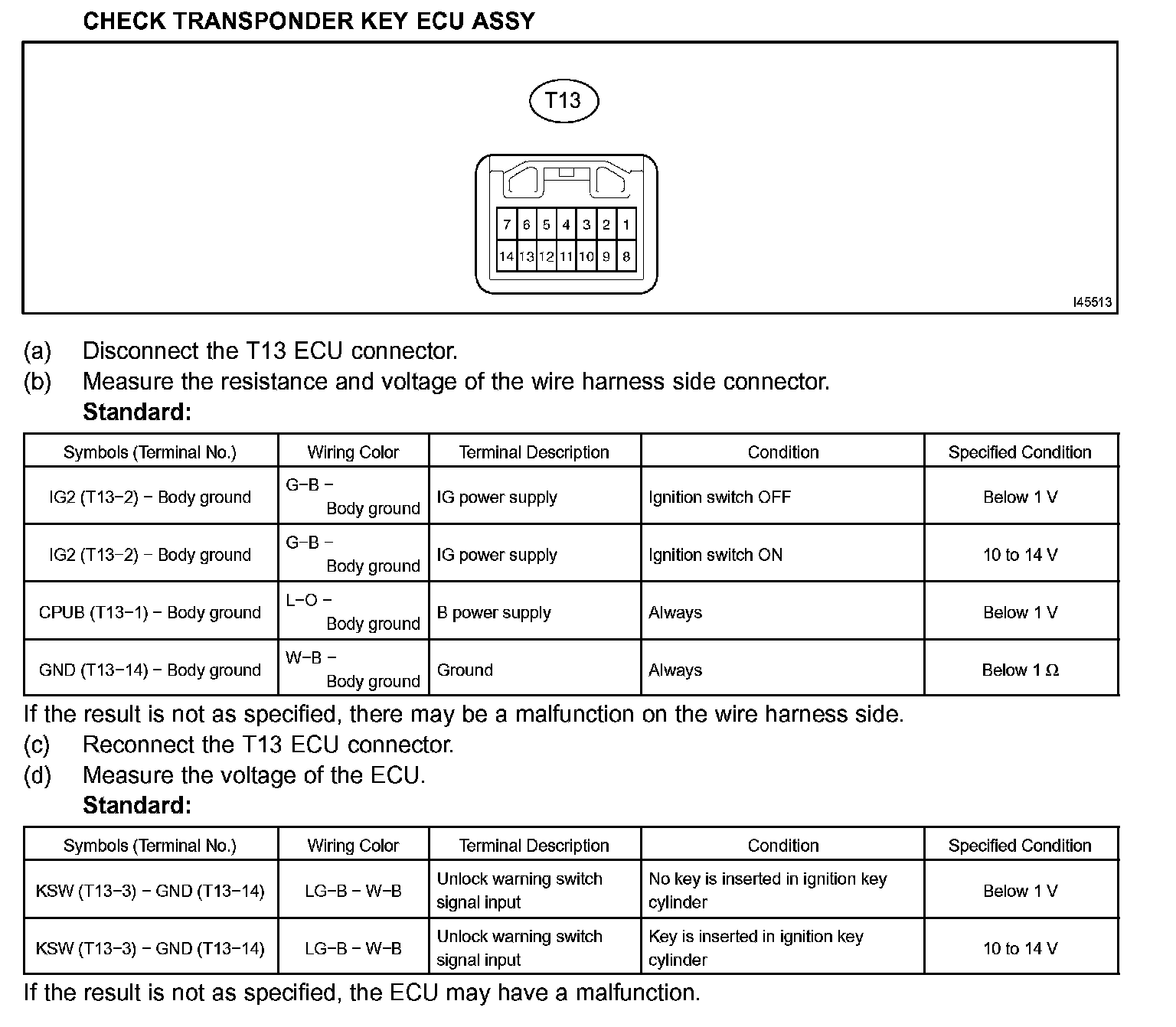

Terminals Of Control Module/Pinouts:
Terminals Of Control Module/Pinouts:
