Progressive Power Steering System

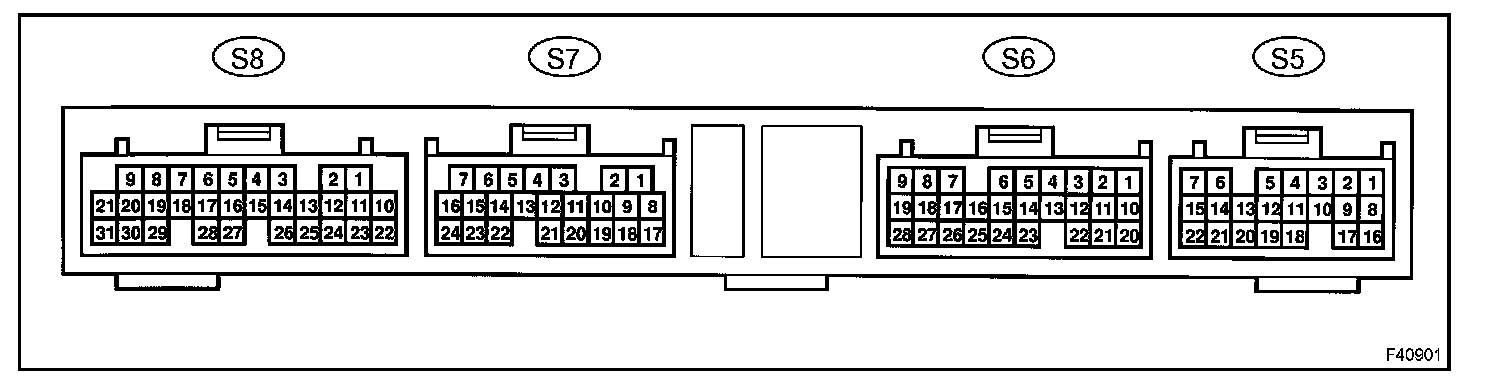

TERMINALS OF ECU

CHECK SKID CONTROL ECU ASSY

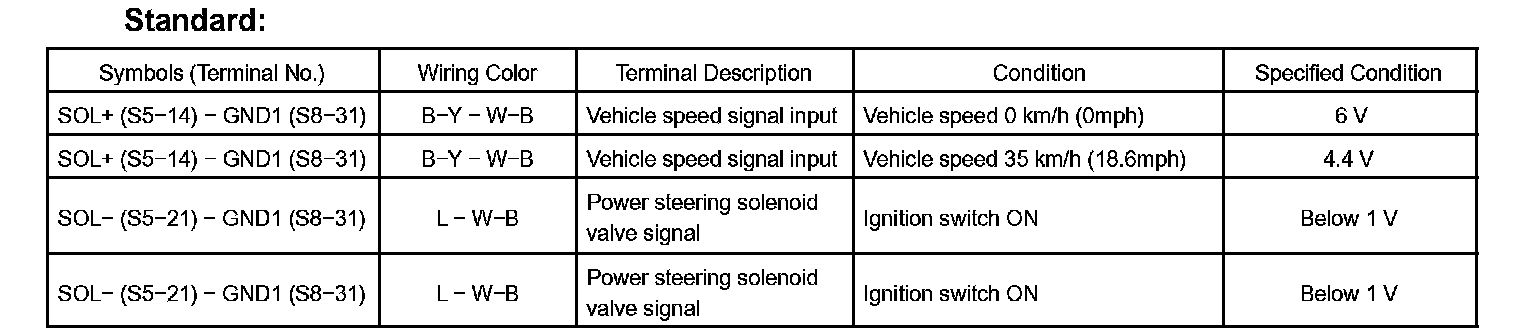

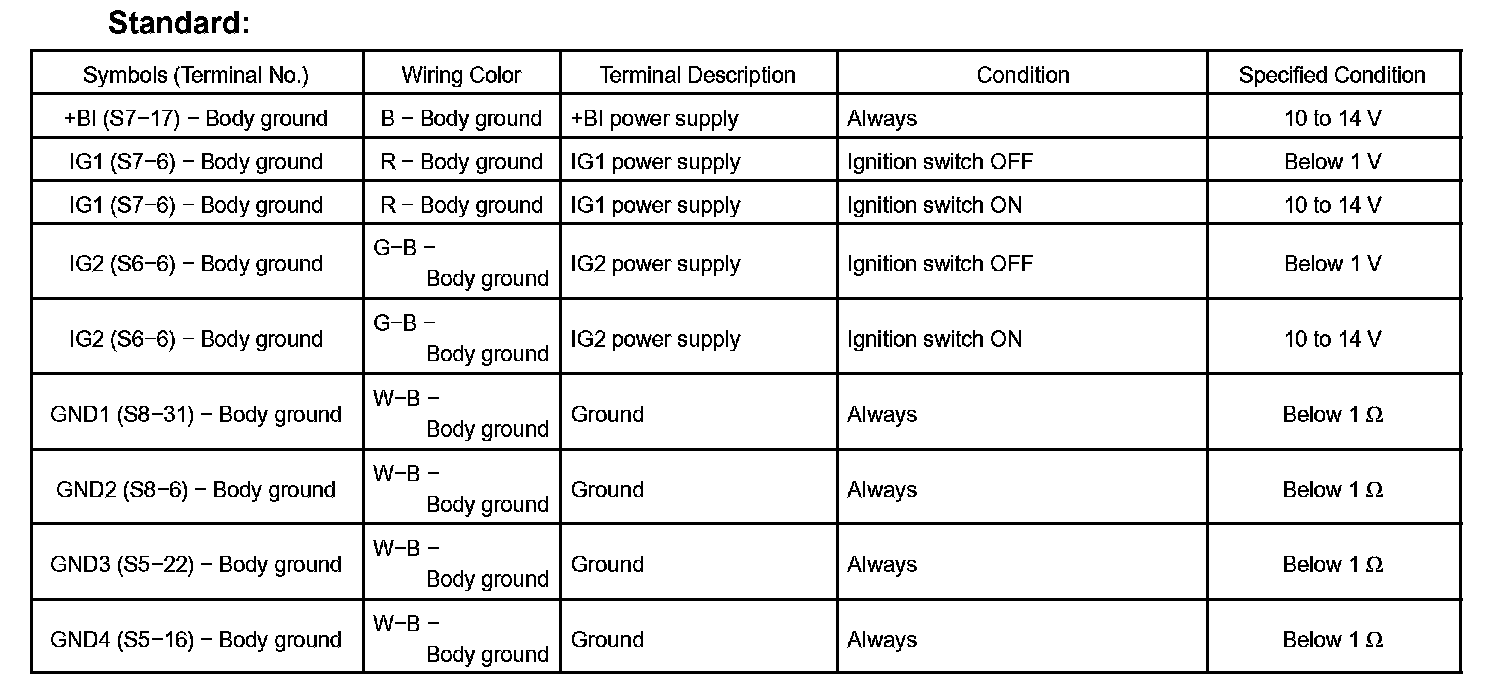

Terminals Of Control Module/Pinouts (Part 1):

Terminals Of Control Module/Pinouts (Part 2):

Terminals Of Control Module/Pinouts (Part 3):

a. Disconnect the S5, S6, S7 and S8 ECU connectors.
b. Measure the resistance and voltage of the wire harness side connectors. If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the S5, S6, S7 and S8 ECU connectors.
d. Measure the voltage of the ECU. If the result is not as specified, the ECU may have a malfunction.
