BT Voice Quality Set Mode

HINT:

• This mode allows adjustment of the BLUETOOTH voice quality settings.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM BT VOICE QUALITY SET
   1. Start the diagnostic mode (see DIAGNOSTIC START-UP/FINISH  )
   2. Select "BT Voice Quality Set" from the "Diagnosis MENU" screen.

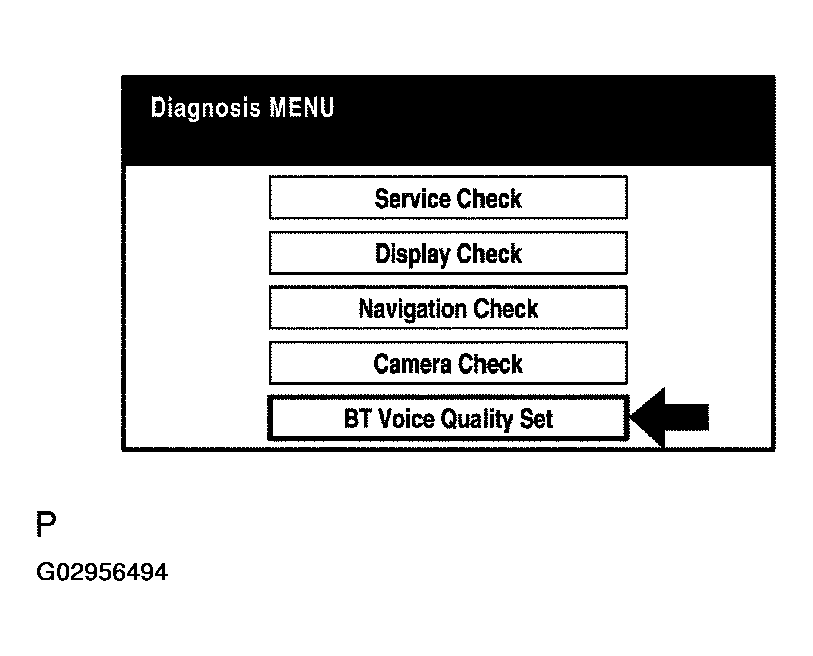

      Fig 1: Selecting BT Voice Quality Set From Diagnosis MENU Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Select an item and adjust it as necessary

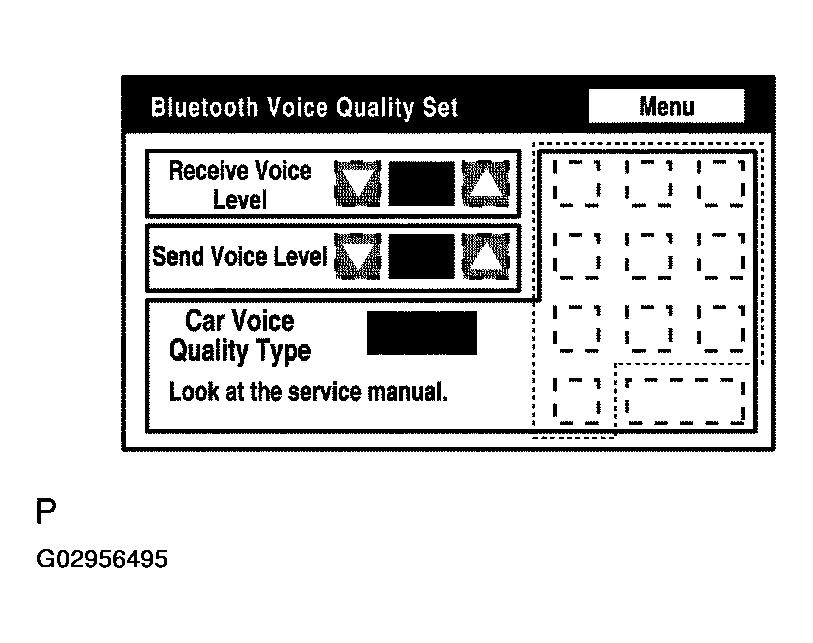

      Fig 2: Identifying Bluetooth Voice Quality Set Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
