Diagnostic Trouble Code Table

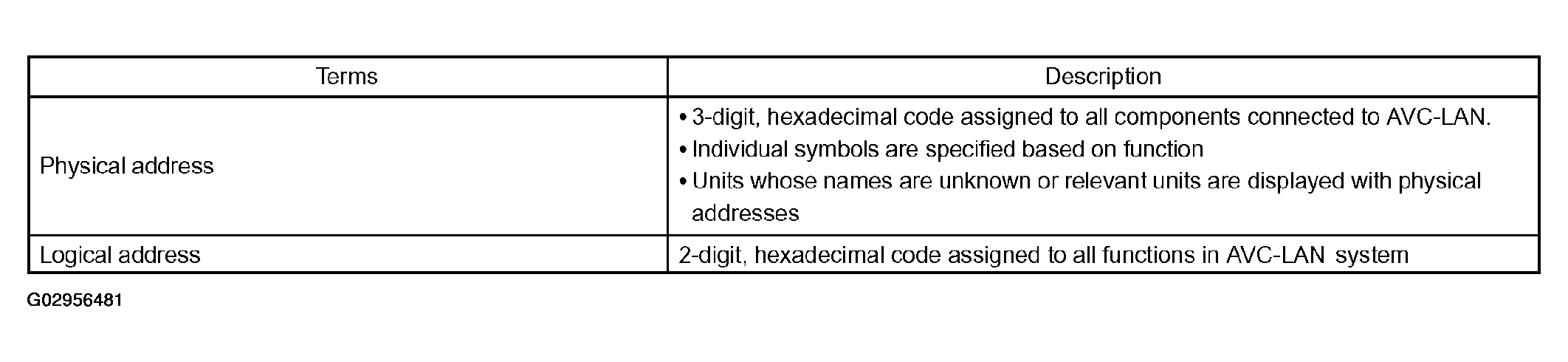

Fig 1: Terms Description Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Titles for each unit below are stated in the following order: part name (physical address) [name indicated by DTC].

1. MULTI-DISPLAY (physical address: 110) [EMV]
   1. Logical address: 01 (Communication control)

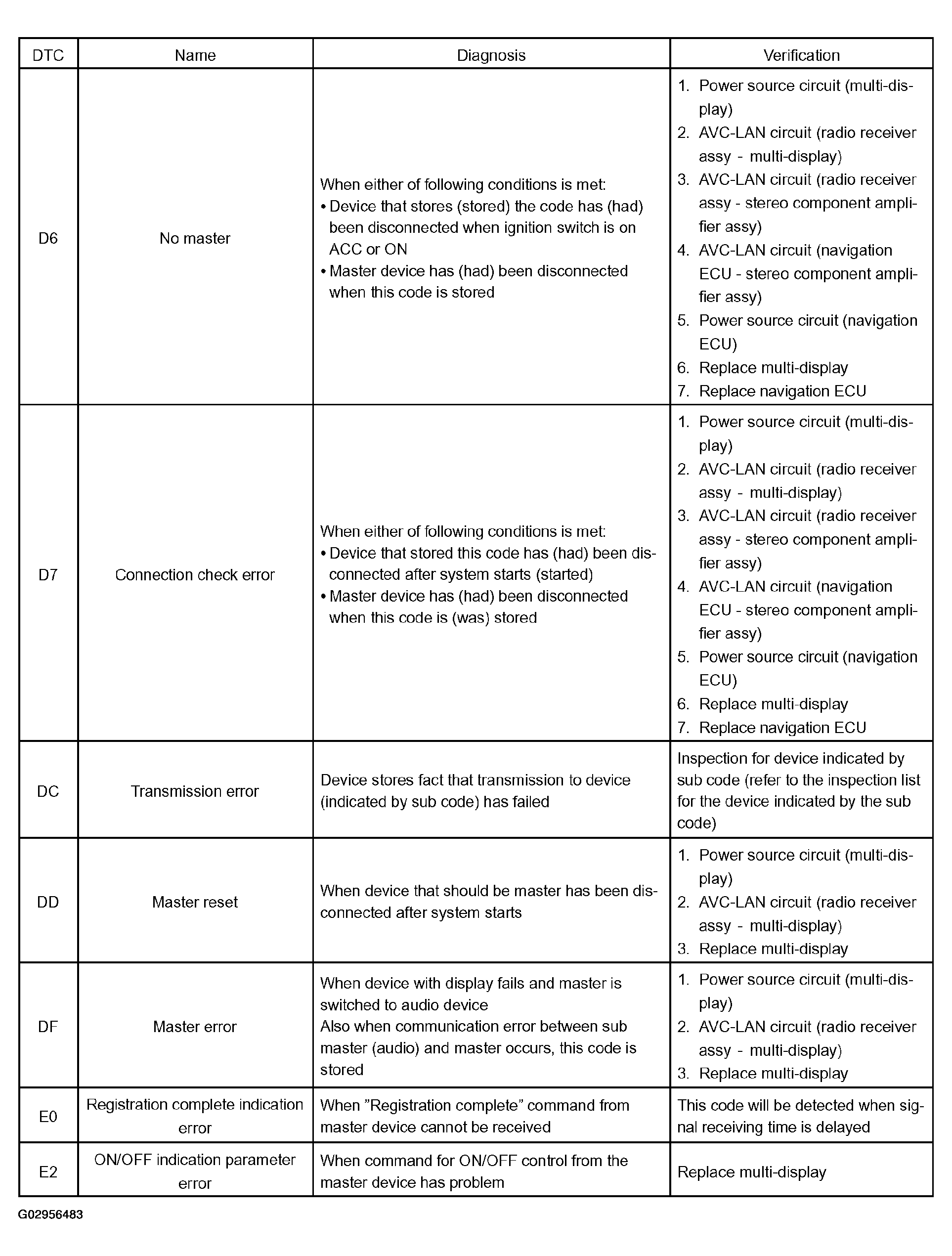

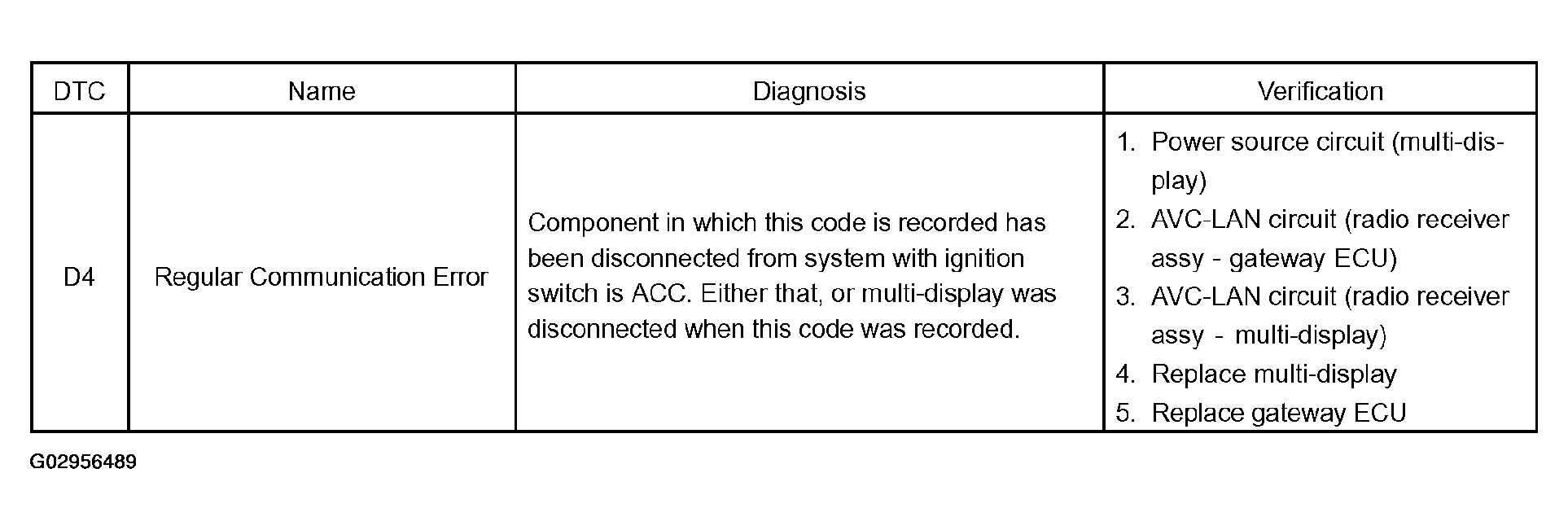

      Fig 2: Multi-Display Logical Address: 01 (Communication Control) Diagnostic Trouble Code Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Logical address: 21 (SW)
      LOGICAL ADDRESS: 21 (SW) DIAGNOSTIC TROUBLE CODE



      DTC	Name	Diagnosis	Verification	Reference
      10	Panel switch error	The panel switch detection circuit has a failure	Replace multi-display	MULTI-DISPLAY (CENTER DISPLAY)
      11	Touch switch error	The touch switch detection circuit has a failure	Replace multi-display	MULTI-DISPLAY (CENTER DISPLAY)

2. NAVIGATION ECU (Physical address: 178) [NAVI]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

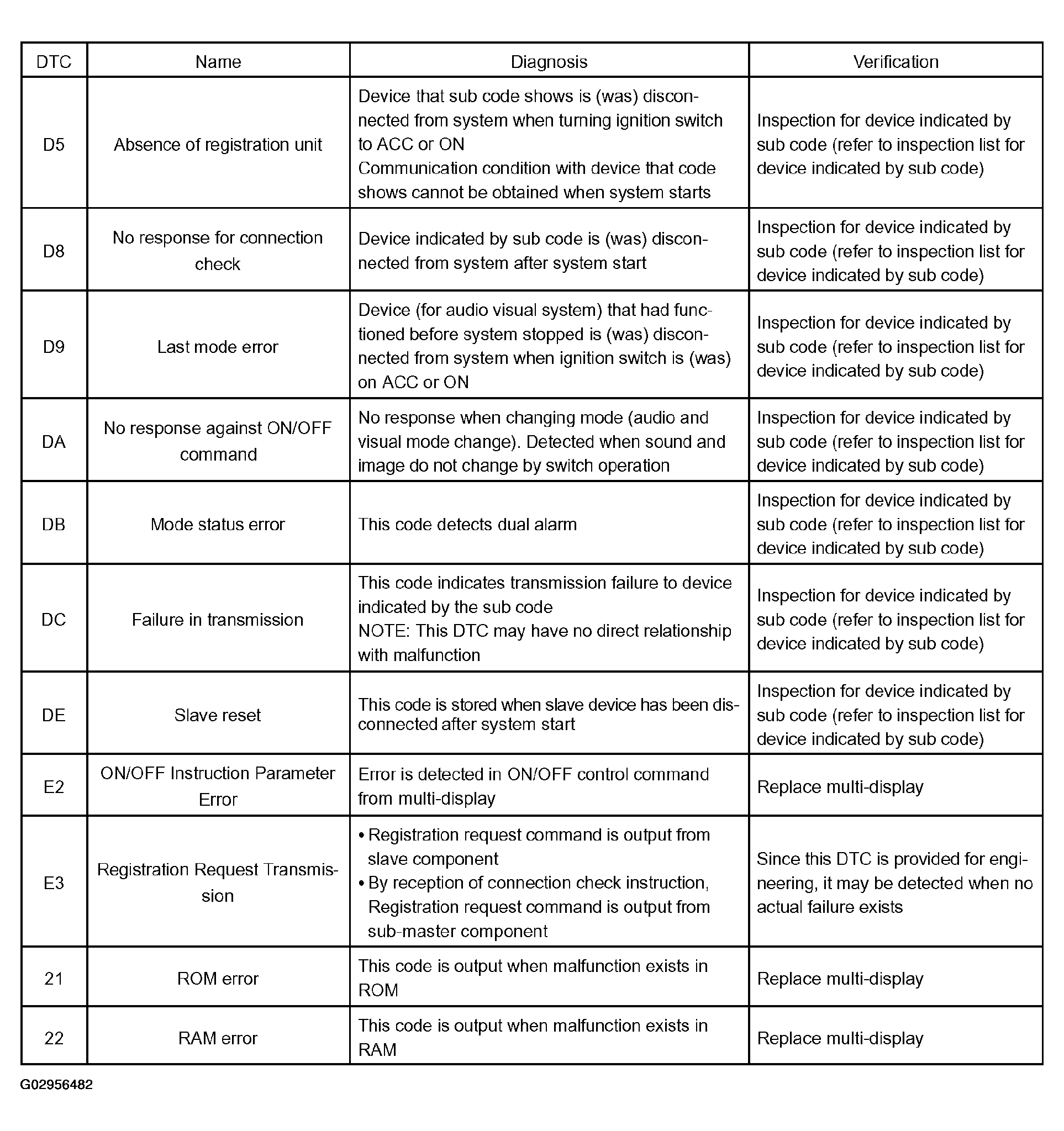

      Fig 3: Navigation ECU Logical Address: 01 (Communication Control) Diagnostic Trouble Code Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NAVIGATION ECU LOGICAL ADDRESS: 01 (COMMUNICATION CONTROL) DIAGNOSTIC TROUBLE CODE



      DTC	Name	Diagnosis	Verification
      E3	Registration demand transmission	When registration request command from slave device is output, or when registration request command is output by receiving connection confirmation command from sub master device	-
      E4	Multiple frame incomplete	When multiple frame transmission ends incomplete	-

   2. Logical address: 58 (Navigation)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

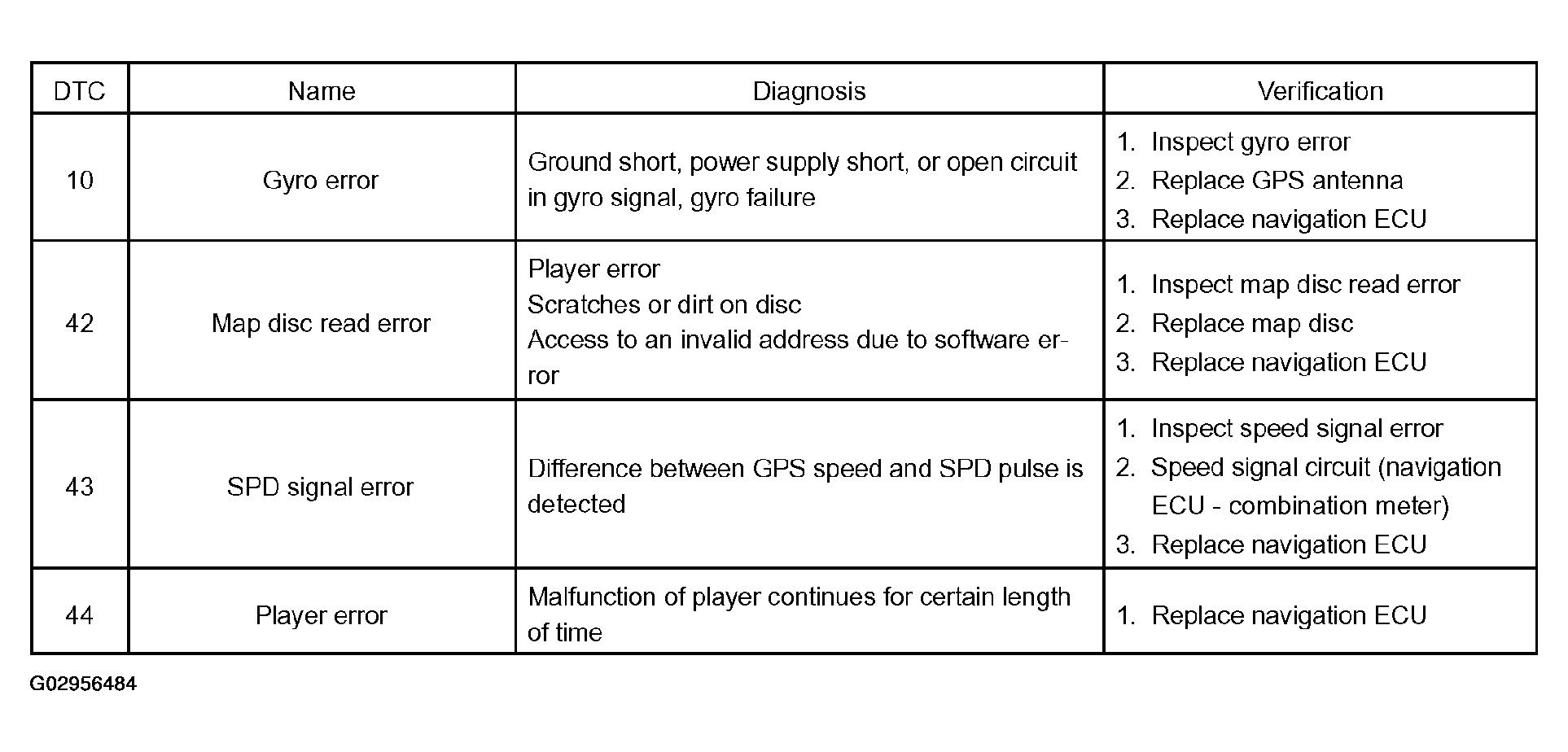

      Fig 4: Logical Address: 58 (Navigation) Diagnostic Trouble Code Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Logical address: 80 (GPS)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

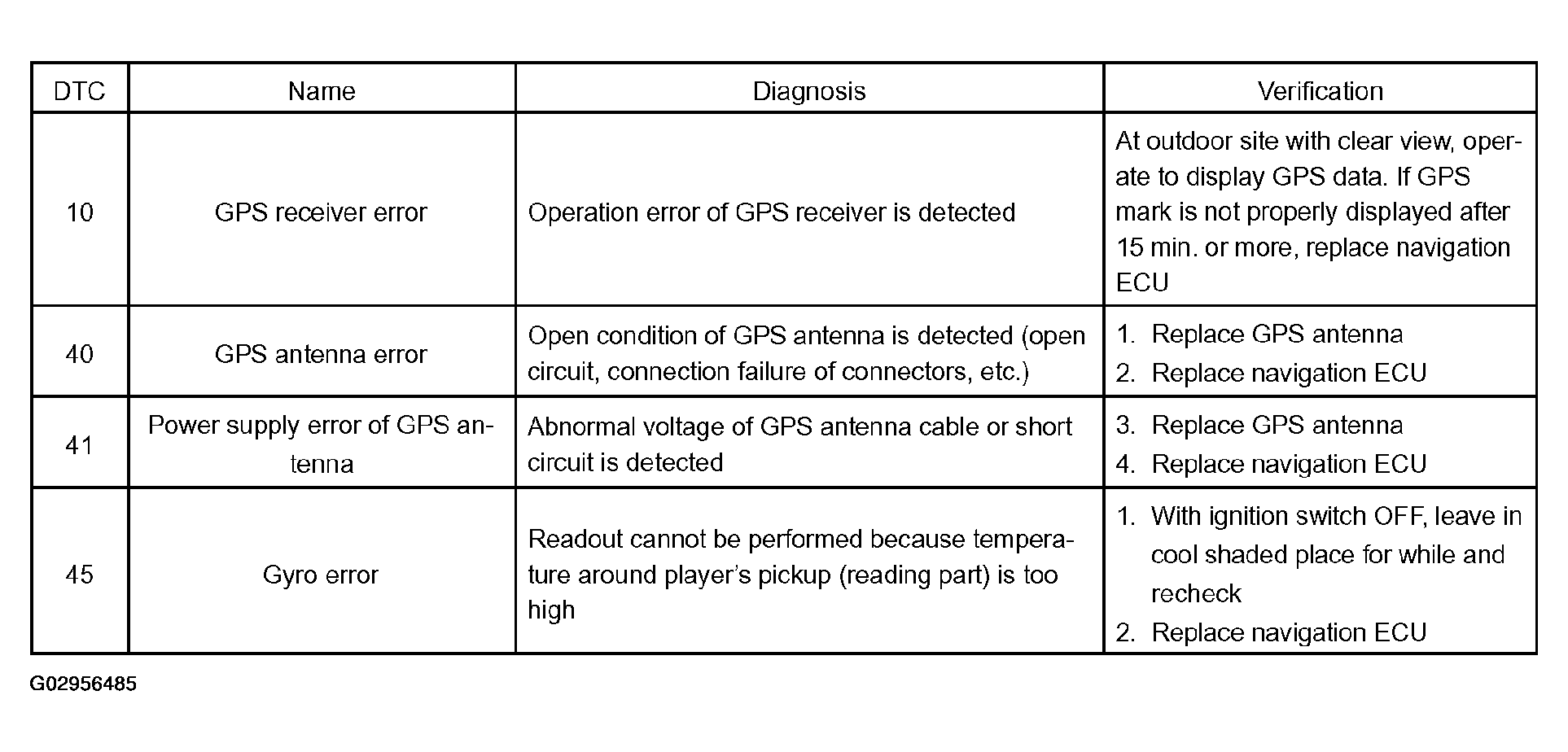

      Fig 5: Logical Address: 80 (GPS) Diagnostic Trouble Code Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. RADIO RECEIVER ASSY (Physical address: 190) [AUDIO H/U]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

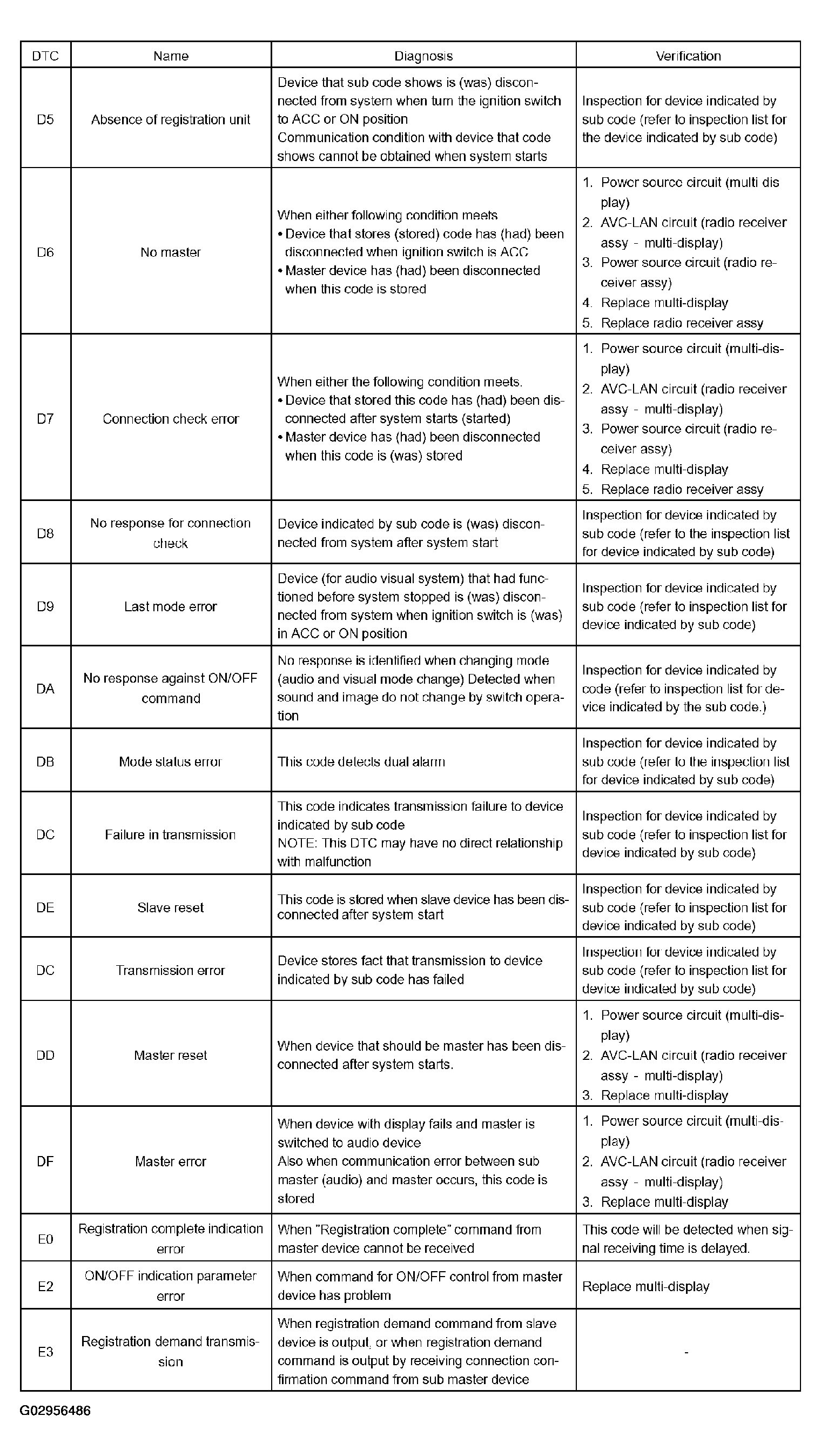

      Fig 6: Radio Receiver Assy Logical Address: 01 (Communication Control) Diagnostic Trouble Code Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Logical address: 62 (CD): 63 (CD changer)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

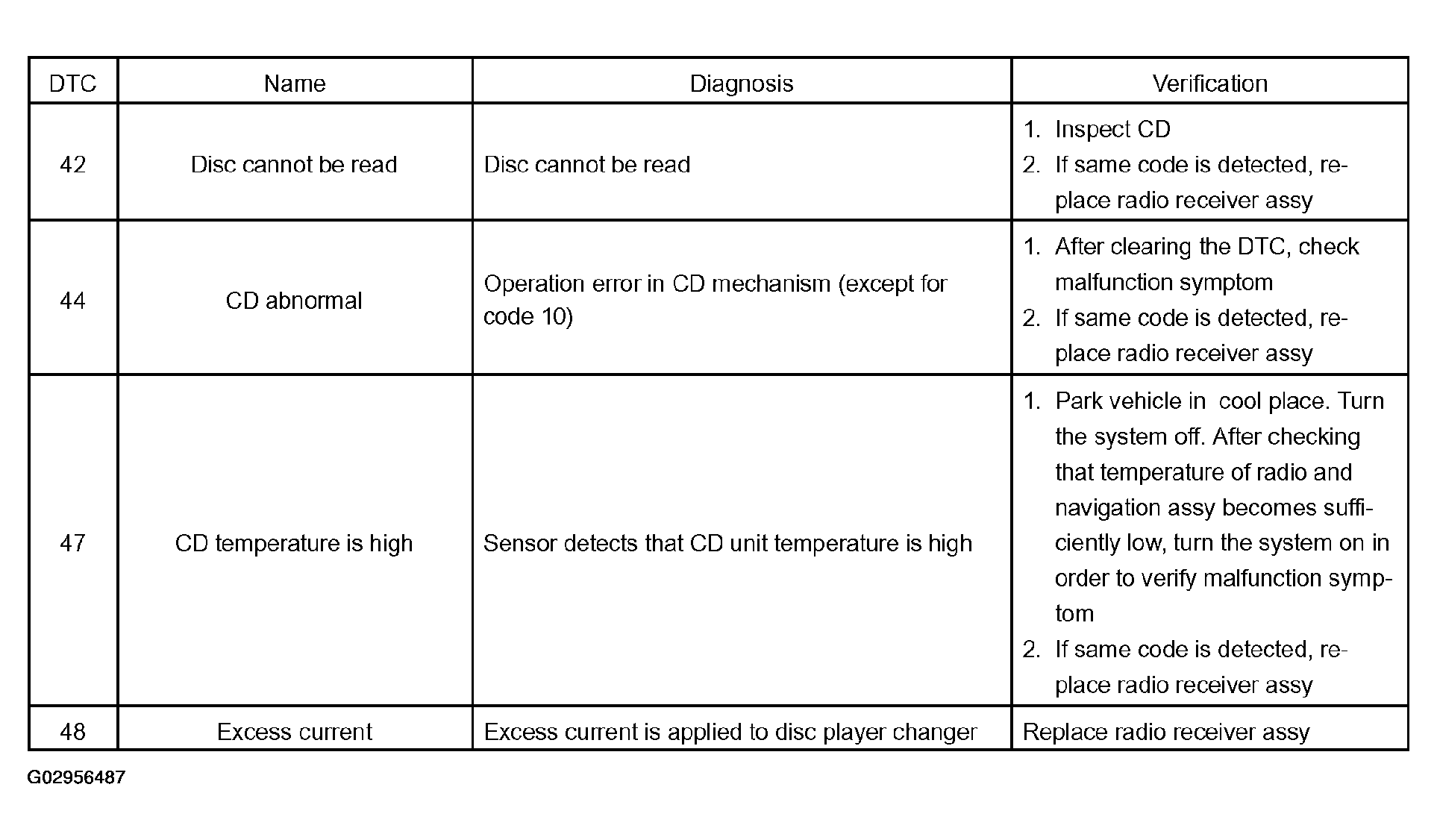

      Fig 7: Logical Address: 62 (CD): 63 (CD Changer) Diagnostic Trouble Code Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Logical address: 61 (Cassette)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

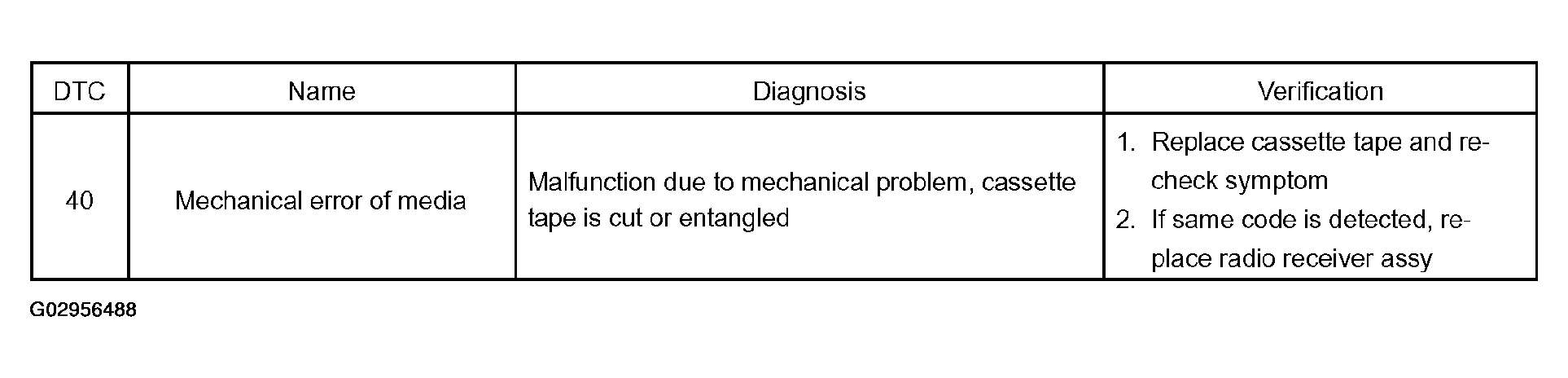

      Fig 8: Logical Address: 61 (Cassette) Diagnostic Trouble Code Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. GATEWAY ECU (Physical address: 1C6) [G/W]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

      Fig 9: Gateway ECU Logical Address: 01 (Communication Control) Diagnostic Trouble Code Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440) [DSP AMP]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

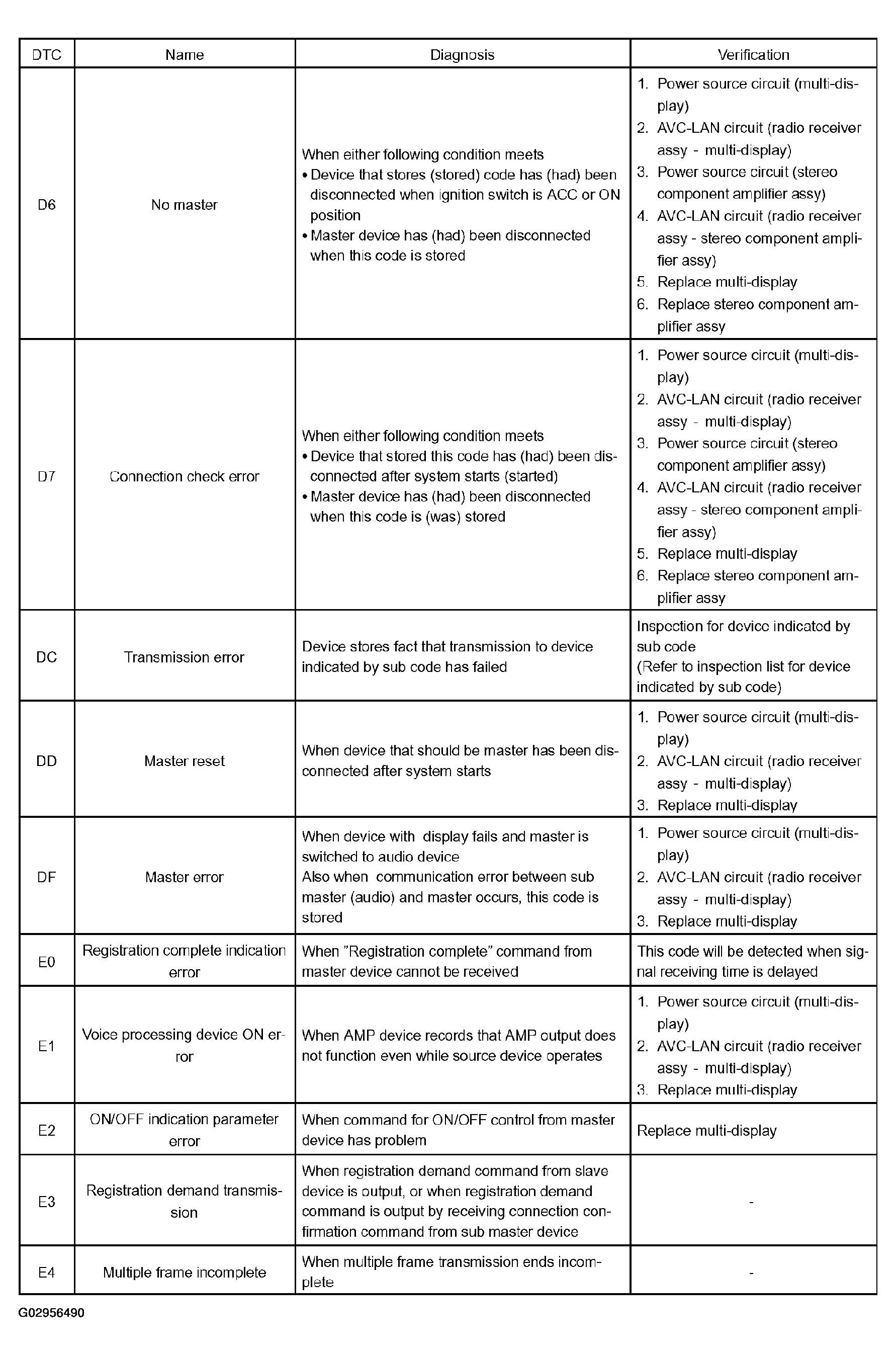

      Fig 10: Stereo Component Amplifier Assy Logical Address: 01 (Communication Control) Diagnostic Trouble Code Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSPECTION LIST FOR DEVICE INDICATED BY SUB CODE

   HINT:

   Methods used to verify the cause of the problem are listed in order of probability in the verification column.

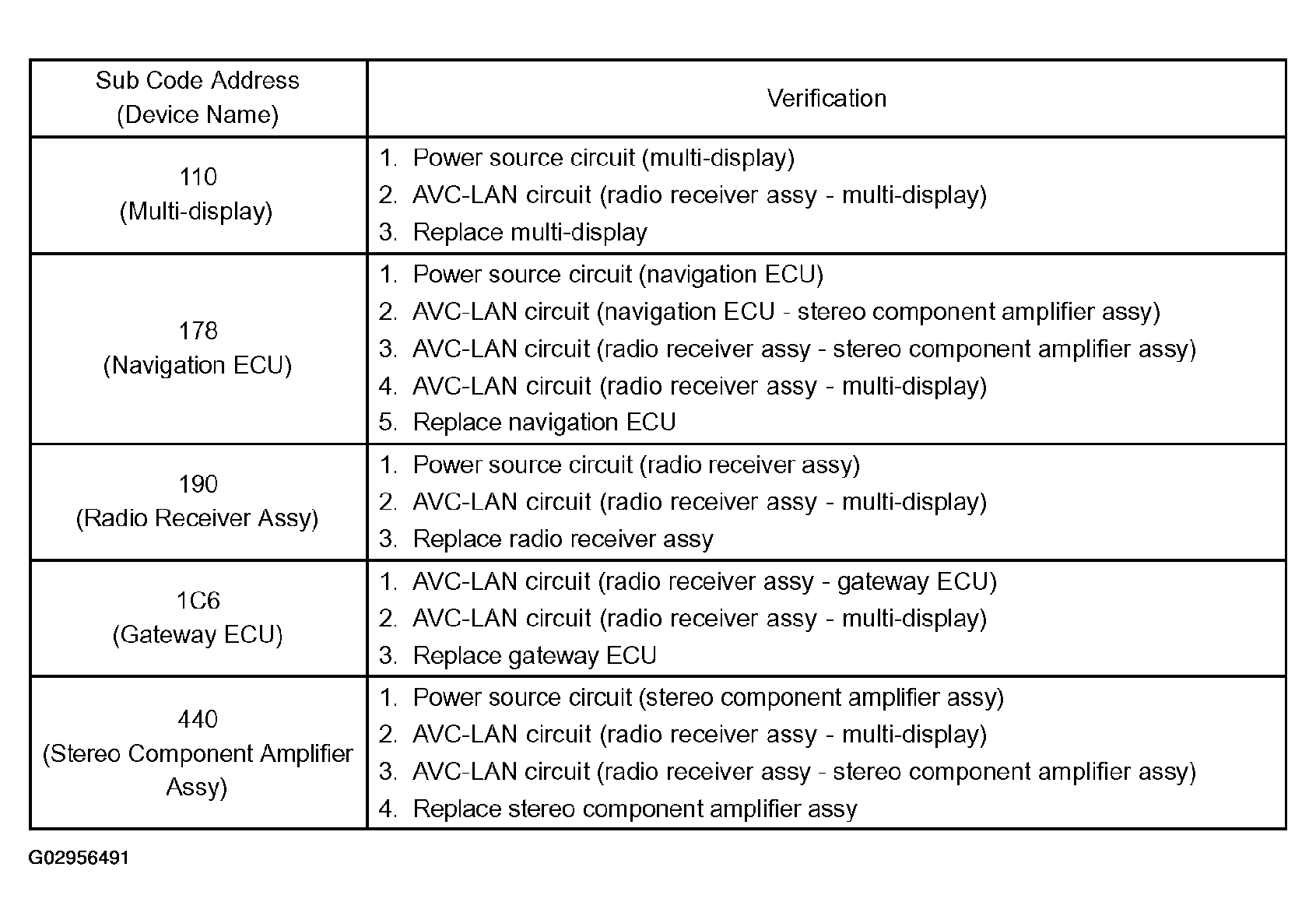

   Fig 11: Sub Code Address (Device Name) Verification Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
