Display Check Mode (Color Bar Check)

HINT:

• This mode checks the color display of the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM COLOR BAR CHECK
   1. Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH  ).
   2. Select "Display Check" from the "Diagnosis MENU" screen.
      Fig 1: Selecting "Display Check" From "Diagnosis MENU" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

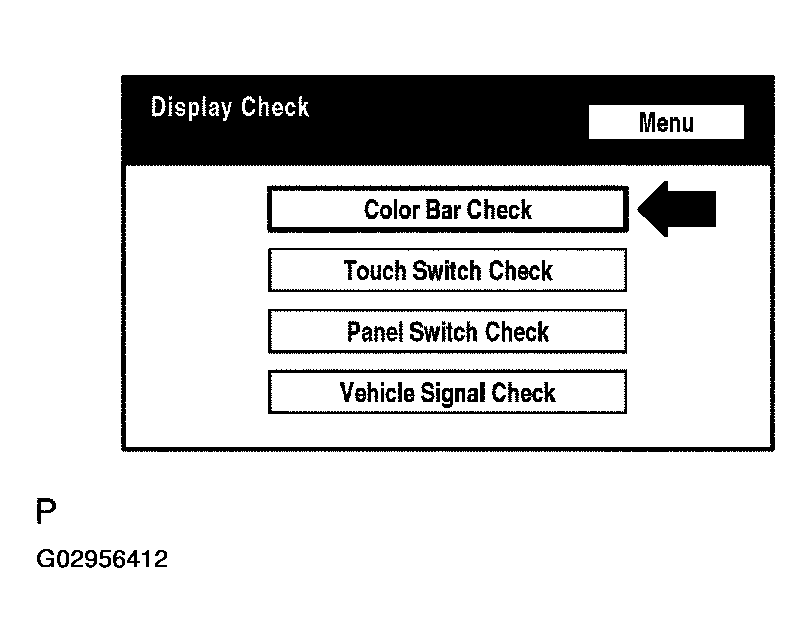

   3. Select "Color Bar Check" from the "Display Check" screen.
      Fig 2: Selecting "Color Bar Check" From "Display Check" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Select color bar from the "Color Bar Check Mode" screen.

      HINT:

      • The entire screen turns to the color or stripe selected.
      • Touching the display will return to the "Color Bar Check" screen.

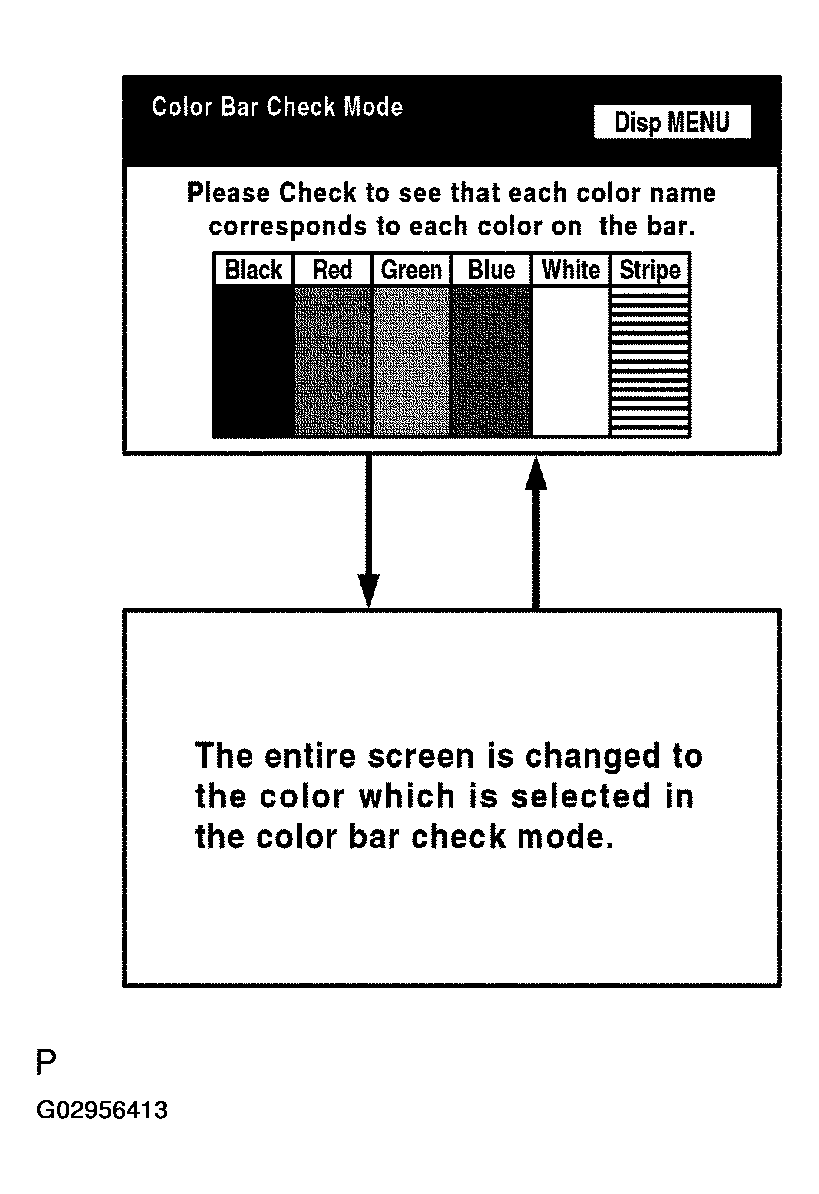

        Fig 3: Identifying "Color Bar Check" Display Screen

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
