Display Check Mode (Touch Switch Check)

HINT:

• This mode checks the touch switch operation condition of the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM TOUCH SWITCH CHECK
   1. Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH  ).
   2. Select "Display Check" from the "Diagnosis MENU" screen.
      Fig 1: Selecting "Display Check" From "Diagnosis MENU" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

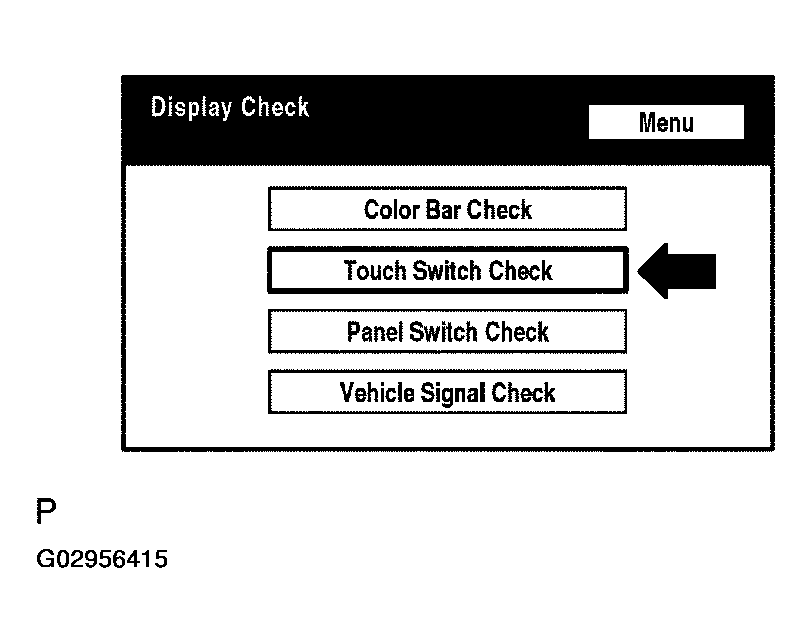

   3. Select "Touch Switch Check" from the "Display Check" screen.
      Fig 2: Selecting "Touch Switch Check" From "Display Check" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

      HINT:

      • A "+" mark is displayed where the display is touched.
      • The "+" mark remains on the display even after the finger is removed.

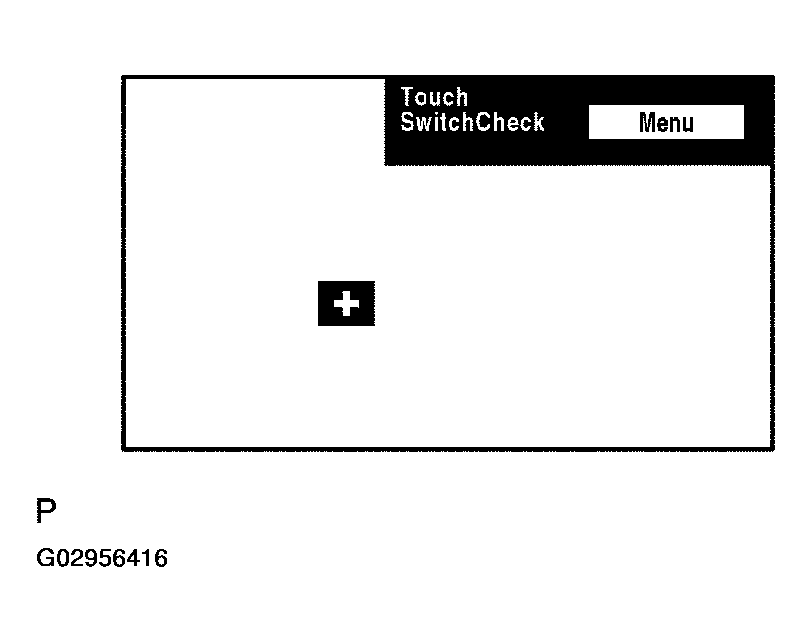

        Fig 3: Identifying "Touch Switch Check" Display Screen

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
