Display Check Mode (Vehicle Signal Check)

HINT:

• This mode checks the input of vehicle signals to the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM VEHICLE SIGNAL CHECK
   1. Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH  ).
   2. Select "Display Check" from the "Diagnosis MENU" screen.
      Fig 1: Selecting "Display Check" From "Diagnosis MENU" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Select "Vehicle Signal Check" from the "Display Check" screen.

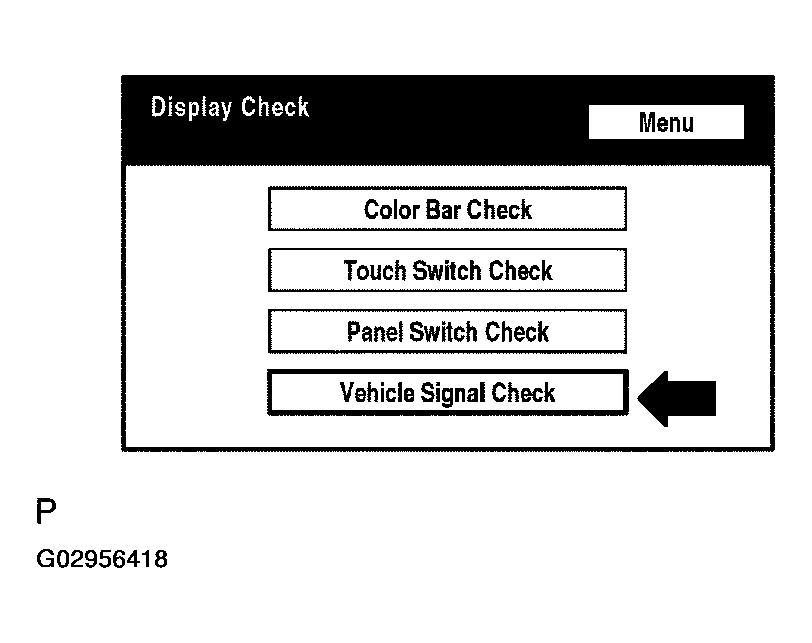

      Fig 2: Selecting "Vehicle Signal Check" From "Display Check" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

      HINT:

      • Only conditions having inputs are displayed.
      • This screen is updated once per second when input signals to the vehicle are changed.

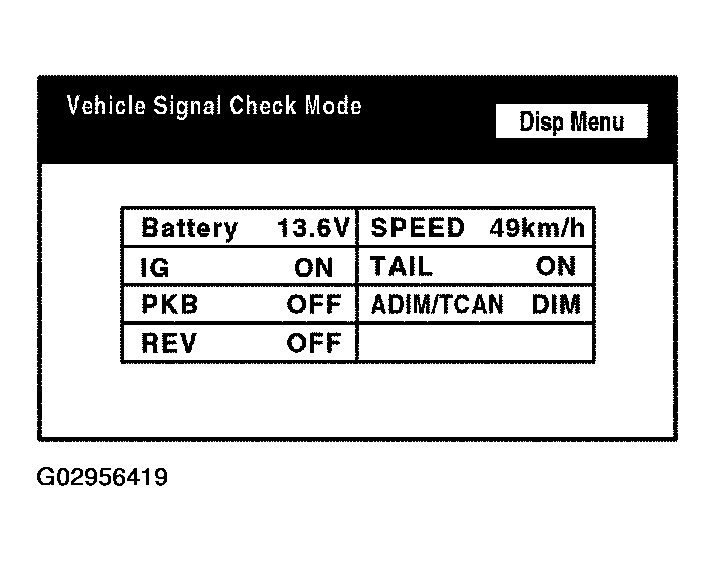

        Fig 3: Display Vehicle Signal Check Mode Screen

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
