Display Signal Circuit (Navigation Ecu - Multi-Display): Wiring Diagram

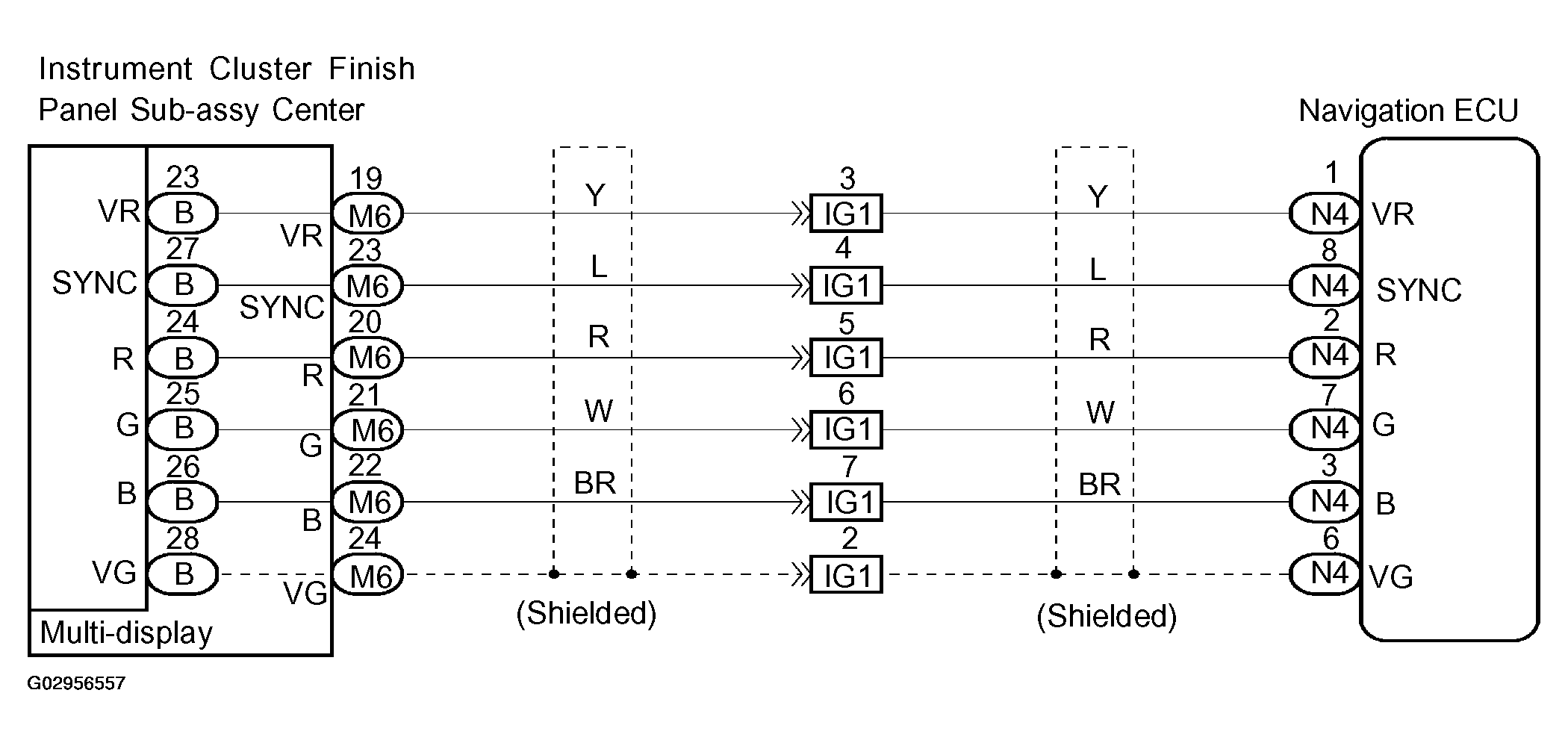

Fig 1: Display Signal (Navigation ECU - Multi-Display) Wiring Diagram
G02956557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
