Navigation Check Mode (GPS Information)

HINT:

• This mode displays GPS satellite information.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM GPS INFORMATION CHECK
   1. Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH  ).
   2. Select "Navigation Check" from the "Diagnosis MENU" screen.

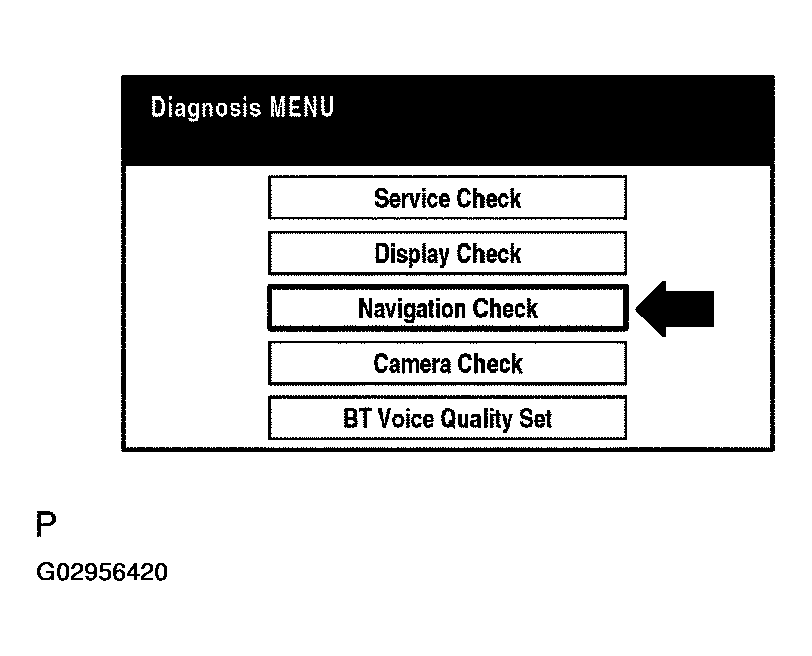

      Fig 1: Selecting "Navigation Check" From "Diagnosis MENU" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Select "GPS Information" from the "Navigation Check" screen.

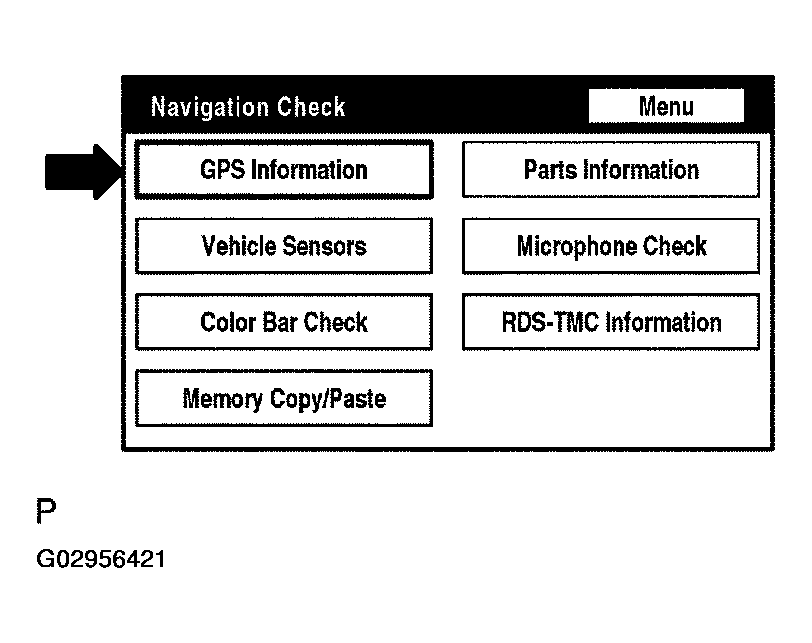

      Fig 2: Selecting "GPS Information" From "Navigation Check" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. When "GPS Information" is displayed, check the GPS conditions.

      HINT:

      This screen is updated once per second when input signals to the vehicle are changed.

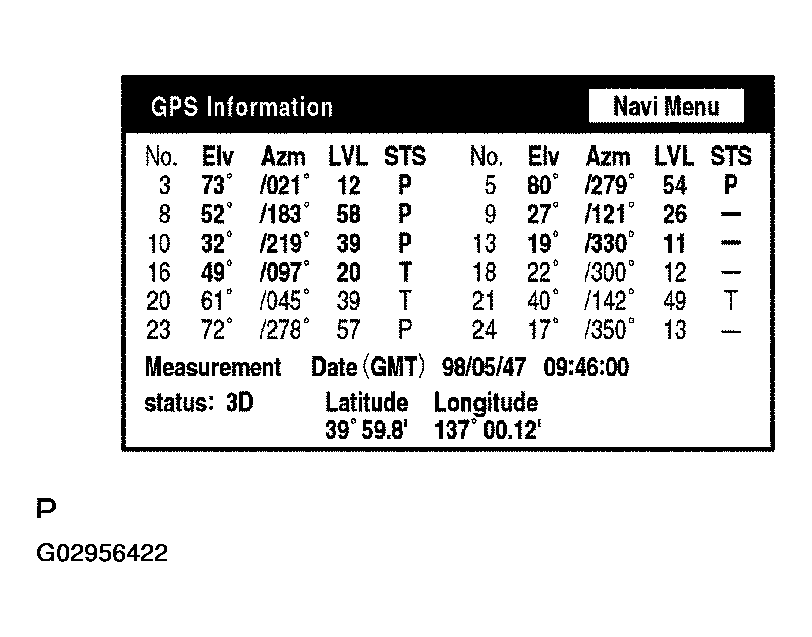

      Fig 3: Identifying "GPS Information" Display Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
