Navigation Check Mode (NAVI Color Bar Check)

HINT:

• This mode checks the color display of the navigation ECU.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. HOW TO PERFORM NAVI COLOR BAR CHECK
   1. Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH  ).
   2. Select "Navigation Check" from the "Diagnosis MENU" screen.

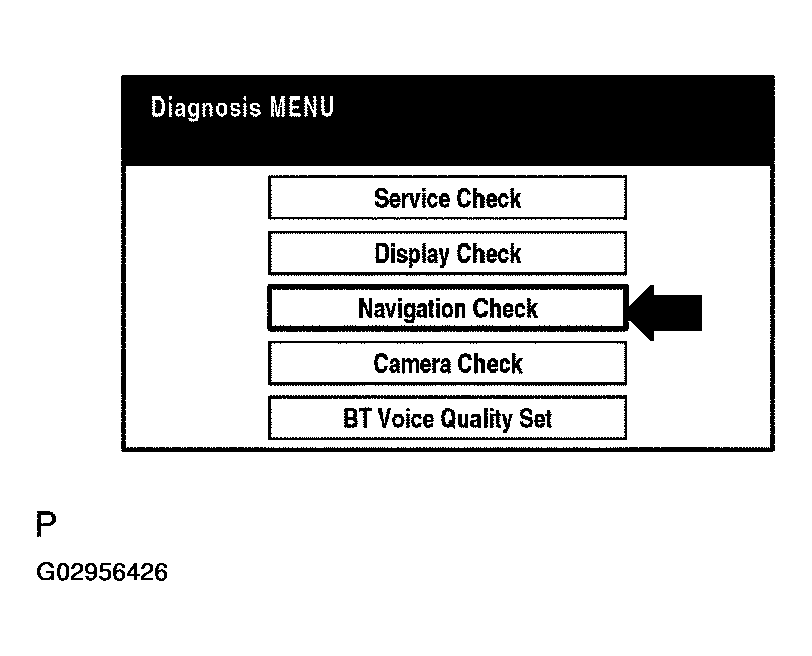

      Fig 1: Selecting "Navigation Check" From "Diagnosis MENU" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Select "Color Bar Check" from the "Navigation Check" screen.

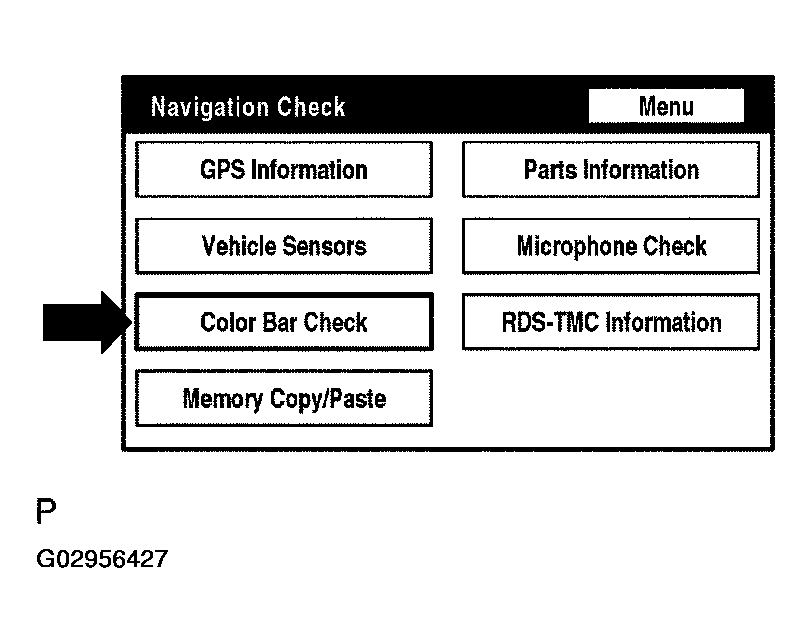

      Fig 2: Selecting "Color Bar Check" From "Navigation Check" Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Check all the signals and sensors when the "Vehicle Sensors" screen is displayed.

      HINT:

      Colors will not be displayed full-screen as in "Display Check Mode".

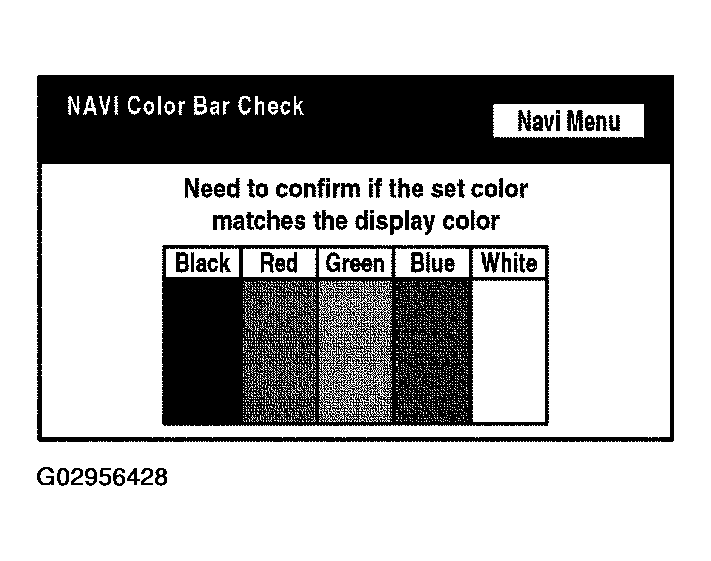

      Fig 3: Identifying NAVI Color Bar Check Display Screen

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
