Mirror Retract Switch Circuit: Wiring Diagram

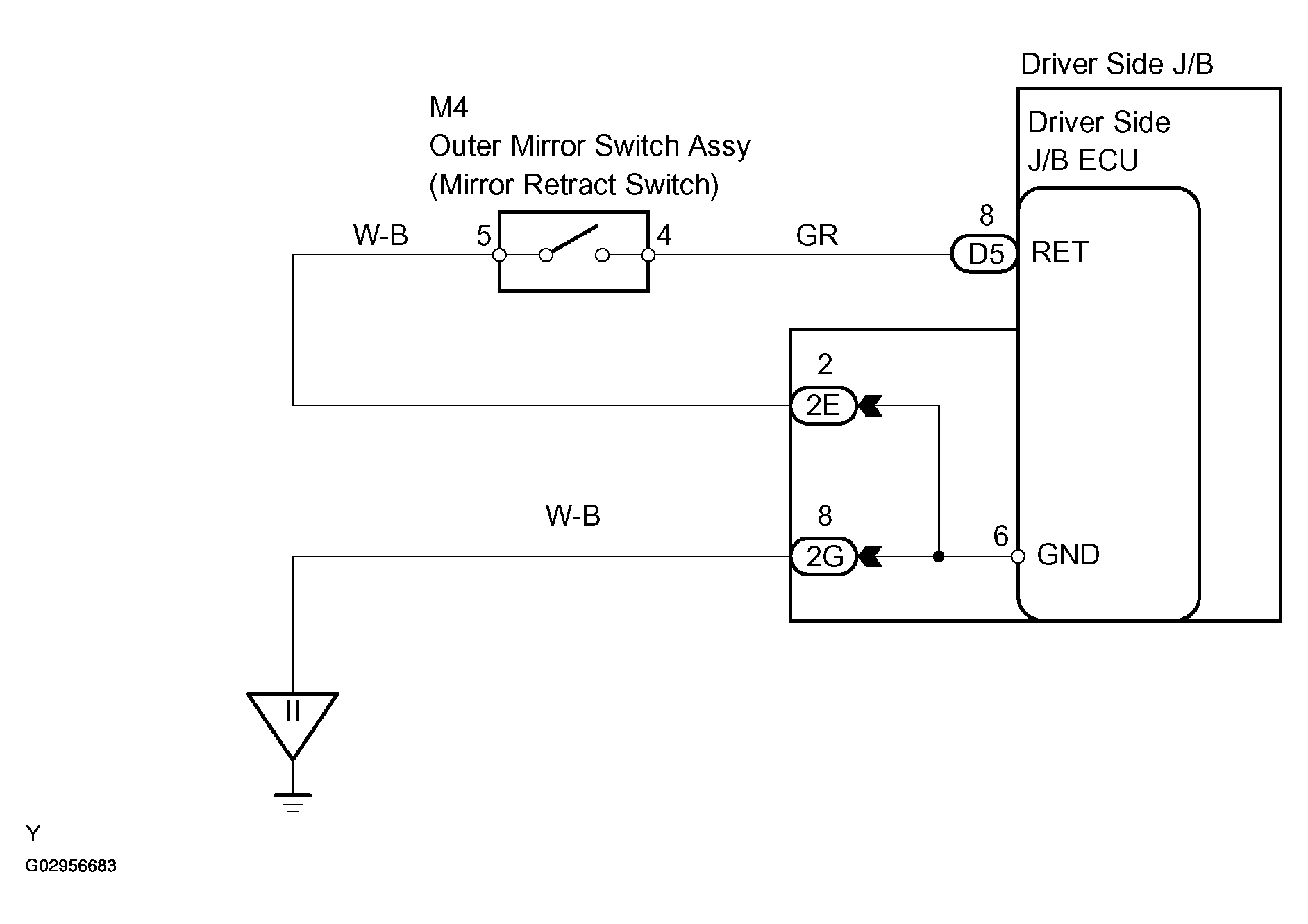

Fig 1: Mirror Retract Switch Wiring Diagram
G02956683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
