Entry Lock Switch Circuit

Entry Lock Switch Circuit

DESCRIPTION

The entry lock switches (trigger switch) are built into the door outside handles of the all doors. The certification ECU detects the conditions of each lock switch.

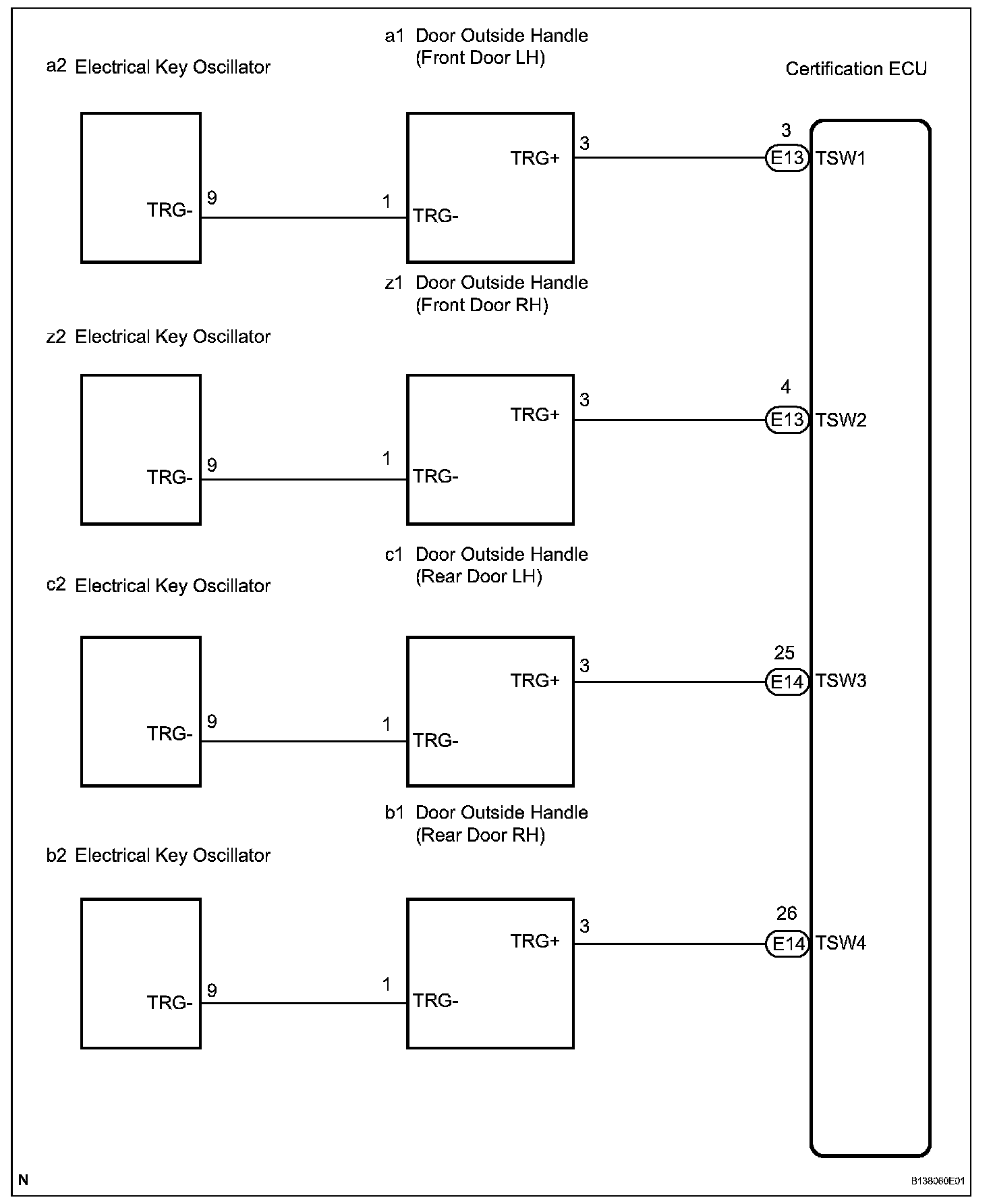

Wiring Diagram:

Step 1:

Step 2:

Step 3-4:

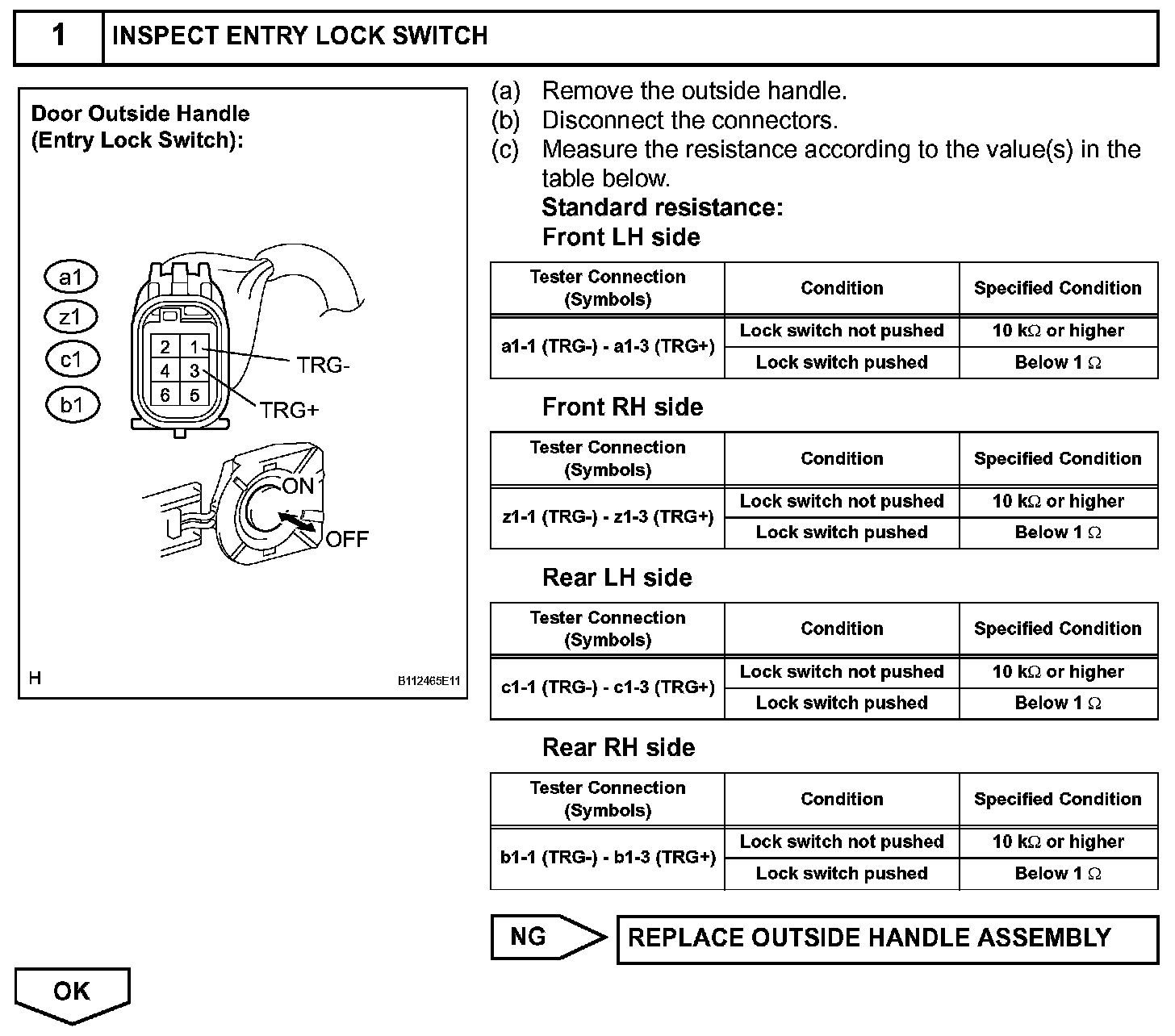

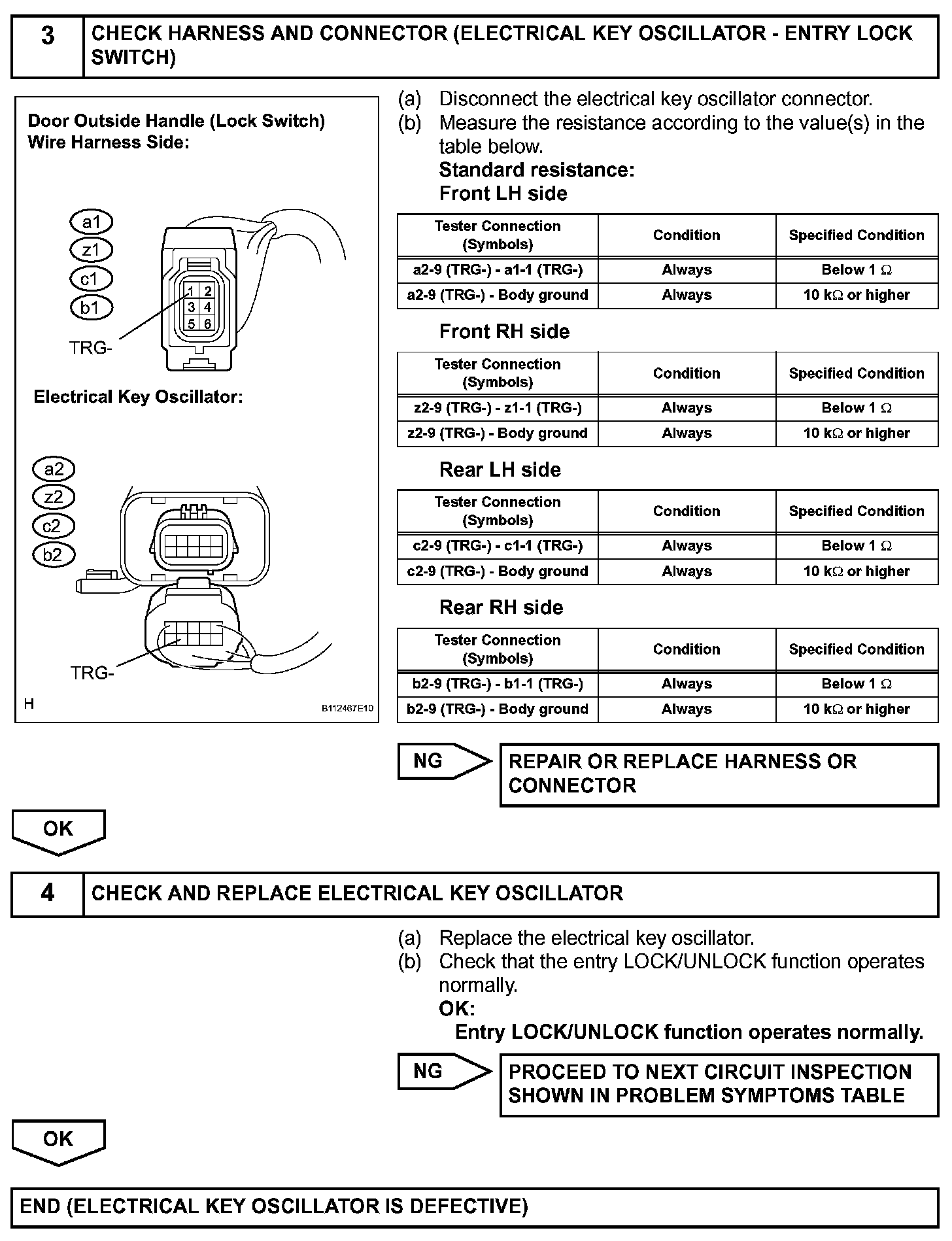

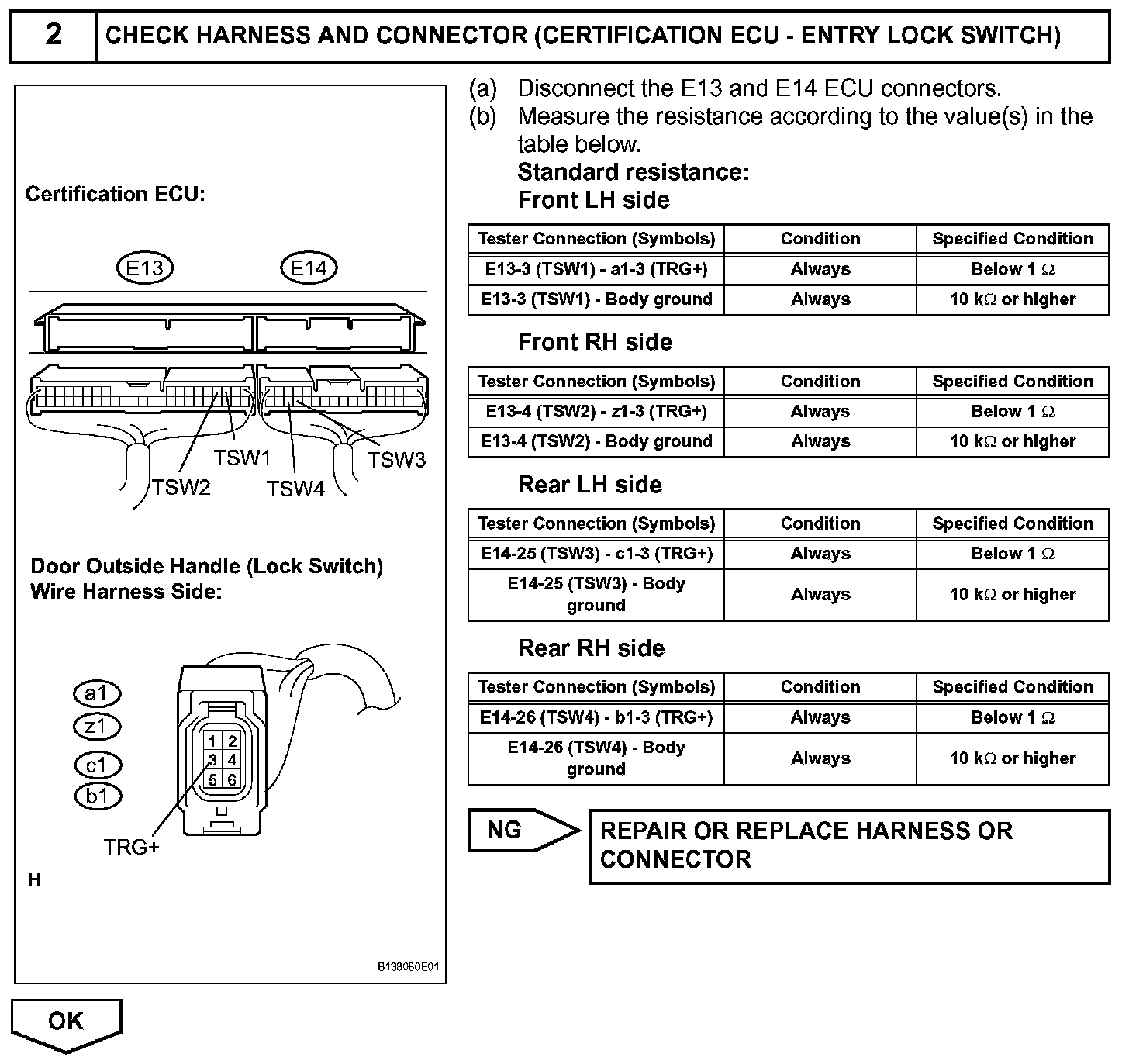

INSPECTION PROCEDURE
