Engine Mount Control Unit

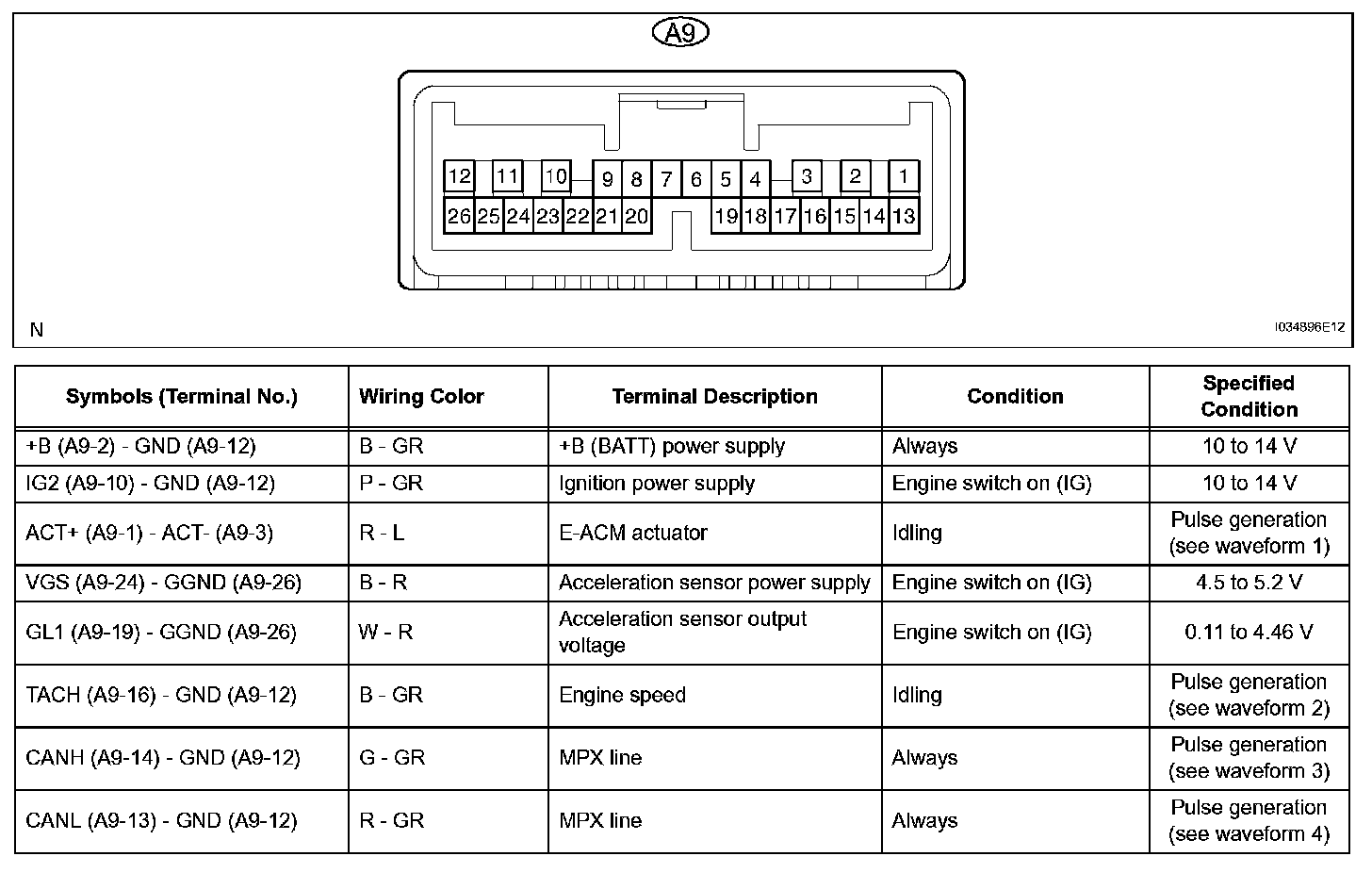

Terminals Of Control Module/Pinouts:

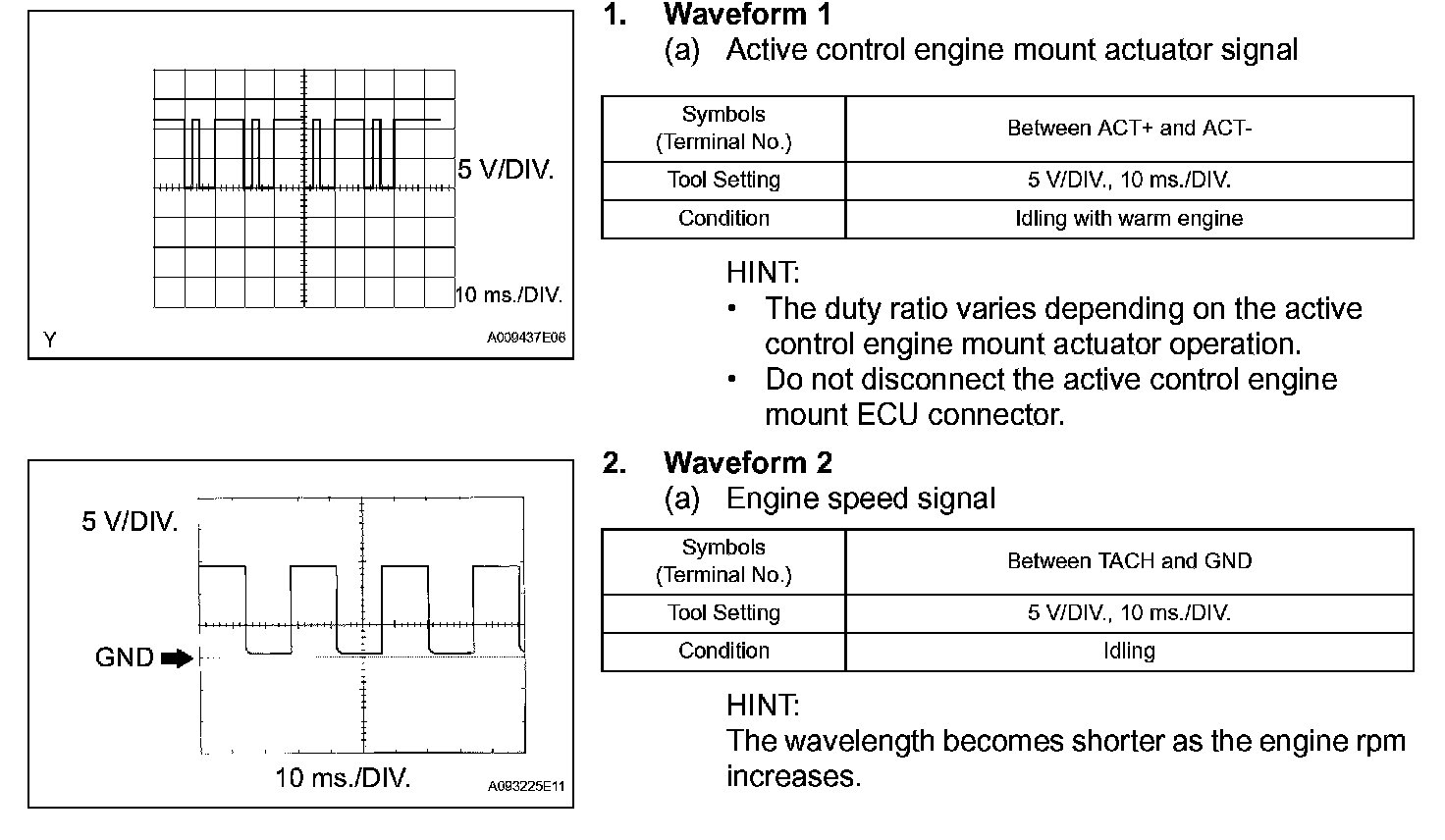

Oscilloscope Waveforms (Part 1):

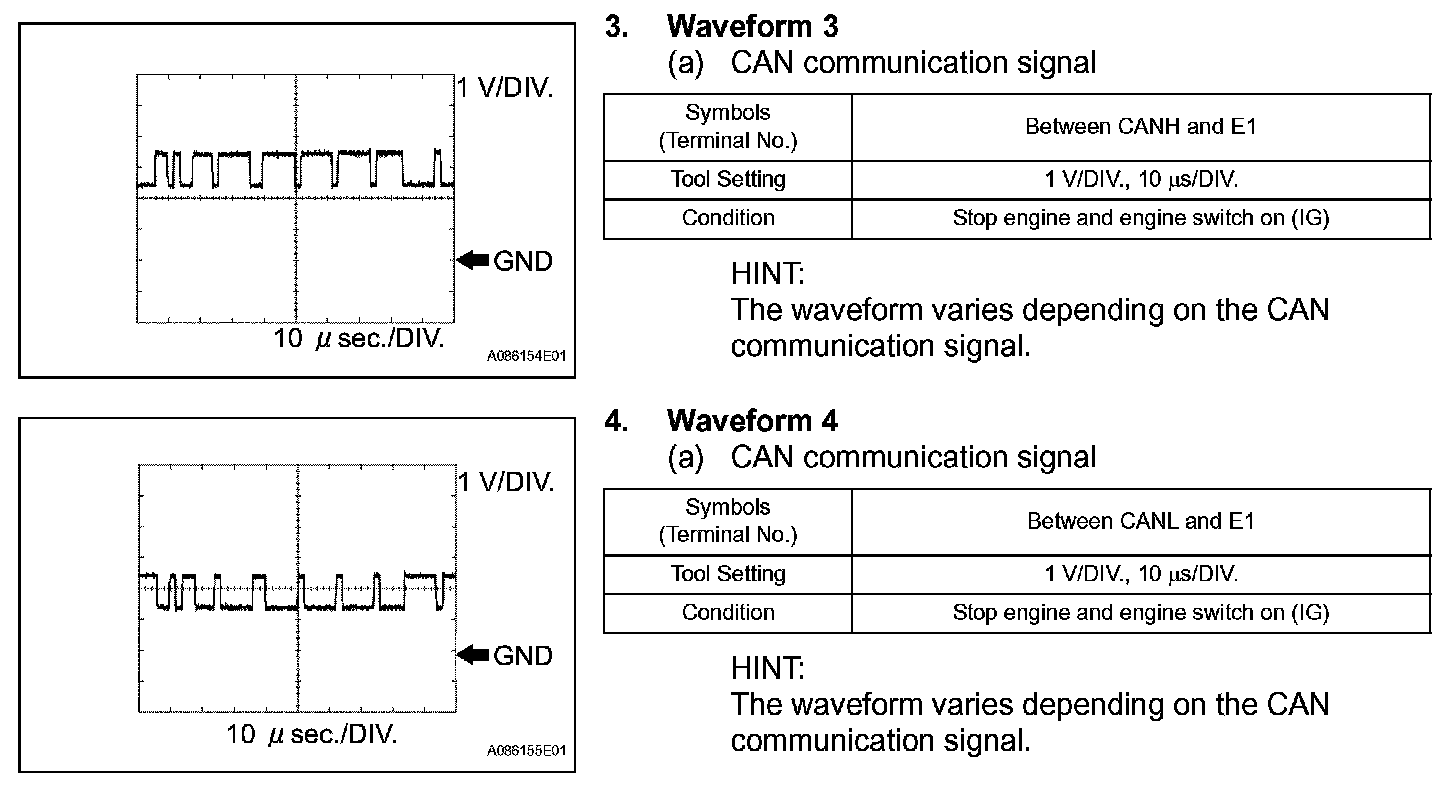

Oscilloscope Waveforms (Part 2):
