Initialization

INITIALIZATION

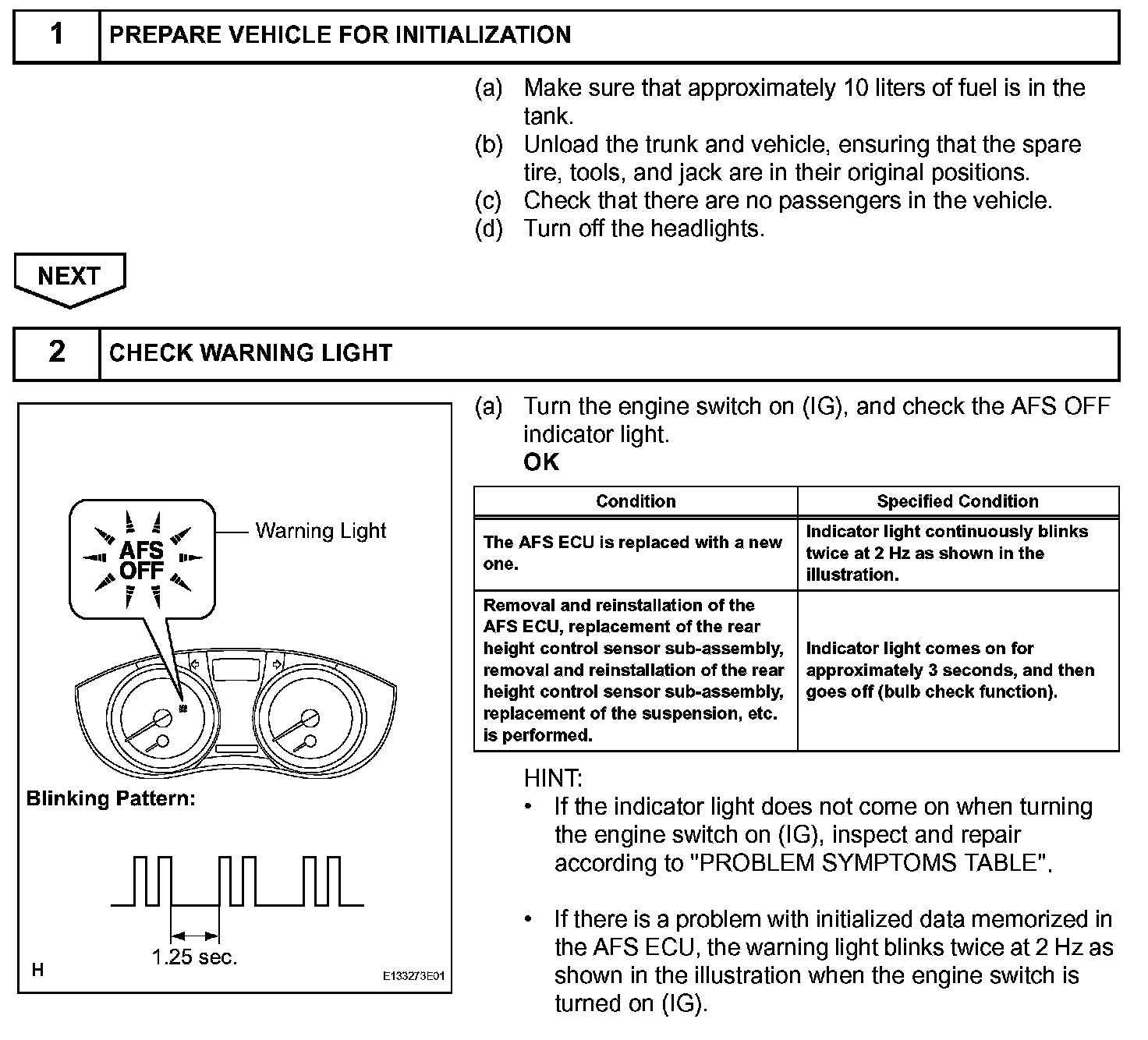

Step 1-2:

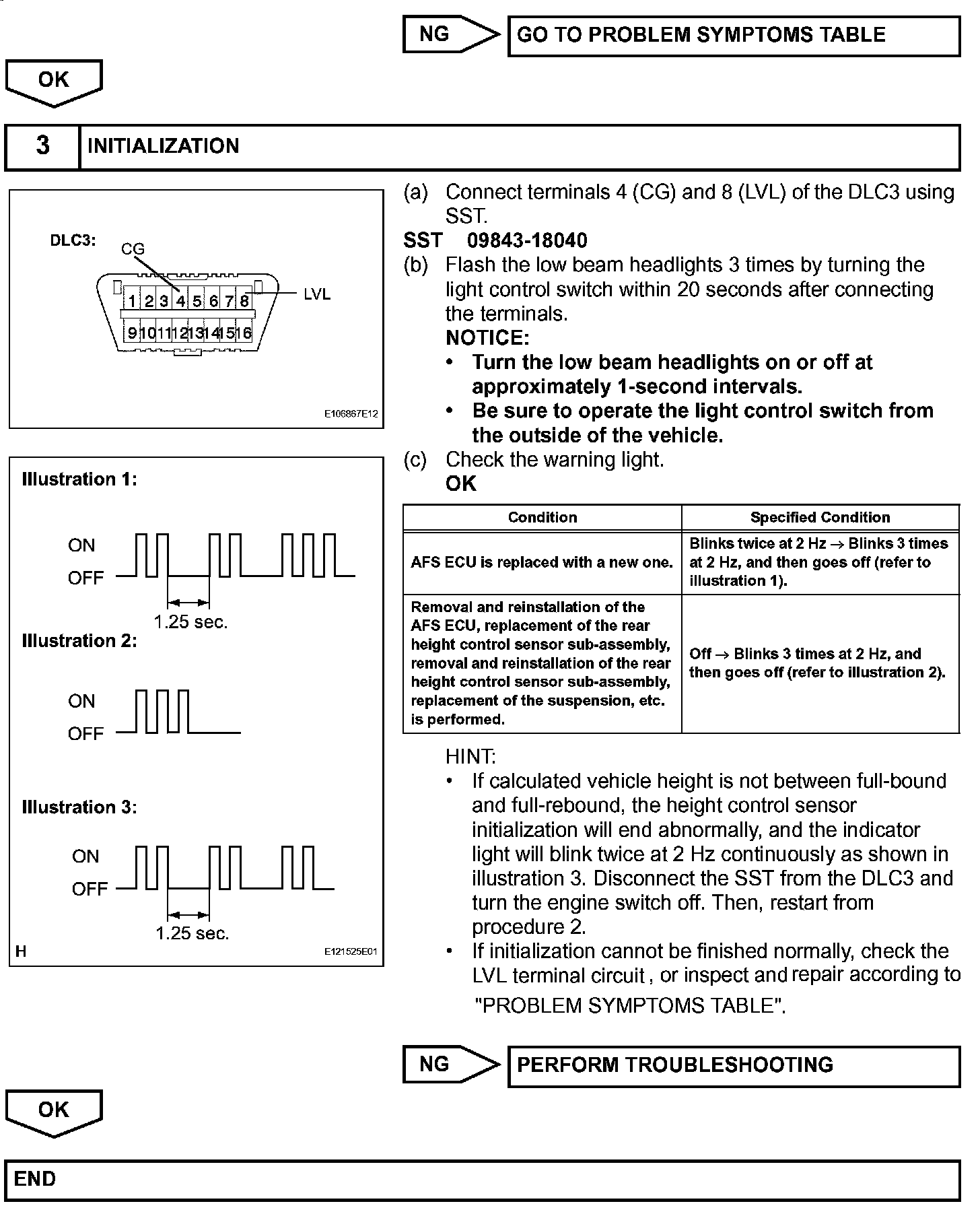

Step 2 (Continued)-3:

1. HEIGHT CONTROL SENSOR SIGNAL INITIALIZATION

NOTE:
- Initialize the height control sensor signal after the vehicle height changes due to replacement of the suspension or after performing such operations as removal and reinstallation or replacement of the rear height control sensor sub-assembly.
- When the AFS ECU is replaced, the initialization is also necessary.
- Adjust the headlight aim after initializing the AFS ECU.
- When a malfunction is detected in the headlight beam level control system, the height control sensor signal initialization is impossible. Perform troubleshooting before initialization.
