Air Flow Meter/Sensor: Service and Repair

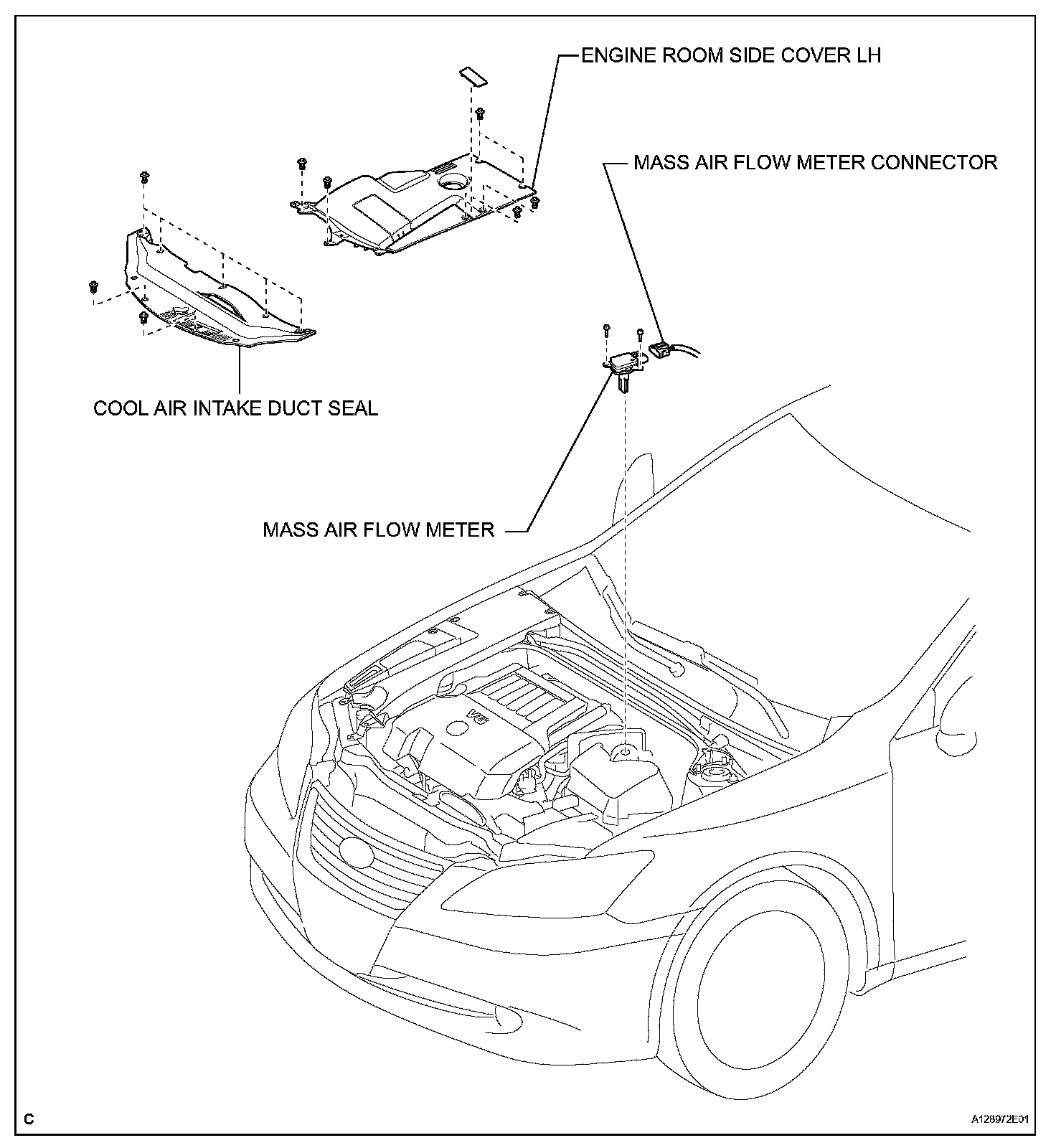

Mass Air Flow Meter:

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE ENGINE ROOM SIDE COVER LH
3. REMOVE MASS AIR FLOW METER




a. Disconnect the mass air flow meter connector.

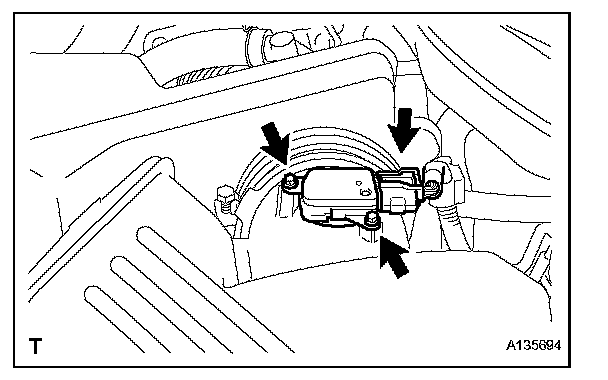

b. Remove the 2 screws and mass air flow meter.

INSTALLATION

1. INSTALL MASS AIR FLOW METER




a. Install the mass air flow meter with the 2 screws.
b. Connect the mass air flow meter connector.

2. INSTALL ENGINE ROOM SIDE COVER LH
3. INSTALL COOL AIR INTAKE DUCT SEAL
