Main Relay (Computer/Fuel System): Locations

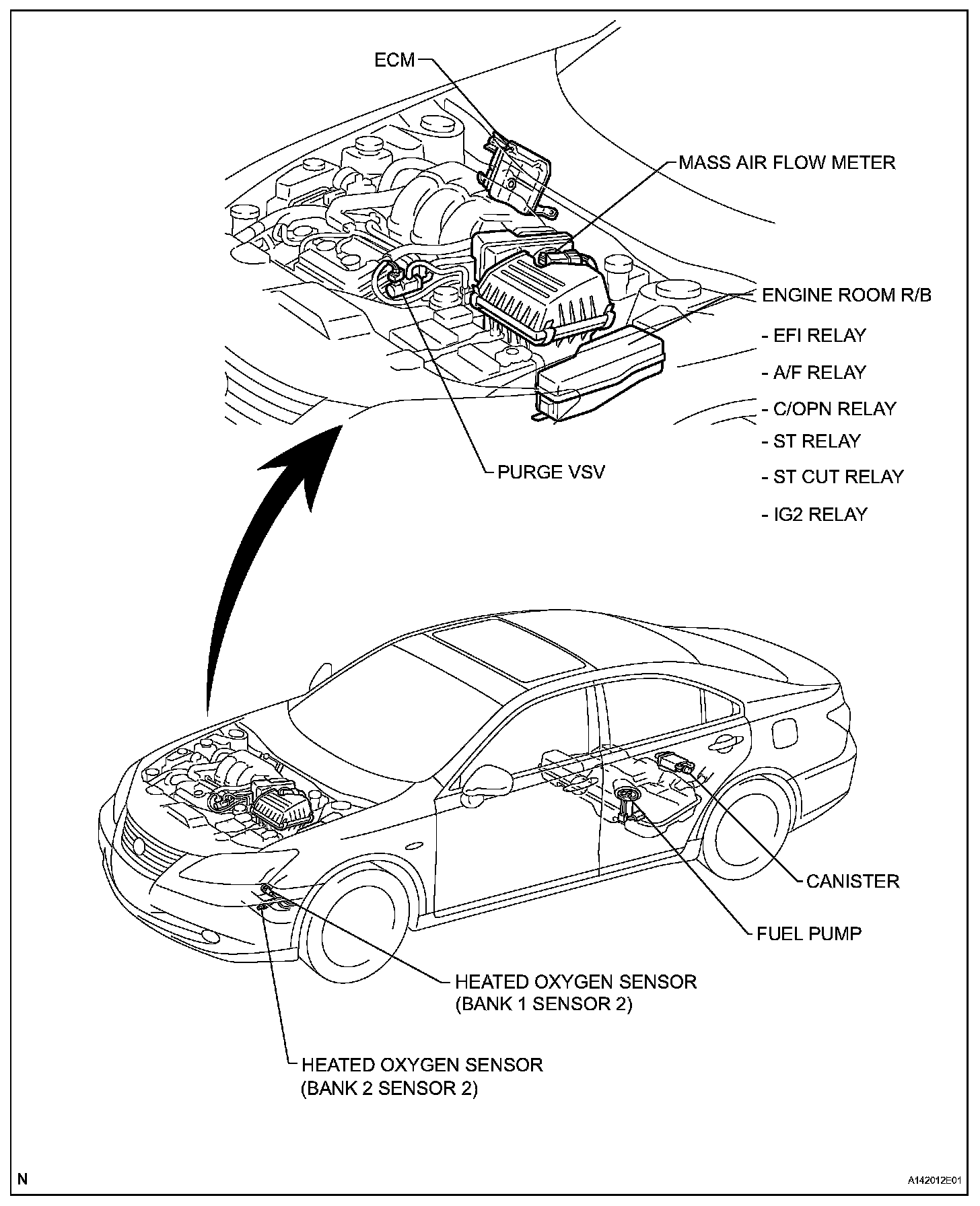

SFI System:

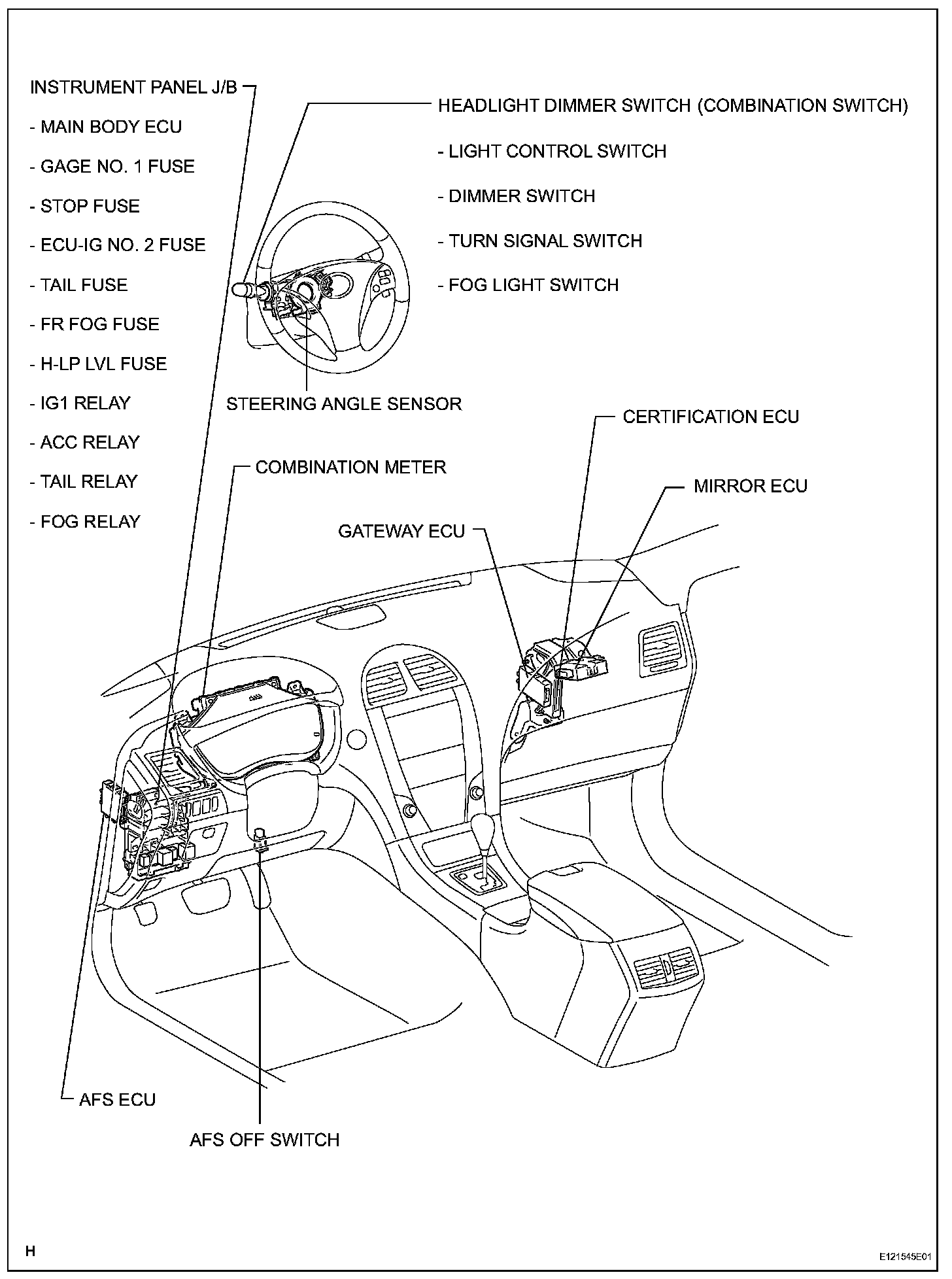

Lighting System:



Smart Access System With Push-Button Start:

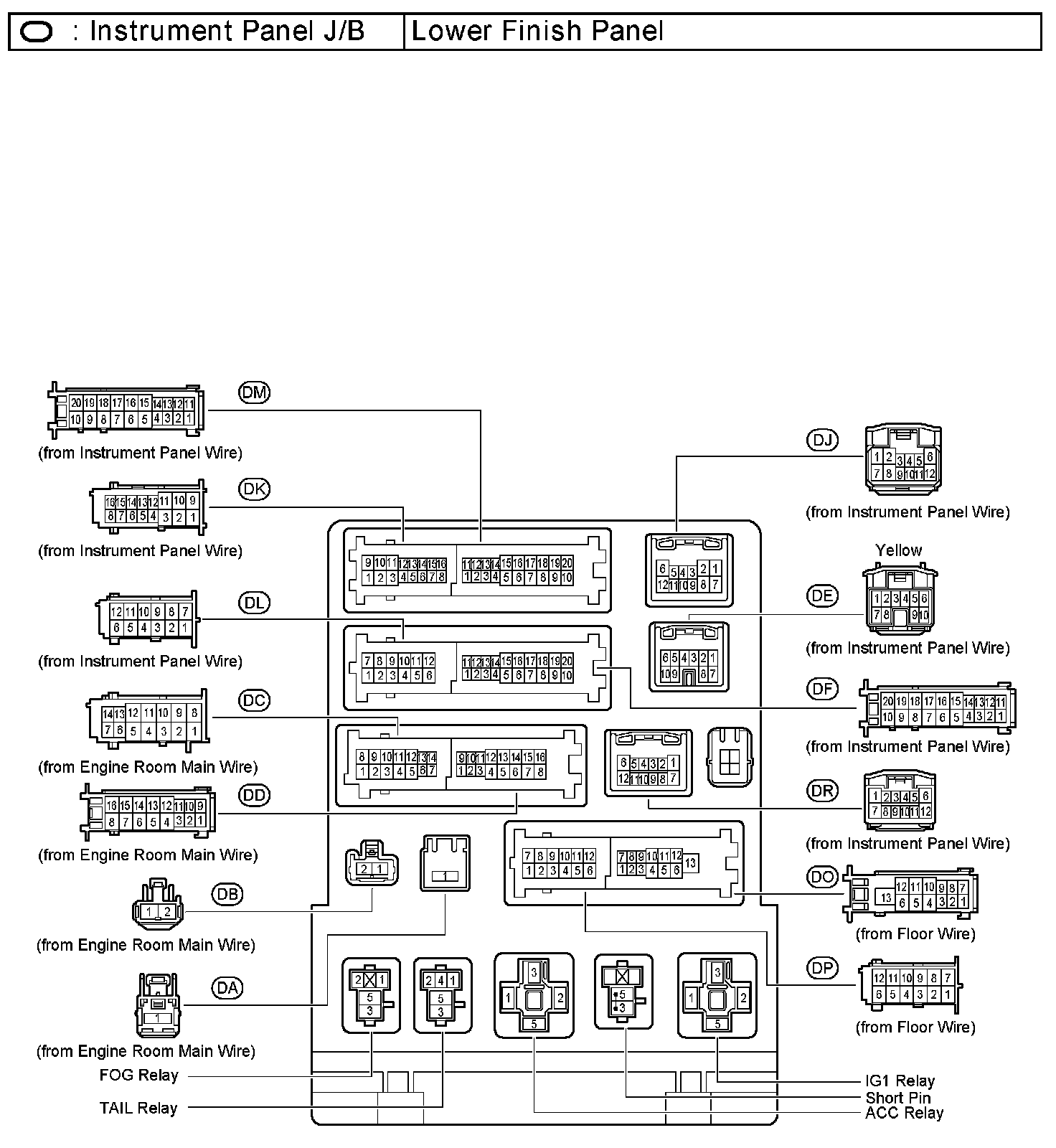

Instrument Panel J/B - Lower Finish Panel:
