System Specifications

CRANKSHAFT PULLEY
Torque 250 N*m (2,550 kgf*cm, 184 ft.*lbf)


NO. 2 CHAIN TENSIONER
Install the chain tensioner with the bolt
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)


NO. 3 CHAIN TENSIONER
Install the chain tensioner with the bolt
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)


NO. 1 CHAIN TENSIONER
Install the chain tensioner with the 2 bolts.
Torque 10 N*m (102 kgf*cm, 7 ft.*lbf)

Timing Cover

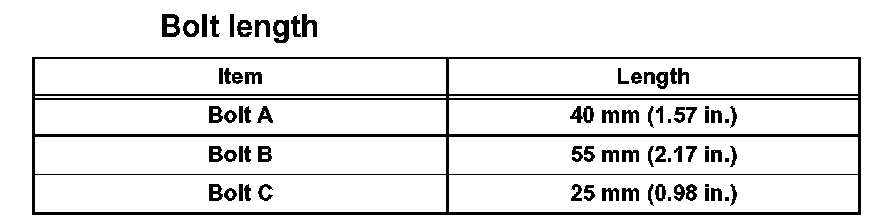

Bolt length:

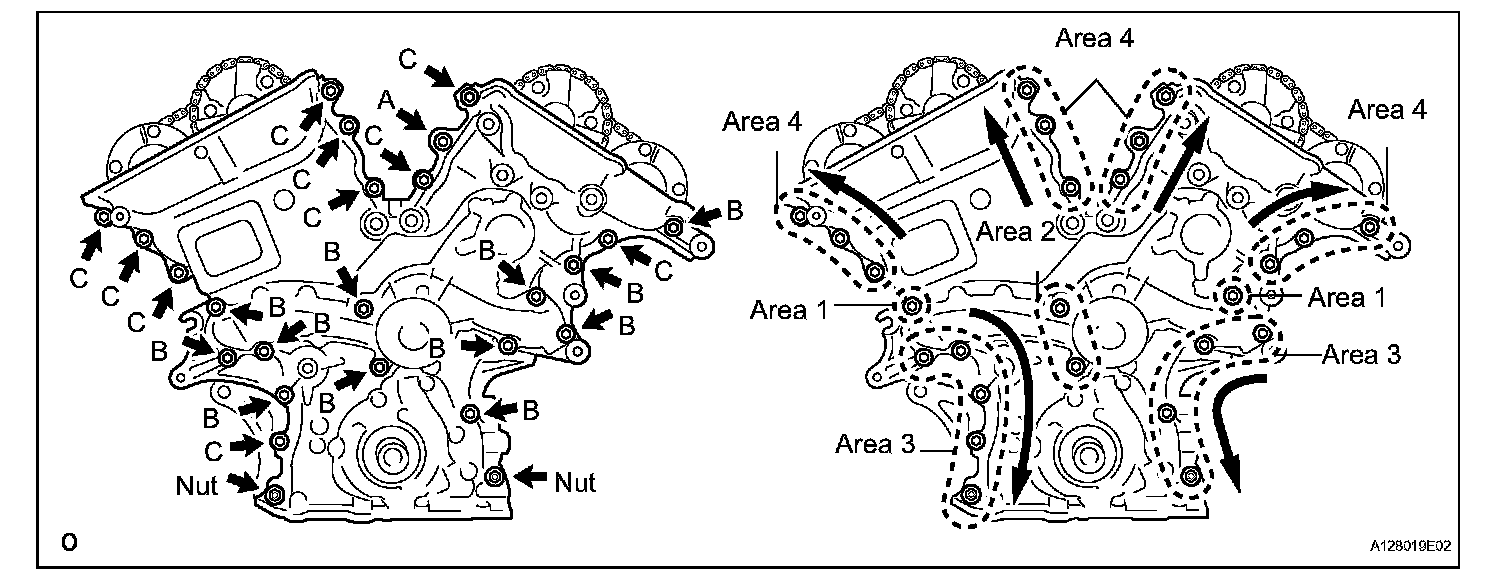

Fully tighten the bolts in this order: Area 1 and Area 2.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)

Fully tighten the bolts in Area 3.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)

HINT: Tighten the bolts and nuts in the order of upper to lower as shown in the illustration.

Fully tighten the bolts in Area 4.
Torque
Bolt A 43 N*m (438 kgf*cm, 32 ft.*lbf)
Except Bolt A 21 N*m (214 kgf*cm, 15 ft.*lbf)
