Automatic Light Control Sensor: Components

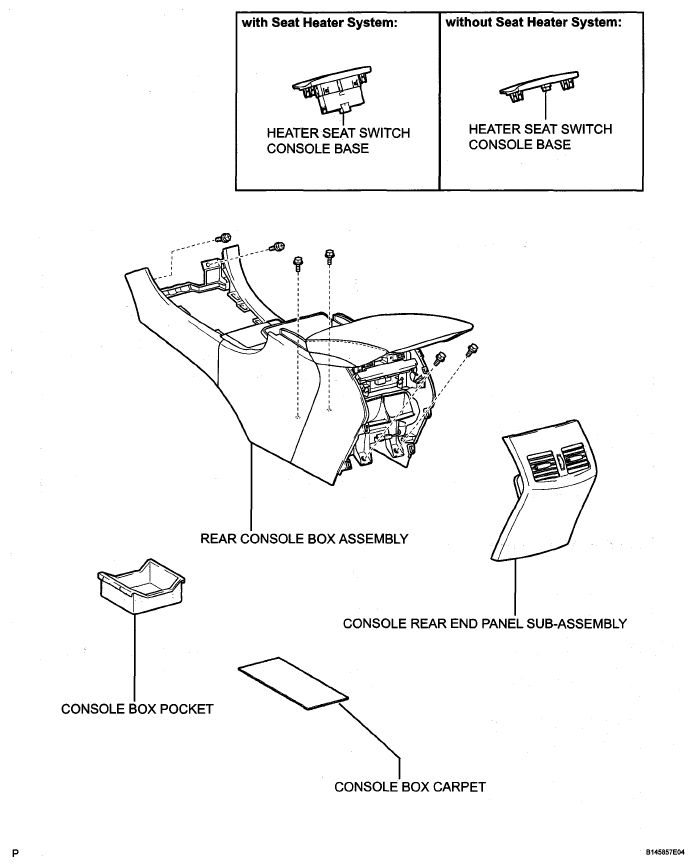

Fig 1: Automatic Light Control Sensor Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

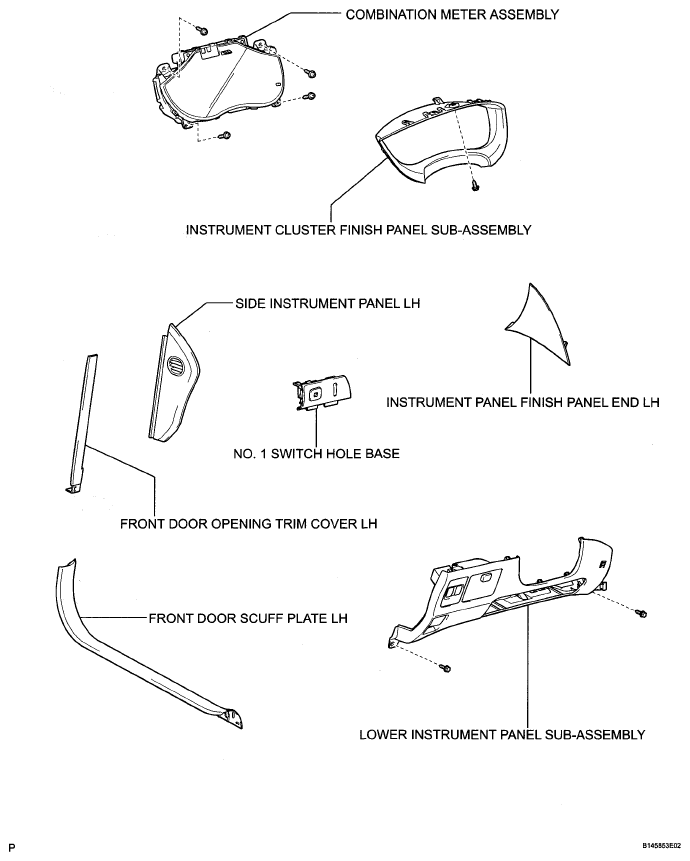

Fig 2: Identifying Automatic Light Control Sensor Components (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

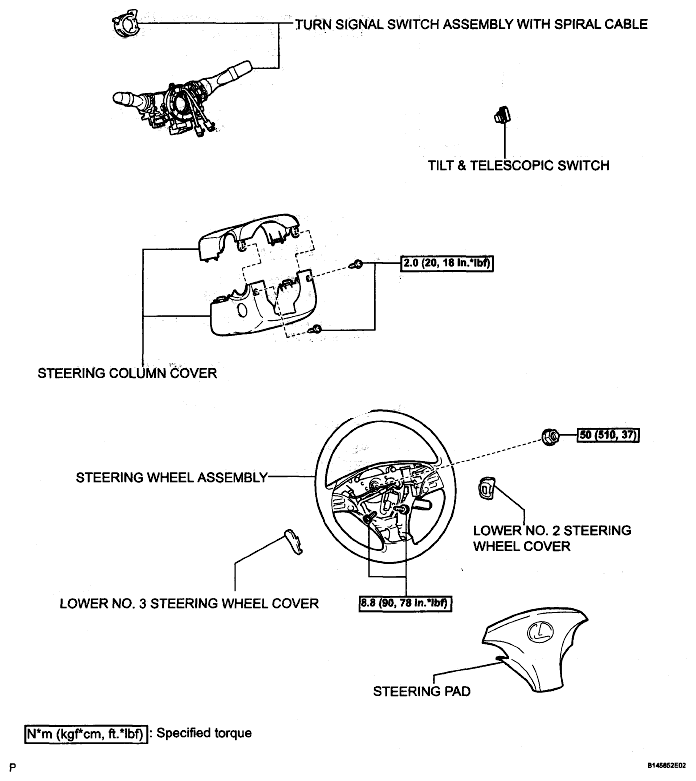

Fig 3: Automatic Light Control Sensor Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

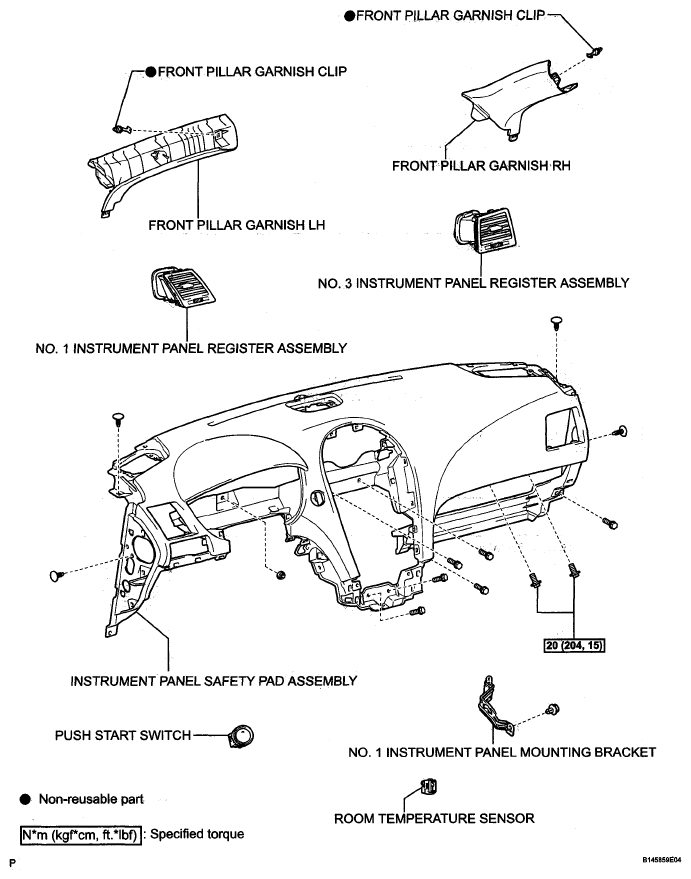

Fig 4: Identifying Automatic Light Control Sensor Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

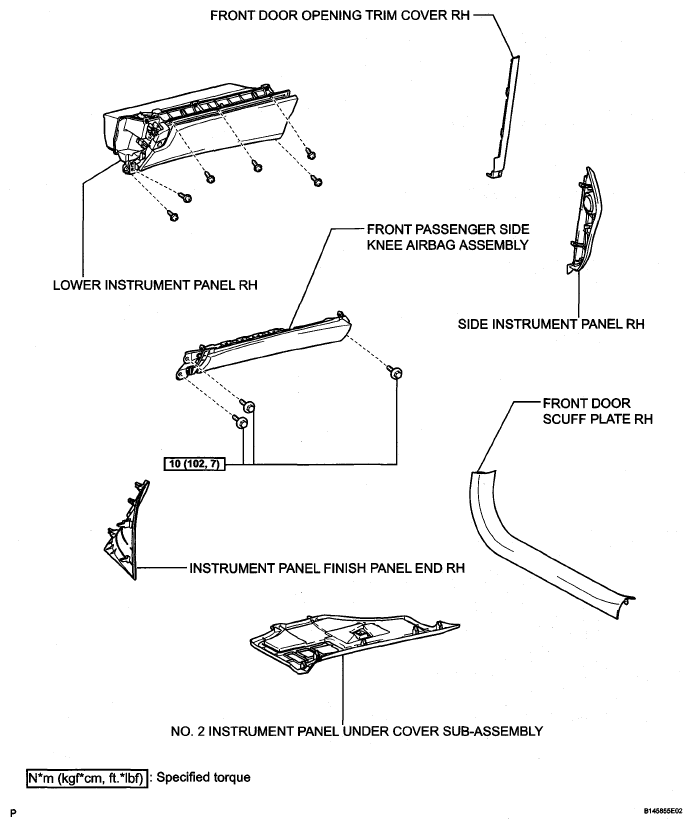

Fig 5: Identifying Automatic Light Control Sensor Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

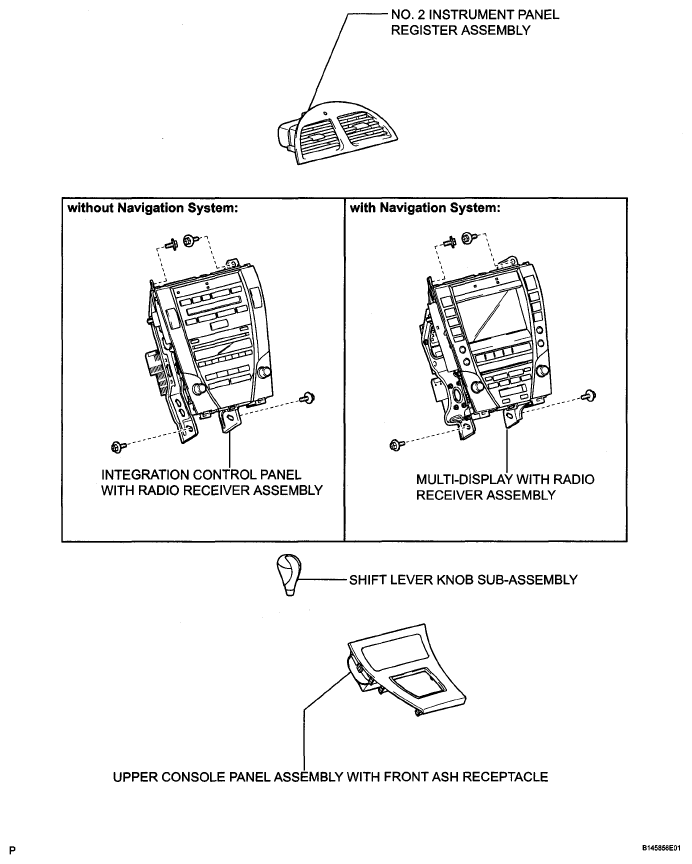

Fig 6: Identifying Automatic Light Control Sensor Components (6 Of 8)

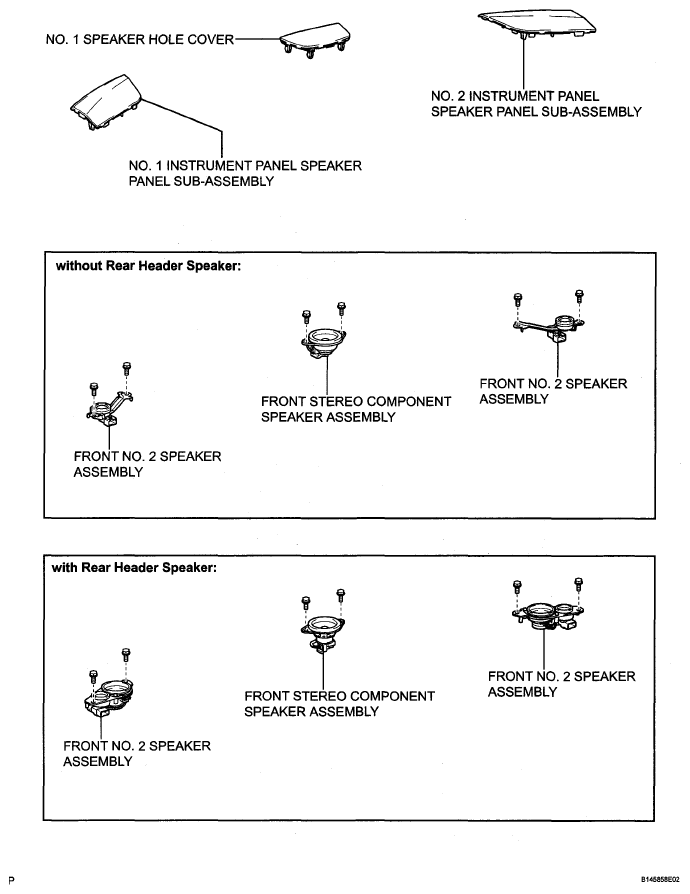

Fig 7: Automatic Light Control Sensor Replacement Components With Torque Specifications (7 Of 8)

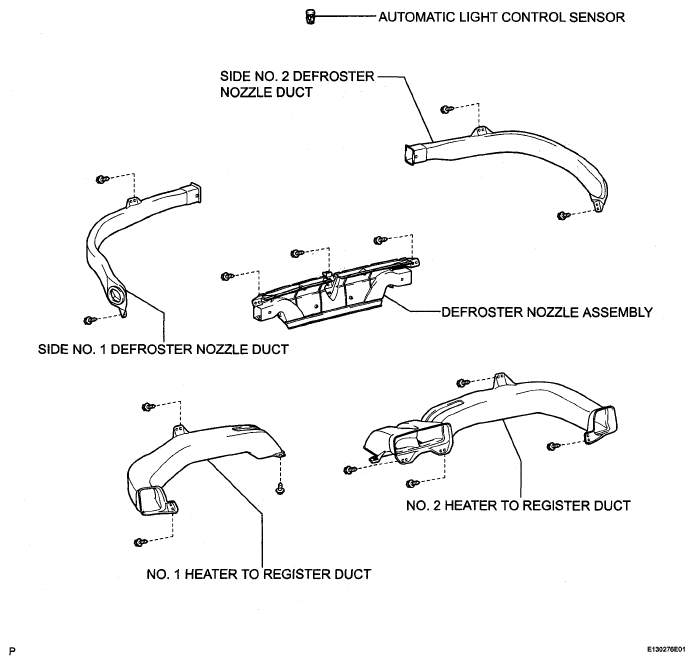

Fig 8: Identifying Automatic Light Control Sensor Components (8 Of 8)
