Adaptive Front-Lighting System: Notes

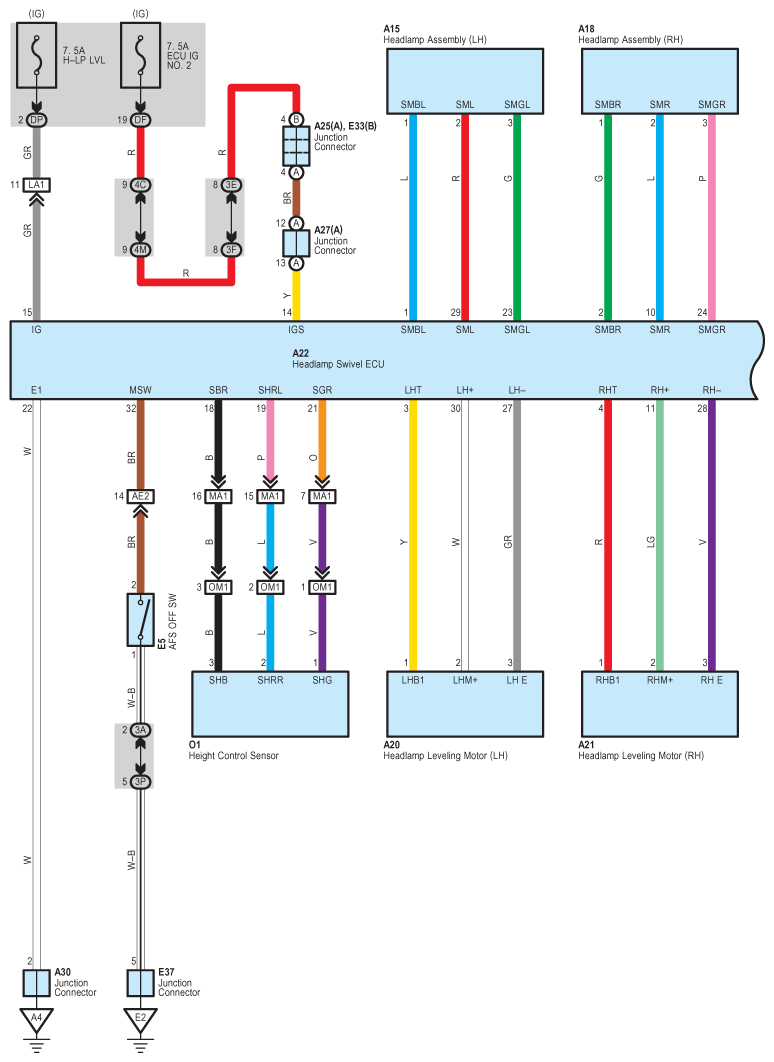

Fig 1: Adaptive Front-Lighting System Wiring Diagram (1 Of 4)
G08916816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

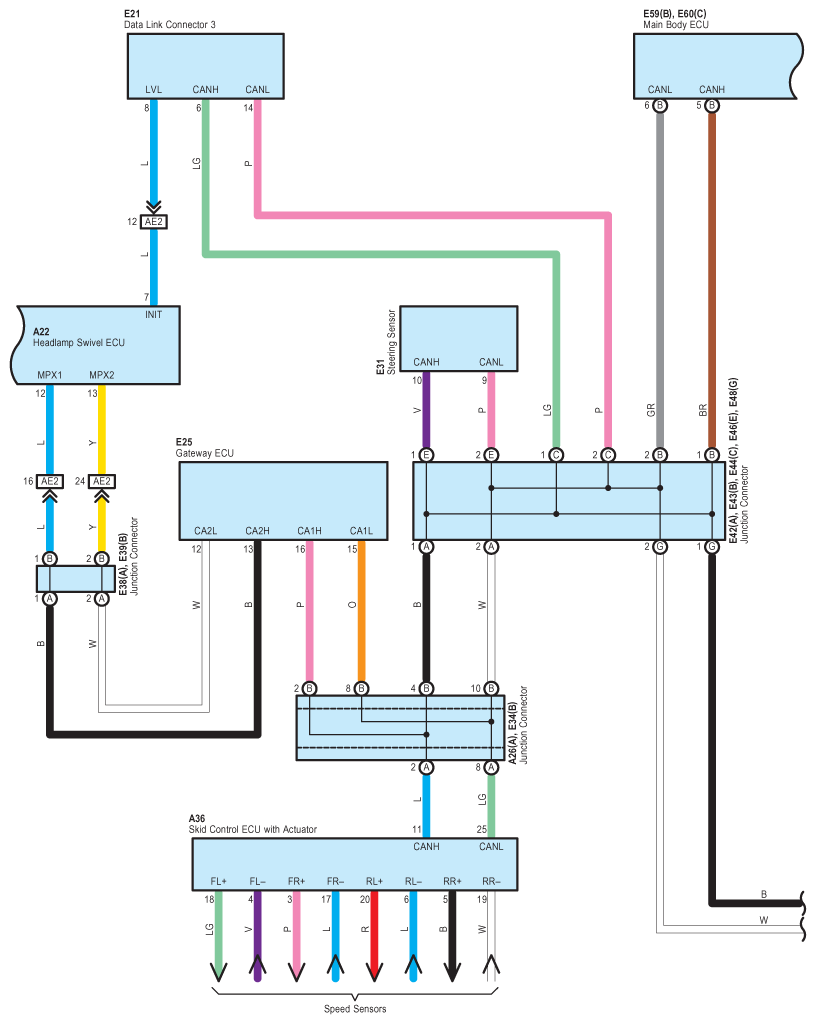

Fig 2: Adaptive Front-Lighting System Wiring Diagram (2 Of 4)
G08916817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

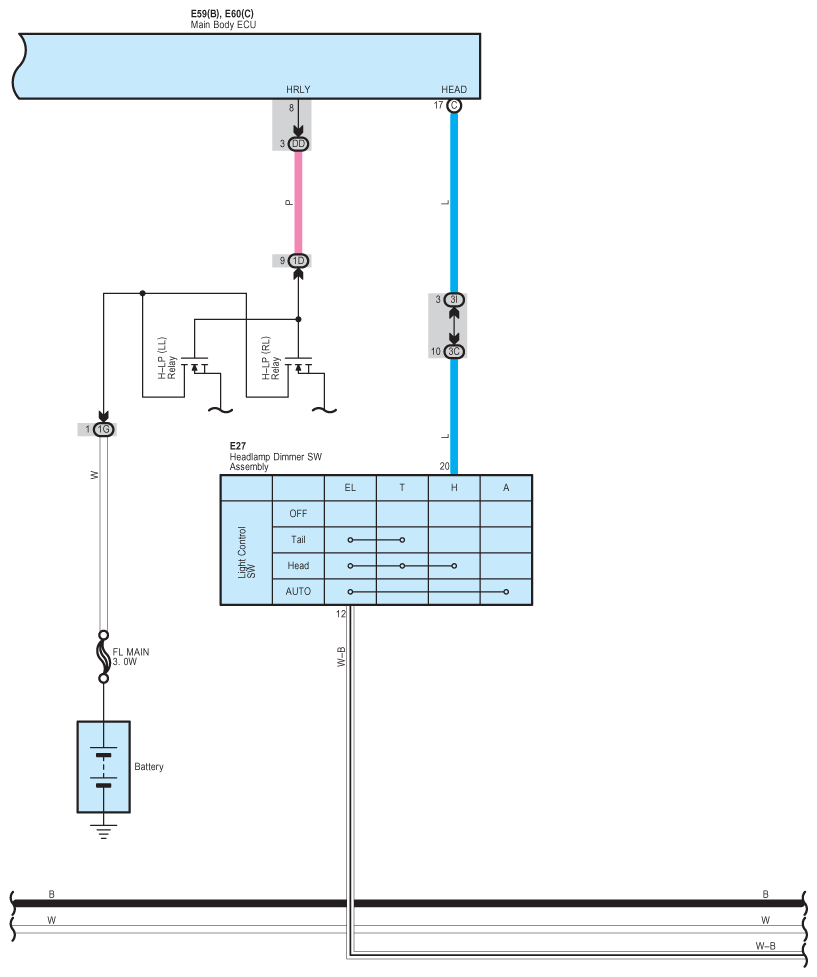

Fig 3: Adaptive Front-Lighting System Wiring Diagram (3 Of 4)
G08916818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

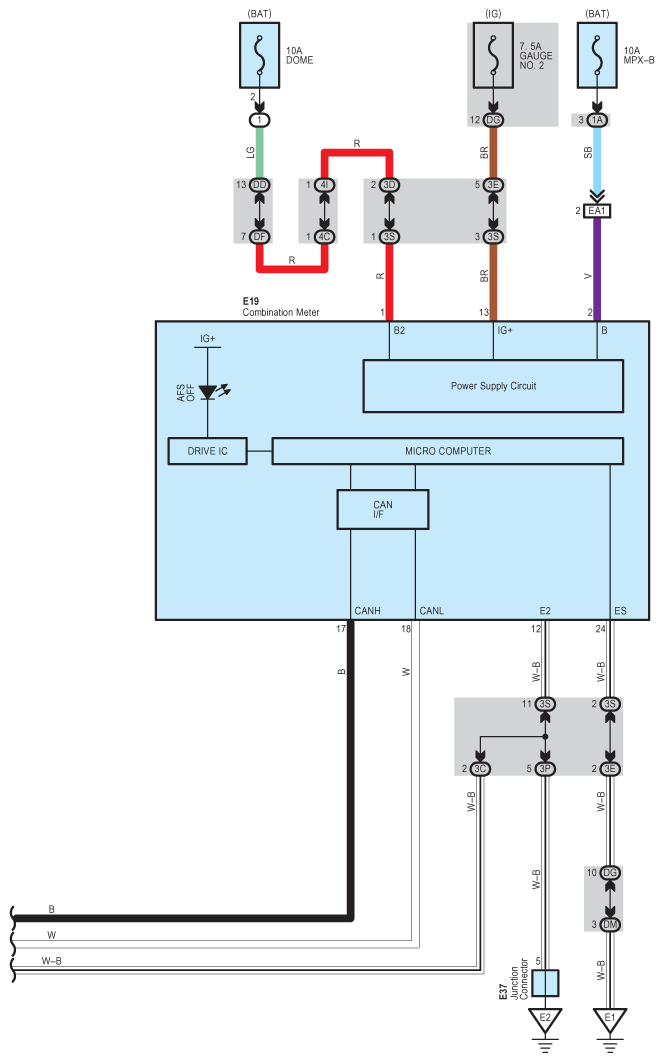

Fig 4: Adaptive Front-Lighting System Wiring Diagram (4 Of 4)
G08916819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
