System Diagram

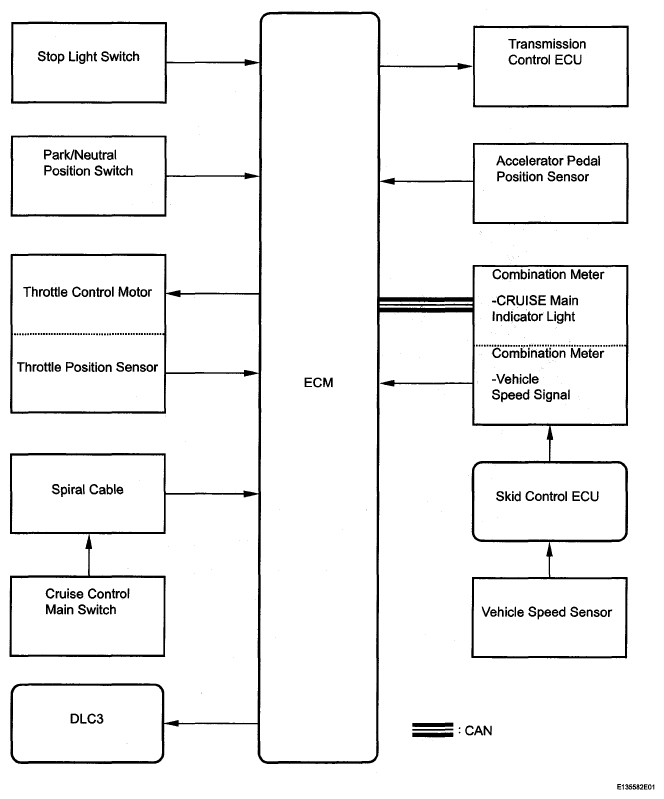

Fig 1: Cruise Control System Diagram
G05252143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table:

COMMUNICATION

Sender Receiver Signal Line
ECM Combination Meter ECU CRUISE main indicator operation signal CAN (V Bus)
