Distance Control ECU Power Source Circuit: Wiring Diagram

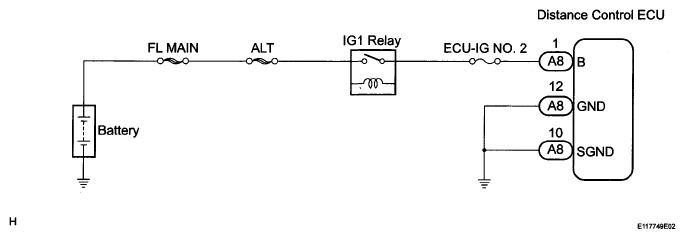

Fig 1: Distance Control ECU Power Source - Wiring Diagram
G05252219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
