Stereo Component Amplifier: Installation

  1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY
  2. INSTALL NO. 2 AMPLIFIER BRACKET
    1. Install the No. 2 amplifier bracket with the 2 bolts.

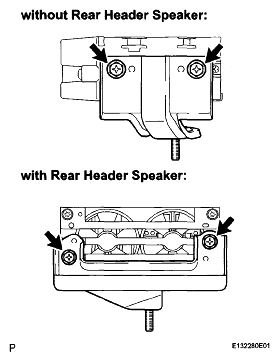

      Fig 1: Locating No. 2 Amplifier Bracket Bolts
      G05253036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 AMPLIFIER BRACKET
    1. Install the No. 1 amplifier bracket with the 2 bolts.

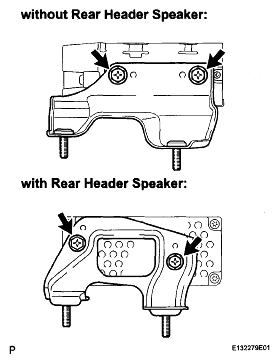

      Fig 2: Locating No.1 Amplifier Bracket Bolts
      G05253035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. Install the stereo component amplifier assembly with bracket with the 3 nuts.
    2. Connect each connector.

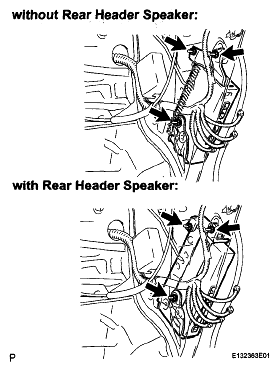

    Fig 3: Locating Stereo Component Amplifier Assembly With Bracket Nuts
    G05253039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL SEAT BELT CONTROL ECU (w/ Pre-collision System)  (See INSTALLATION )
  6. INSTALL CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System)  (See INSTALLATION )
  7. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH
    1. Install the luggage compartment inner trim cover RH with the 3 clips.
    Fig 4: Identifying Luggage Compartment Inner Trim Cover RH With Clips
    G05253040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR FLOOR FINISH PLATE  (See REASSEMBLY )
  9. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK  (See REASSEMBLY )
  10. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY  (See REASSEMBLY )
  11. INSTALL SPARE WHEEL COVER TRAY
  12. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
