DTC B2312 Driver Side Door Master Switch Malfunction: Wiring Diagram

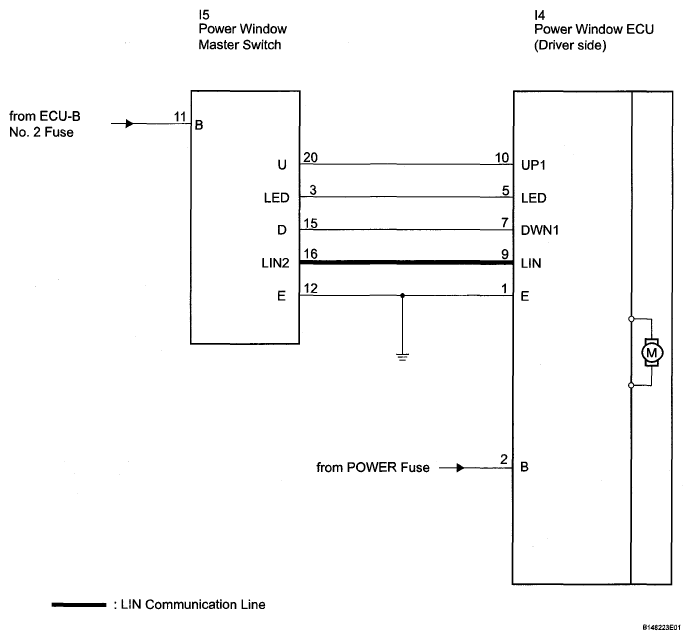

Fig 1: Driver Side Door Master Switch Malfunction - Wiring Diagram
G05253577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
